QF-150Xmax
ENVIRONMENTAL REMEDIATION WORKSTATION

Soil and groundwater remediation by in situ chemical injection.

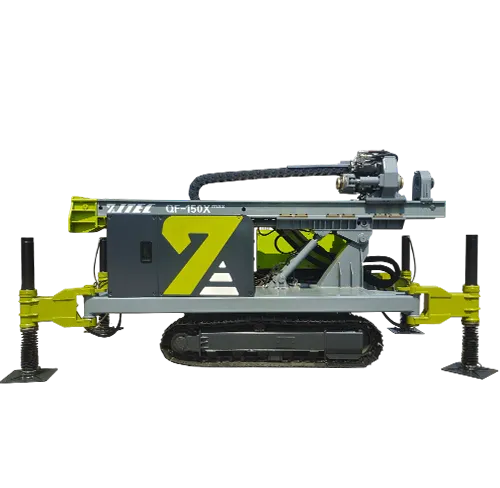

QF-150XmaxENVIRONMENTAL REMEDIATION WORKSTATION

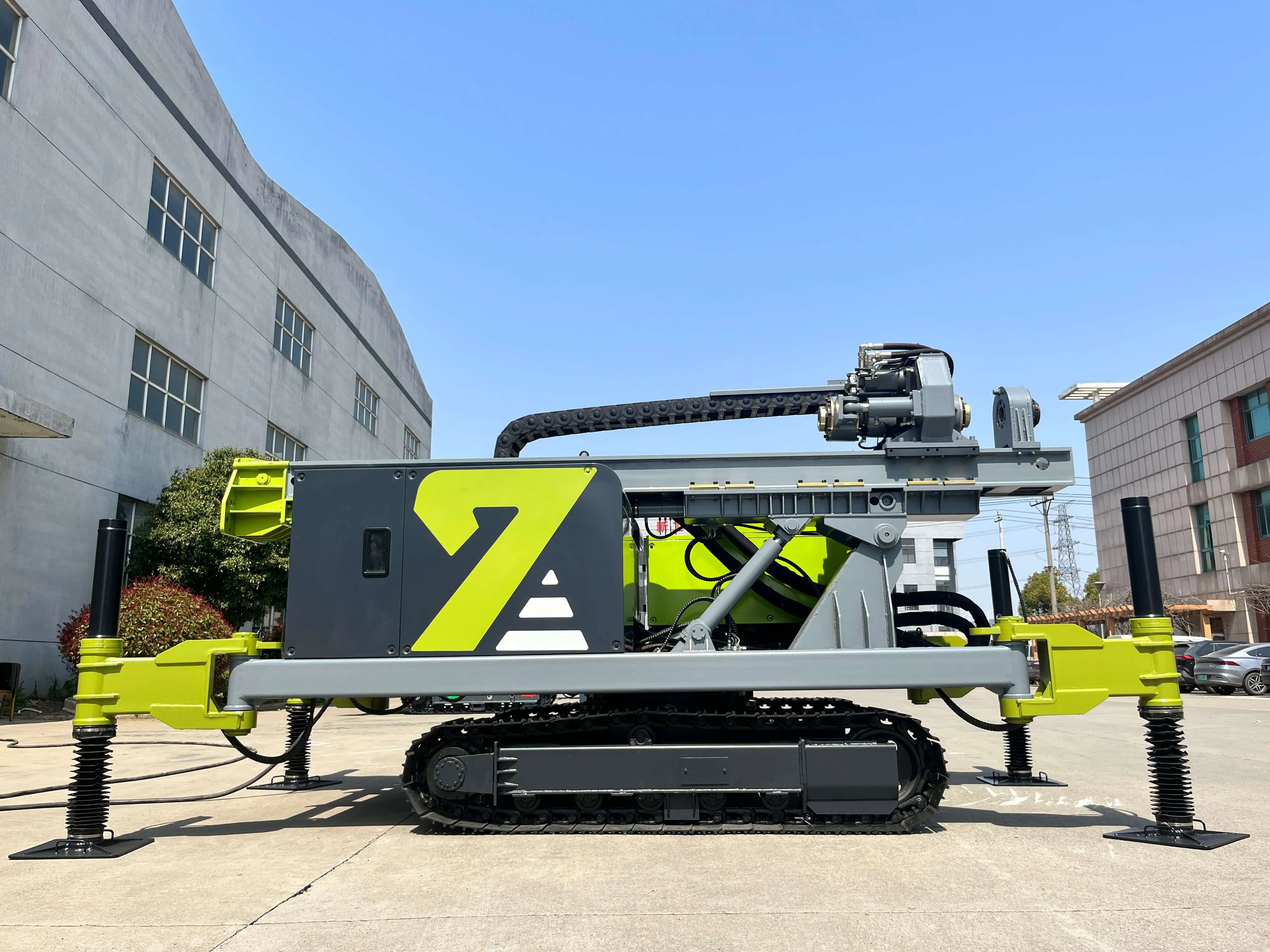

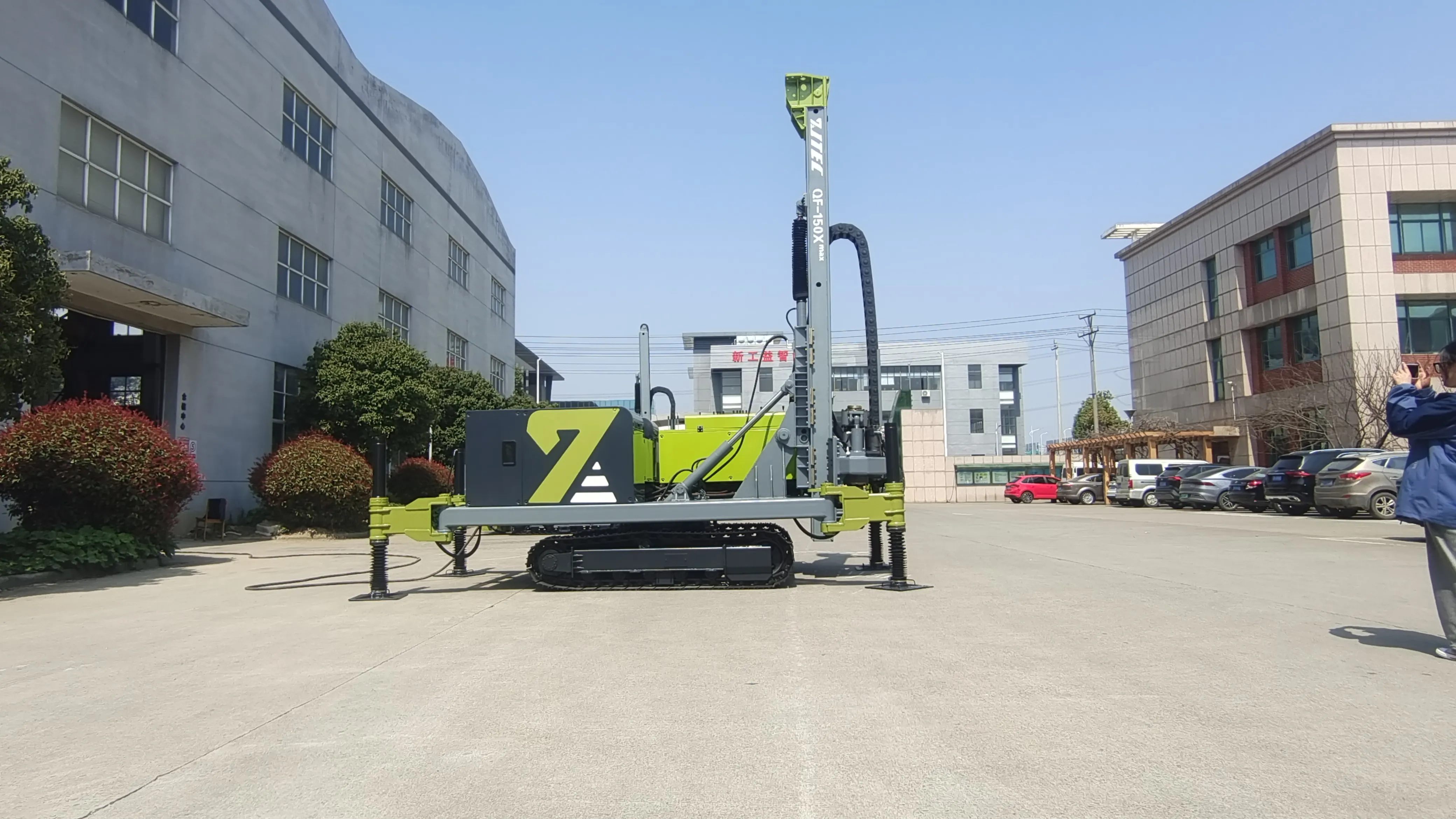

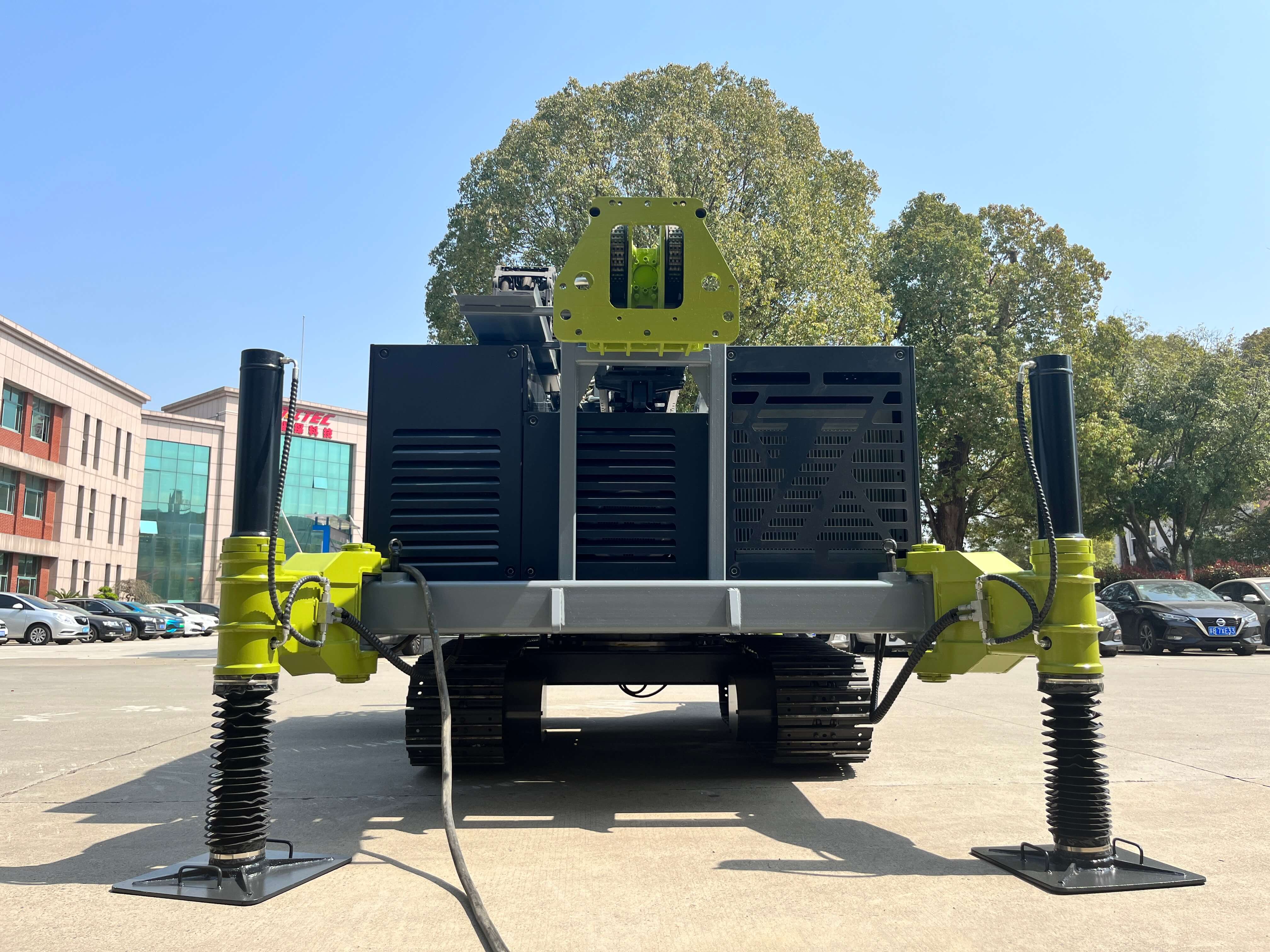

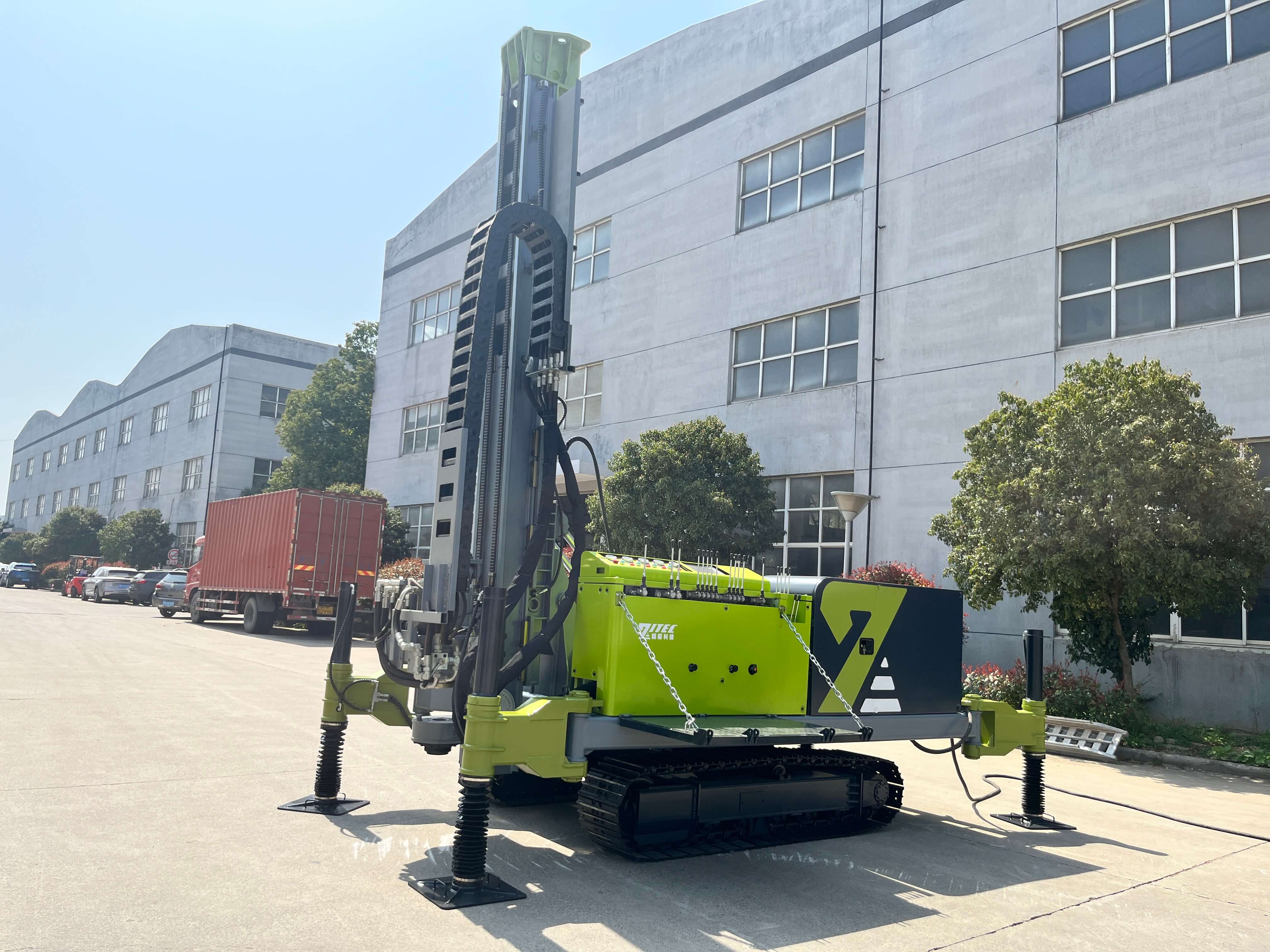

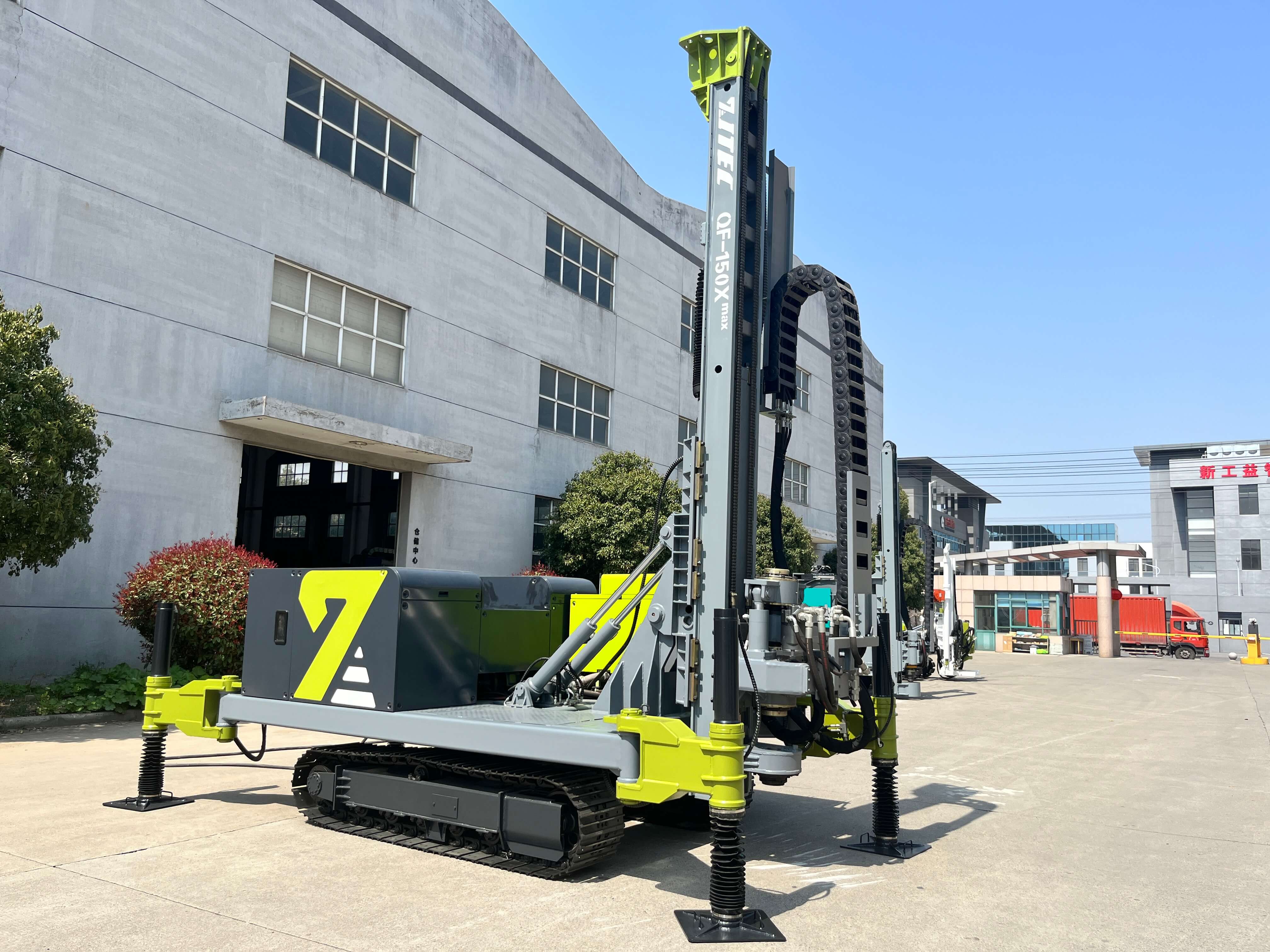

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NameQF-150XMAX
Spindle hole diameter (mm)φ60/φ73/φ76/φ89
Output torque (Nm)7000
Output speed (r/min)0~138
Power head stroke (mm)3400
Lifting force (kN)70
Pressurizing force (kN)36
Lifting speed (m/min)0~5 (adjustable)、7/23/30
Feeding speed (m/min)10/14/46/59
Slide frame stroke (mm)1200
Crawler chassis walking speed (km/h)0.58
Working dimensions (L×W×H)(mm)4270×3656×16935
Transport dimensions (L×W×H)(mm)5420×2180×2400
Weight of drilling rig (kg)7100
Motor input power (kW)55+18.5+3
Max. pile depth (m)14.5


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
