XT-15E
FARMLAND SAMPLING ROBOT

Widely used in Farmland plant protection and intelligent agriculture.

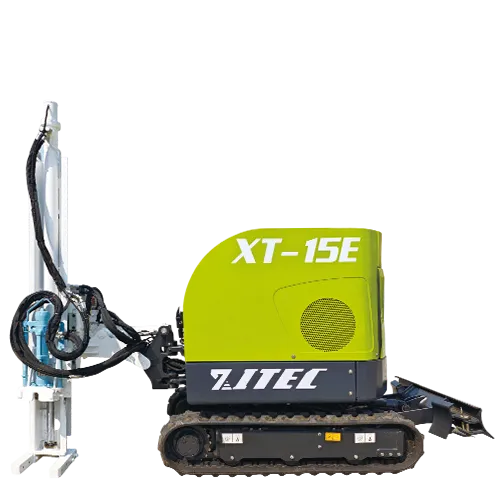

XT-15EFARMLAND SAMPLING ROBOT

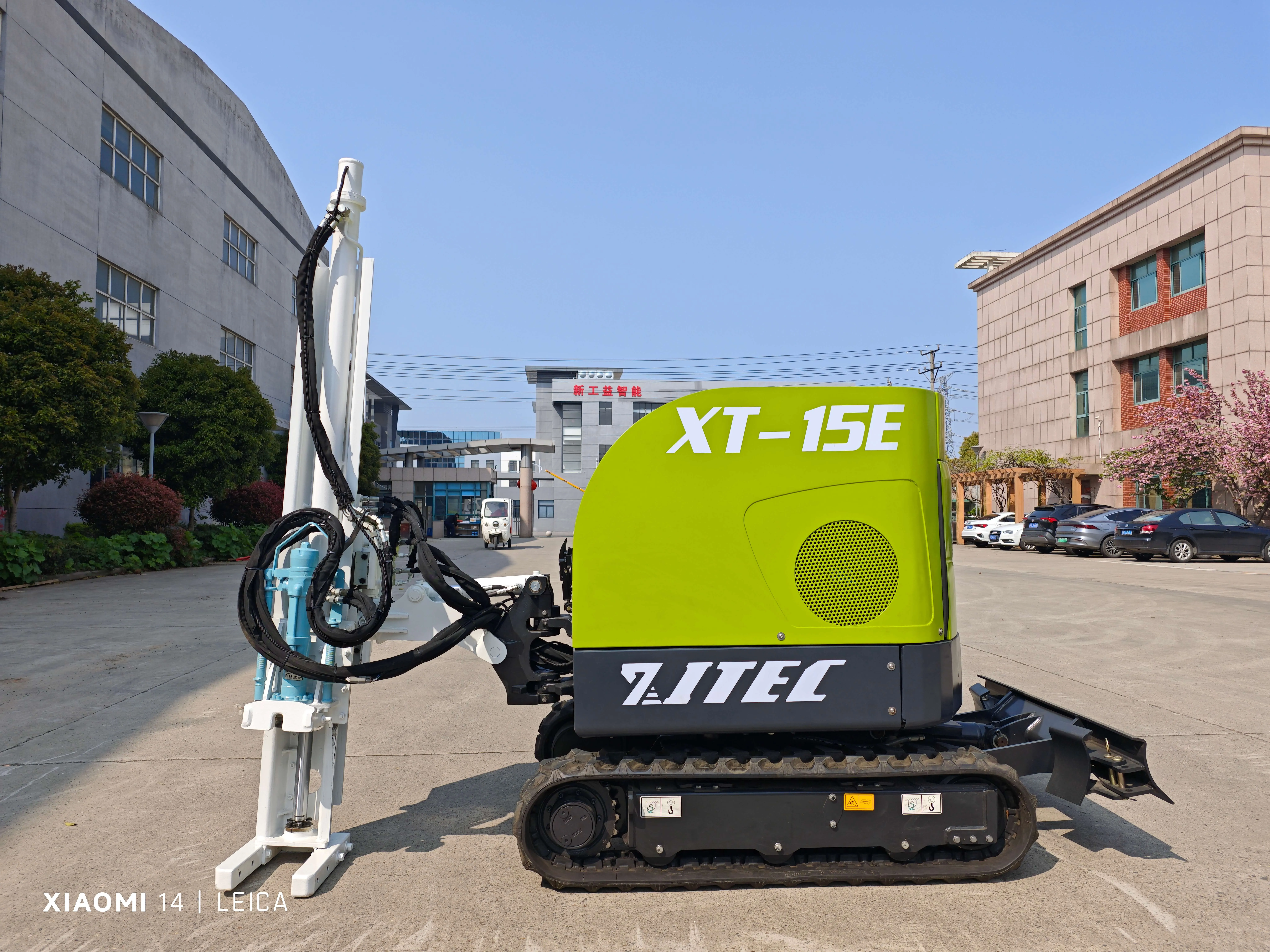

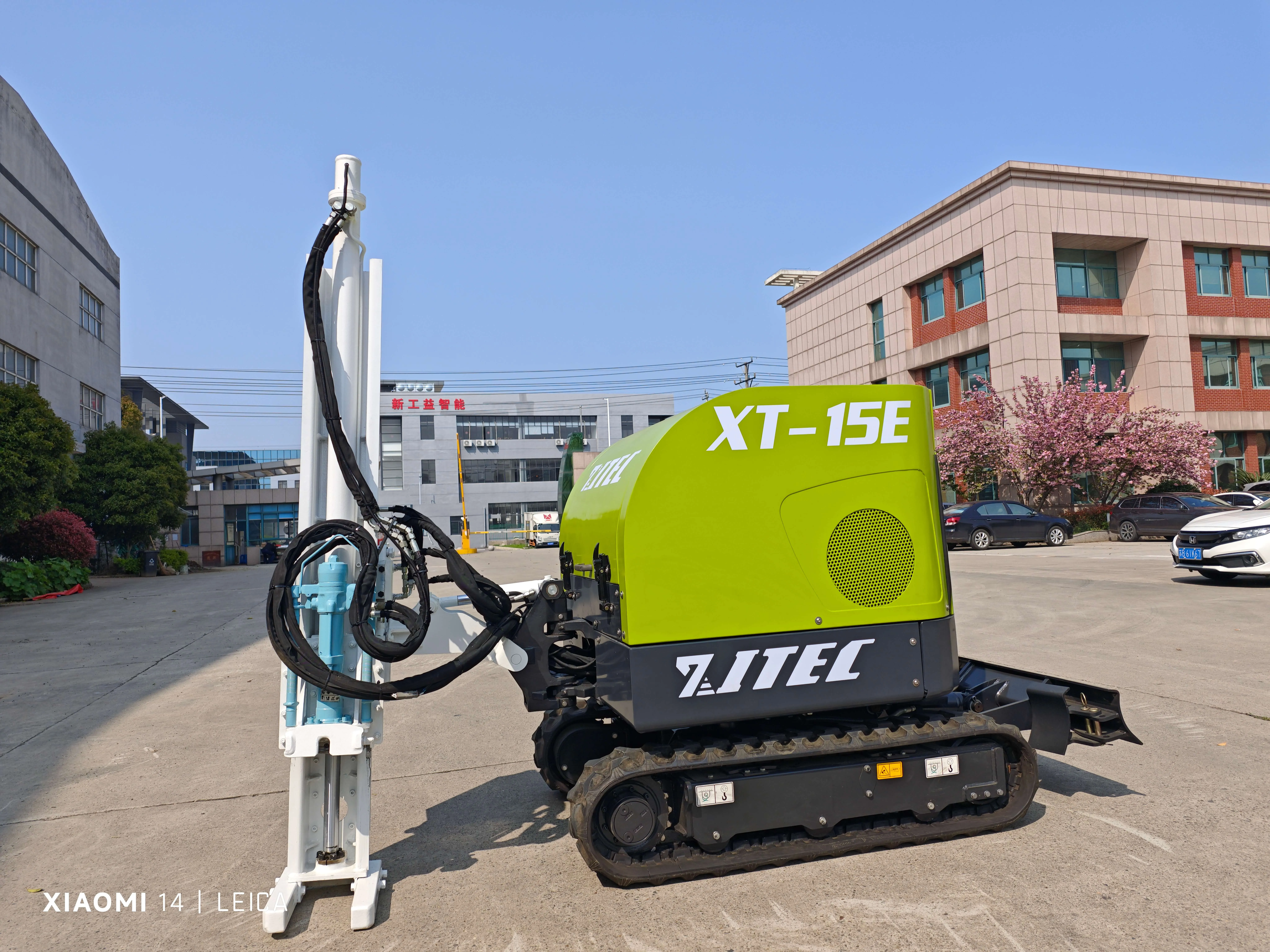

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEXT-15E
Drilling diameter(mm)≤φ60
Drilling depth(m)≤12
Stroke of probe(mm)1500
Probe tilt angle(°)70~100
Sounder deflection angle(°)±18
Rated lifting force(kN)60
Rated pressure(kN)30
Impact frequency(bpm)1700
Impact power(kw)7.5
Traveling speed(km/h)2/4
Climbing capacity(°)30
Total width of track(mm)1080/1400
Width of track plate(mm)230
Track length(mm)1585
Minimum ground clearance(mm)145
Working height(mm)3500
Transportation dimension(L×W×H)(mm)3065×1080×1800
Weight(kg)1900
Ground specific pressure(kg/cm2)0.34


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.

WHEREVER THERE IS ENGINEERING IN THE WORLD
THERE IS INTELLIGENT EQUIPMENT OF XITEC.
