TOP DRVE DRILLING TOOL

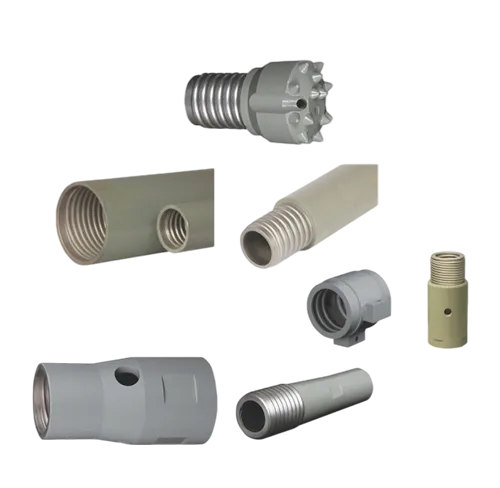

Top Drive Drilling Tools form a complete drilling assembly for top-drive rigs, comprising drill rod bits, drill rods and casings, water injection shafts and sleeves, and inner/outer flushing heads, available with options such as UN-type sealing rings and left-hand (L) / right-hand (R) threads. Manufactured from high-strength alloy with precision threaded connections and an integrated water-injection flushing design, the tools deliver efficient rock breaking and smooth cuttings removal with high wear and torque resistance and reliable sealing, suiting a wide range of formations and demanding deep-hole conditions.

TOP DRVE DRILLING TOOL

PARAMETERS

Name Drawing No. Specifications Note
Φ219 Casing pipe MG219-1500/2000-1(-0) Φ219 * 1500/2000 Band (-0) is a connector type
Φ168 Casing pipe MG168-1500/2000-1(-0) Φ168 * 1500/2000
Φ146 Casing pipe MG146-1500/2000-1(-0) Φ146 * 1500/2000
Φ133 Casing pipe MG133-1500/2000-1(-0) Φ133 * 1500/2000
Φ102 Casing pipe MG102-1500/2000-1(-0) Φ102 * 1500/2000
Φ89 Drill pipe MG89-1500/2000-1(-0) Φ89 * 1500/2000
Φ76 Drill pipe MG76-1500/2000-1(-0) Φ76 * 1500/2000
Φ73 Drill pipe MG73-1500/2000-1(-0) Φ73 * 1500/2000
Φ219 Casing bit MT219-235-1-0 Φ235 * 210 Outer diameter and structure can be customized
Φ168 Casing bit MT168-182-1-0 Φ182 * 200
Φ146 Casing bit MT146-156-1-0 Φ156 * 200
Φ133 Casing bit MT133-142-1-0 Φ142 * 190
Φ102 Casing bit MT102-180-1-0 Φ180 * 255
Φ89 Drill rod drill bit MT89-110-1-0 Φ110 * 200
Φ76 Drill rod drill bit MT76-100-1-0 Φ100 * 150
Φ73 Drill rod drill bit MT73-95-1-0 Φ95 * 185
170 Water injection jacket MST-170-1-1-0 Φ218 * 190 UN type sealing ring
170 * 195 * 16/4Φ
140 Water injection jacket MST-140-1-1-0 Φ185 * 195
170 Water injection shaft MSZ-112-100-145-1/2-L/R Φ170 * 380 Yongda 80 drill tail
170 Water injection shaft MSZ-98-100-145-1/2-L/R Φ170 * 380 Guangtai 10 drill tail
140 Water injection shaft MSZ-69-78-122-1/2-L/R Φ140 * 390 Yongda 60 drill tail
102 Internal slag discharge head MZN-100-88-1/2-L/R Φ102 * 370 1-wave buckle
2-ladder buckle
L-left-handed
R-right-handed
89 Internal slag discharge head MZN-100-75-1/2-L/R Φ100 * 450
76 Internal slag discharge head MZN-100-63-1/2-L/R Φ100 * 370
219 External slag discharge head MZN-145-204-1/2-L/R Φ219 * 440
146 External slag discharge head MZN-145-134-1/2-L/R Φ185 * 430
136 External slag discharge head MZN-145-122-1/2-L/R Φ175 * 340


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
