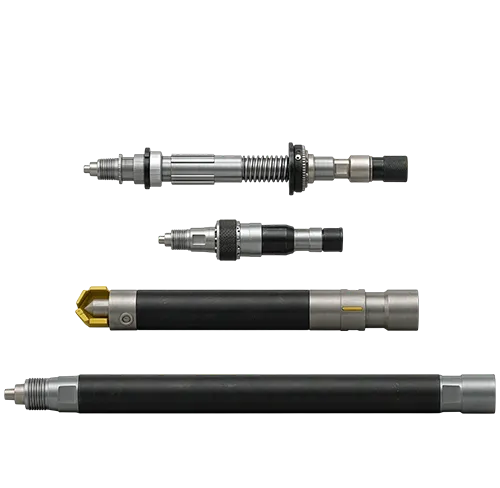

JET GROUTING DRILLING TOOL

Jet Grouting Drilling Tool series is a complete tooling system for high-pressure jet grouting, covering jet grouting bits, jet grouting rods, core tube assemblies, flow dividers, mixing tools and nozzle components, available in 50 / 60 / 73 / 89 series to suit single-, double- and triple-tube (single-, double- and triple-fluid) jet grouting processes. Built from high-strength alloy with precision sealing and optimized flow channels, the tools are pressure- and wear-resistant with stable slurry/air distribution and well-matched bit-and-rod combinations, making them ideal for water-stop curtains, ground improvement and excavation support in a wide range of formations.

JET GROUTING DRILLING TOOL

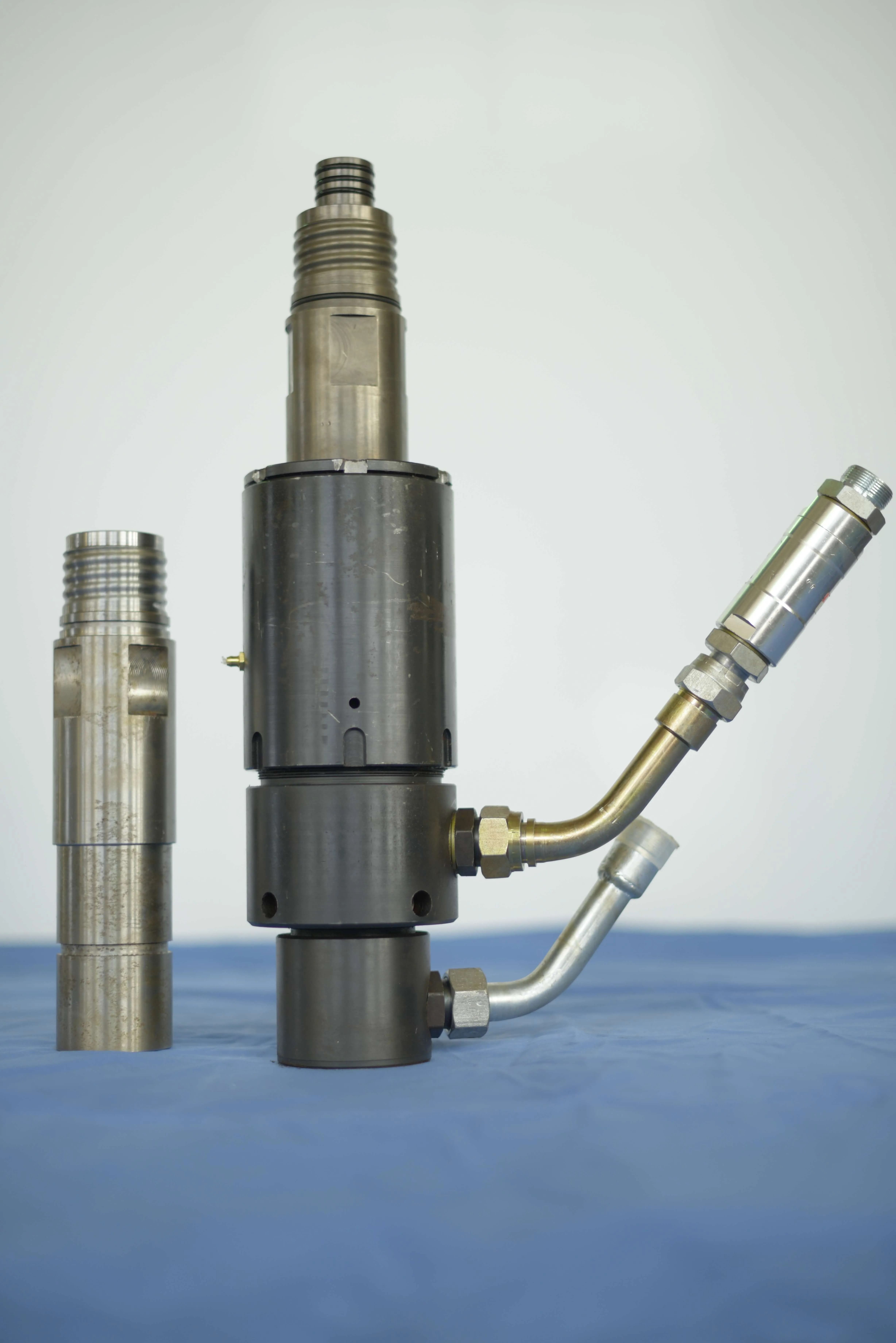

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NameDrawing No.SpecificationsNote
50 Single fold telescopic jet grouting nozzle core tube assemblyXM-50-1A-0For XP20A drilling rig
50 Single universal joint telescopic jet grouting nozzle core tube assemblyXM-50-1B-0Used for XP20A drilling rig
or for anchor drilling rig modified
60 Double telescopic jet grouting nozzle core tube assemblyXM-60-2A-0For XP20A drilling rig
60 Double universal joint telescopic jet grouting nozzle core tube assemblyXM-60-2B-0Used for XP20A drilling rig
or for anchor drilling rig modified
73 Double telescopic jet grouting nozzle core tube assemblyXM-73-2A-0
89 Triple telescopic jet grouting nozzle core tube assemblyXM-89-3A-0For XP20A drilling rig
89 Triple double high pressure jet grouting spray core tube assemblyXM-89-3B-0Used for XP20A drilling rig
or for anchor drilling rig modified

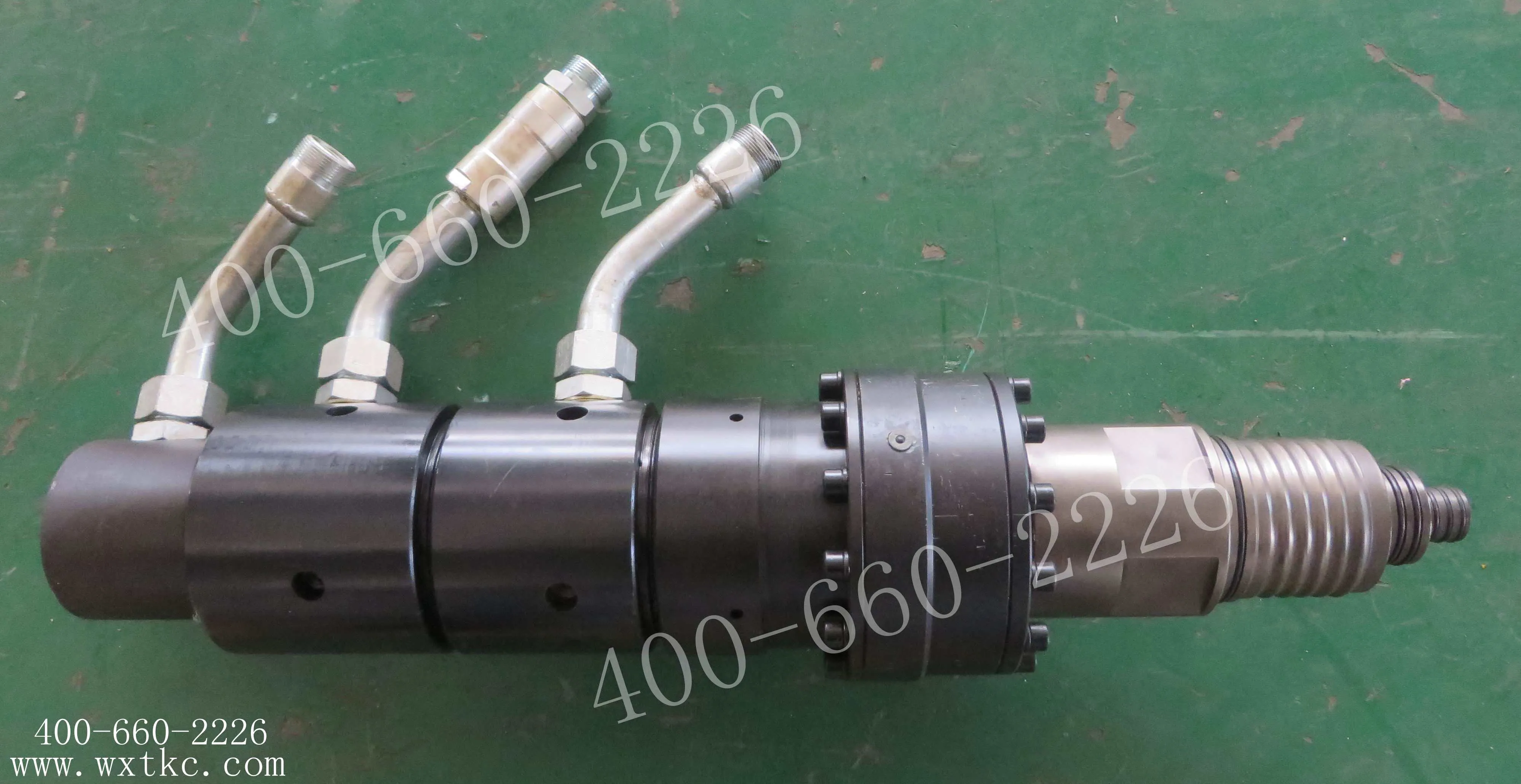

50 Single splitterG6150-0
60 Double splitterG6260-0
73 Double splitterG6273-0
73 Triple splitterG6373-0
89 Triple diverterG6389-0
89 Triple double high pressure diverterG6389G-0
60 Anti loosening deviceG8260-0
73 Anti loosening deviceG8373-0
89 Anti loosening deviceG8389-0

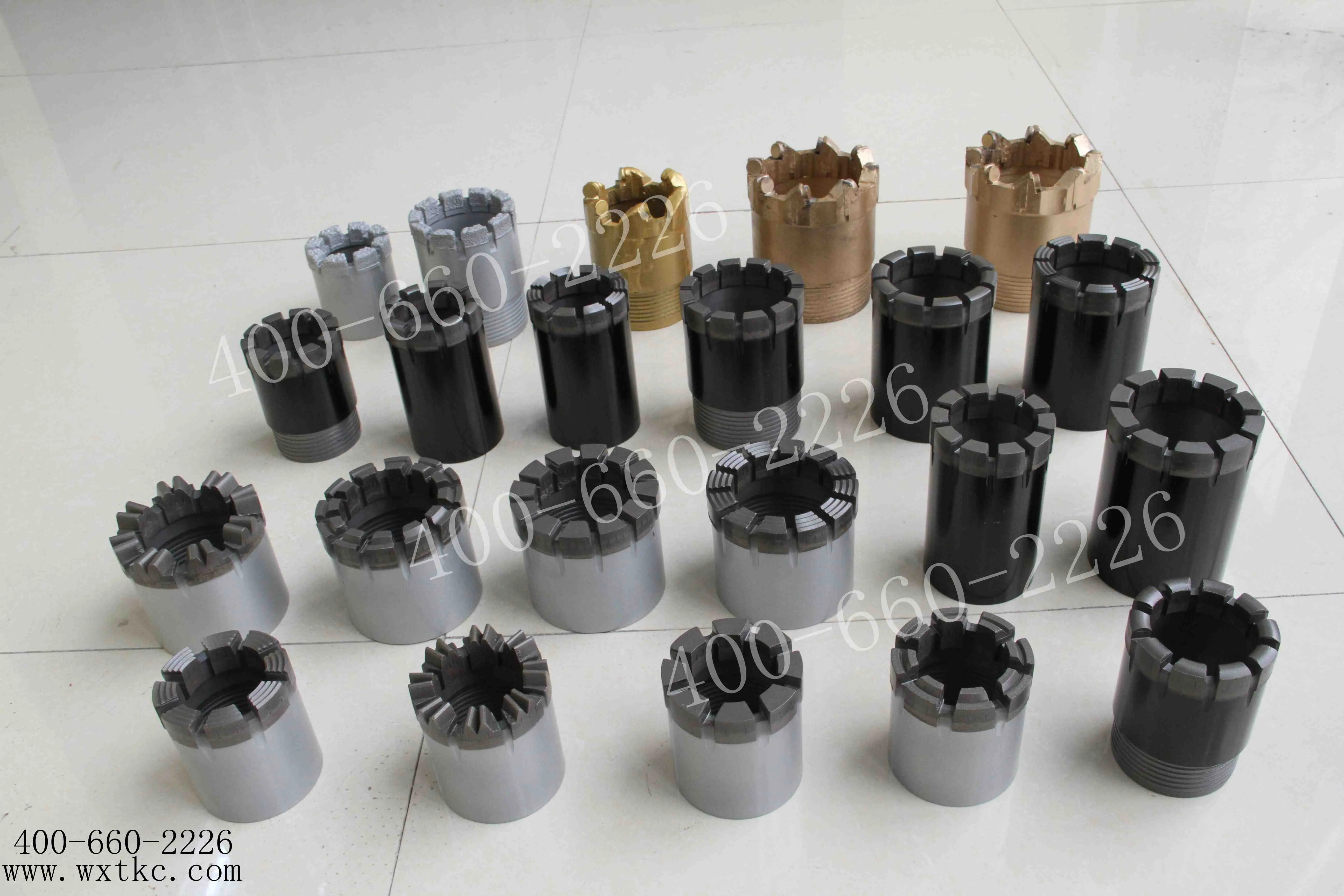

50 Single drill bitG7150-0Universal to 60 units
60 Double drill bitG7260-0
73 Double drill bitG7273-0
89 Triple drill bitG7389-0
89 Triple double high pressure drill bitG7389G-0

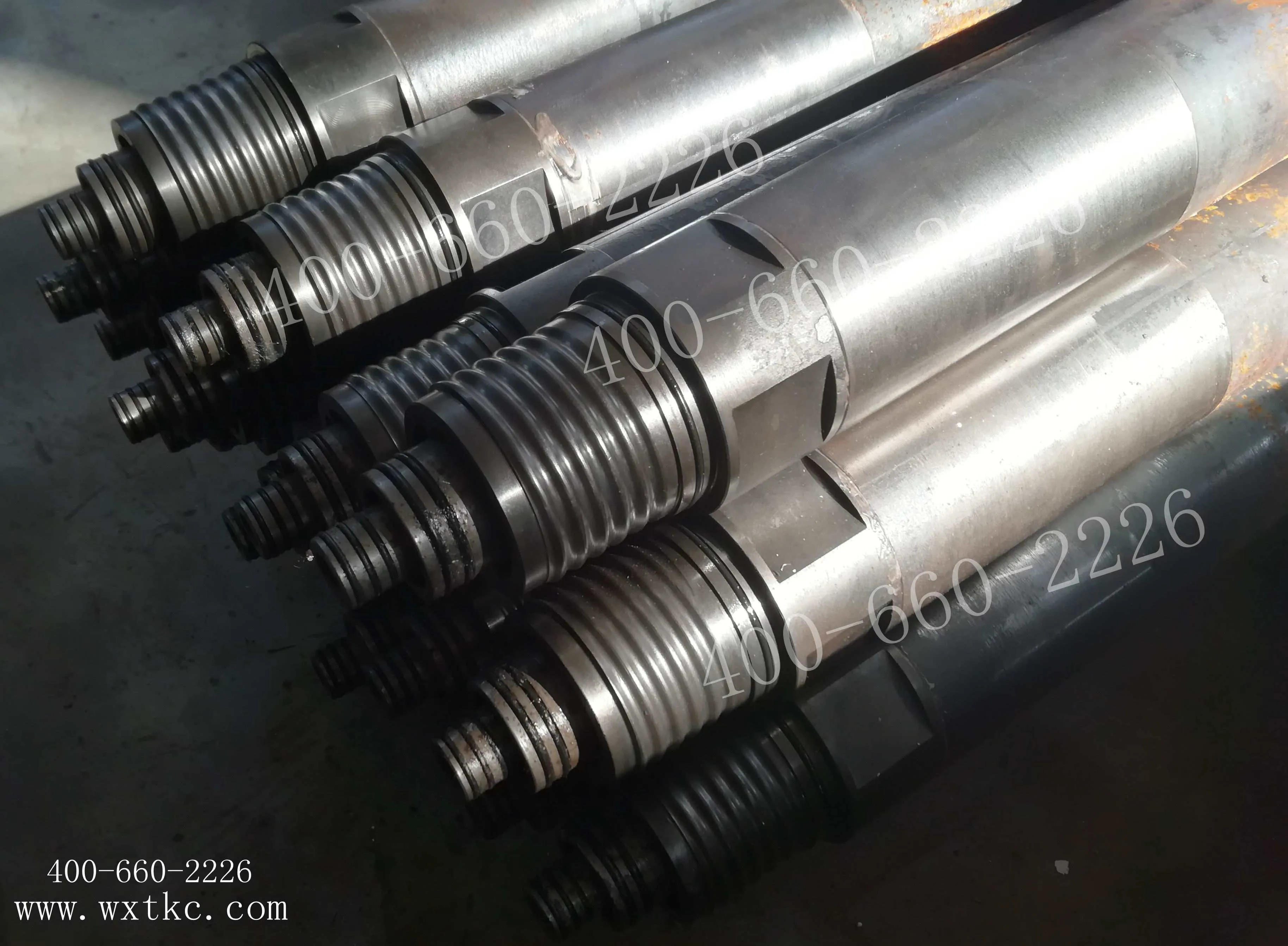

50 Single jet grouting drill pipeG4150-0Drill pipe outer diameter 50
60 Single jet grouting drill pipeG4160-0Drill pipe outer diameter 60
60 Double jet grouting drill pipeG4260-0Drill pipe outer diameter 60
73 Double jet grouting drill pipeG4273-0Drill pipe outer diameter 73Customizable length
89 Triple jet grouting drill pipeG4389-0Drill pipe outer diameter 89
89 Triple double high pressure jet grouting drill pipeG4389G-0Drill pipe outer diameter 89


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
