DAM REINFORCEMENT PROJECT, NEPAL

MDL-150H

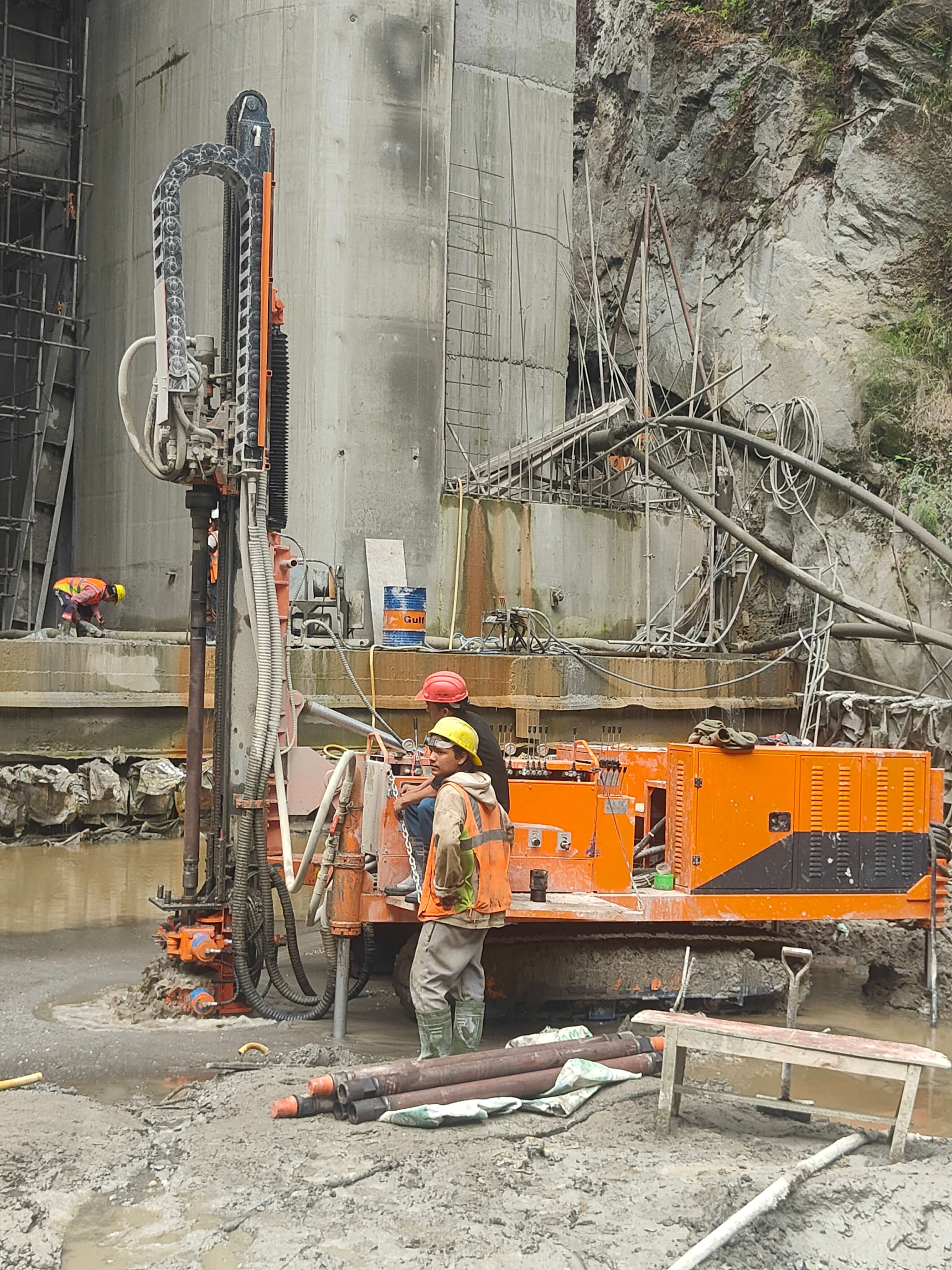

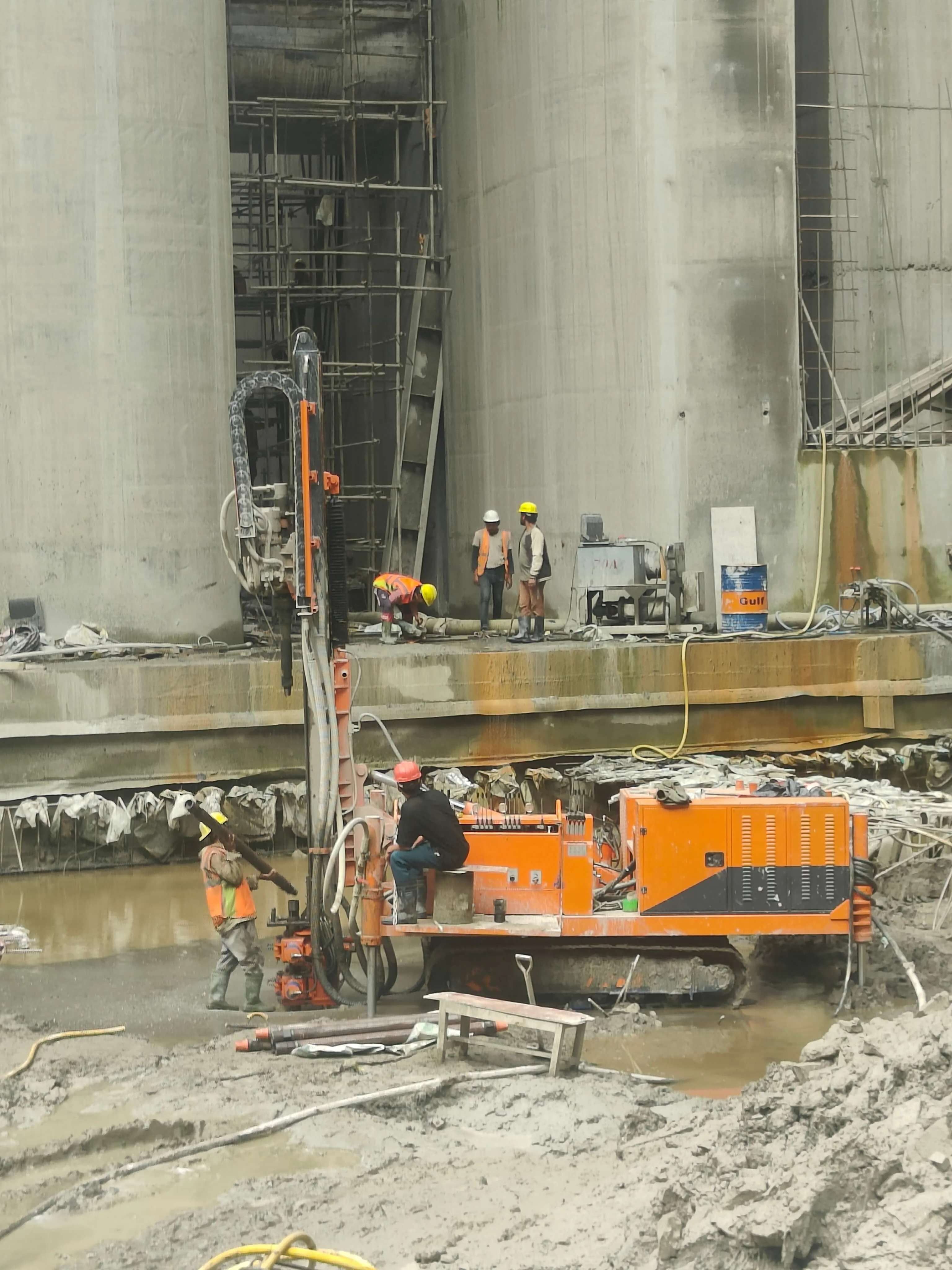

The MDL-150H rig was applied to the dam reinforcement project in Nepal: reinforcement piles were constructed beneath the dam body in the first phase, followed by high-pressure jet grouting piles for a water-stop curtain. Equipped with an 89 triple dual-high-pressure jet grouting assembly, it adapted to cobble, boulder and sand strata, shortening the operation time per pile to 2.5 hours — efficient and reliable.

PROJECT CONFIGURATION

TOOL CONFIGURATION

89 triple dual-high-pressure jet grouting assembly (customized dual-fluid grouting bit)

CONSTRUCTION PROCESS

Construction of reinforcement piles beneath the dam body to increase the bearing capacity of the project site
High-pressure jet grouting piles at the joints of the waterproof wall around the dam body, forming a water-stop curtain
Depth: 30 m ; Diameter: 800 mm

GEOLOGICAL CONDITIONS

0–10 m: cobbles and boulders ; 10–30 m: sand layer

CONSTRUCTION EFFICIENCY

Operation time per pile reduced from 4 hours to 2.5 hours
