FOUNDATION GROUTING REINFORCEMENT CONSTRUCTION, SHANGHAI

XPG-65

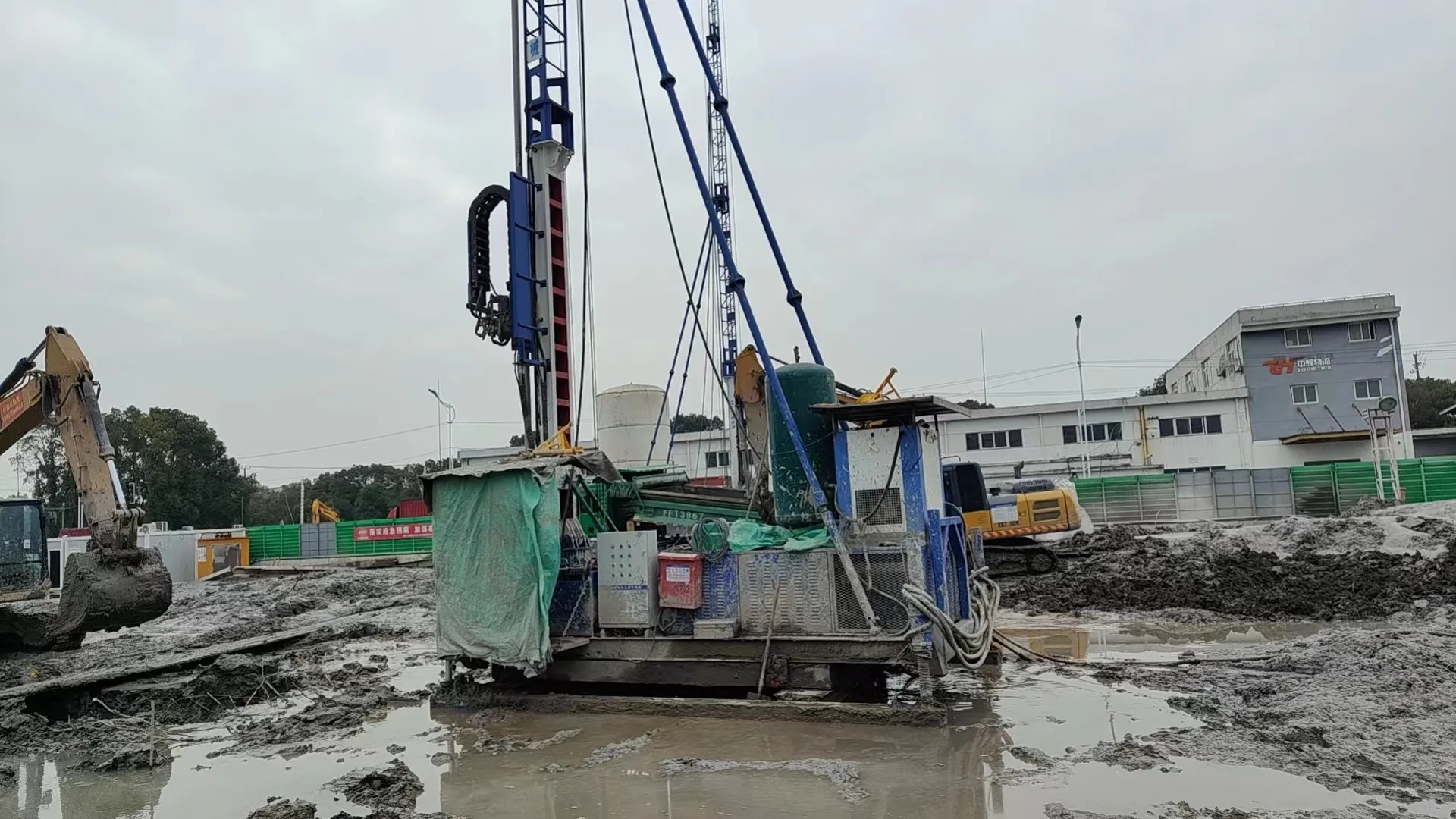

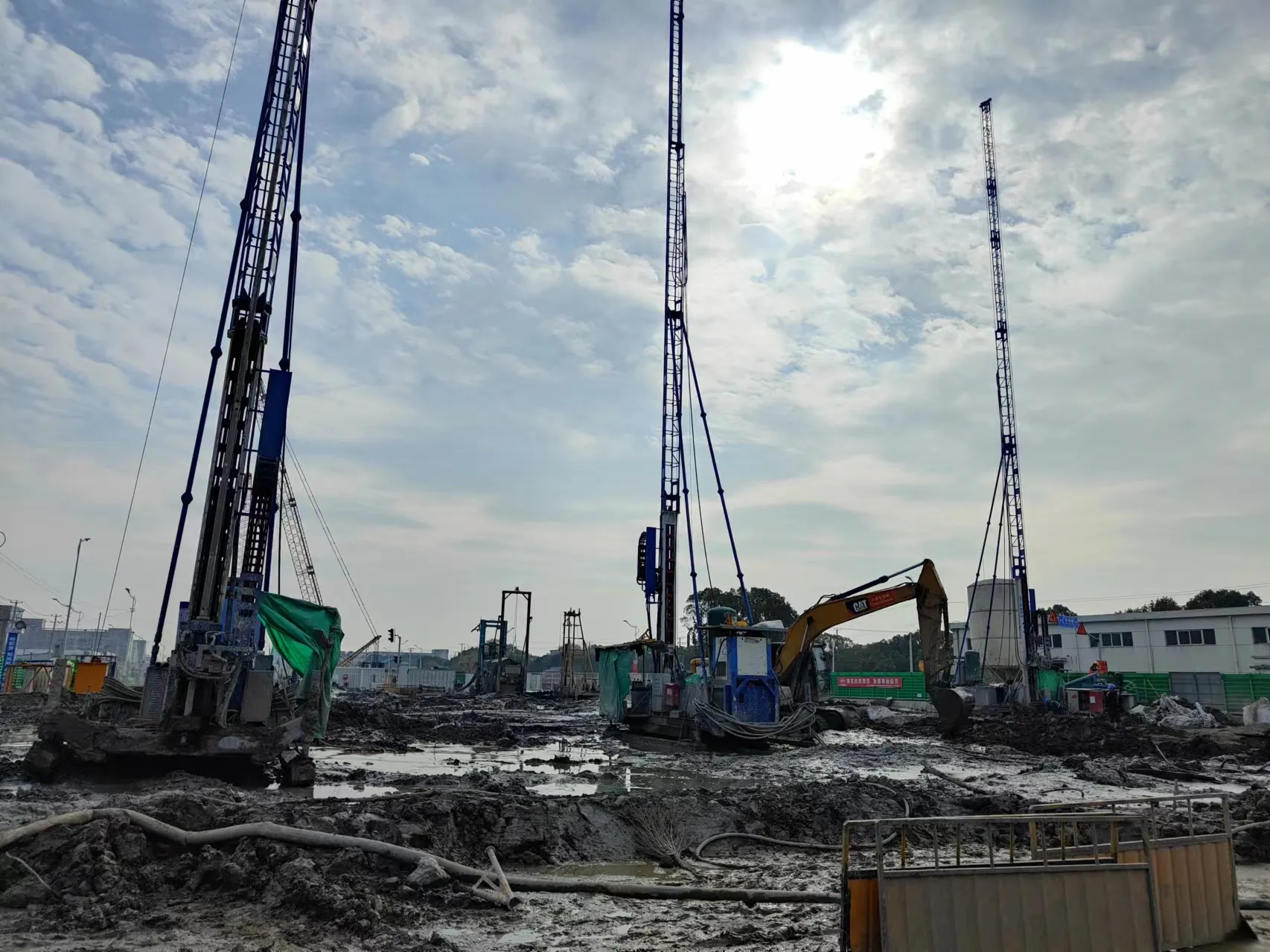

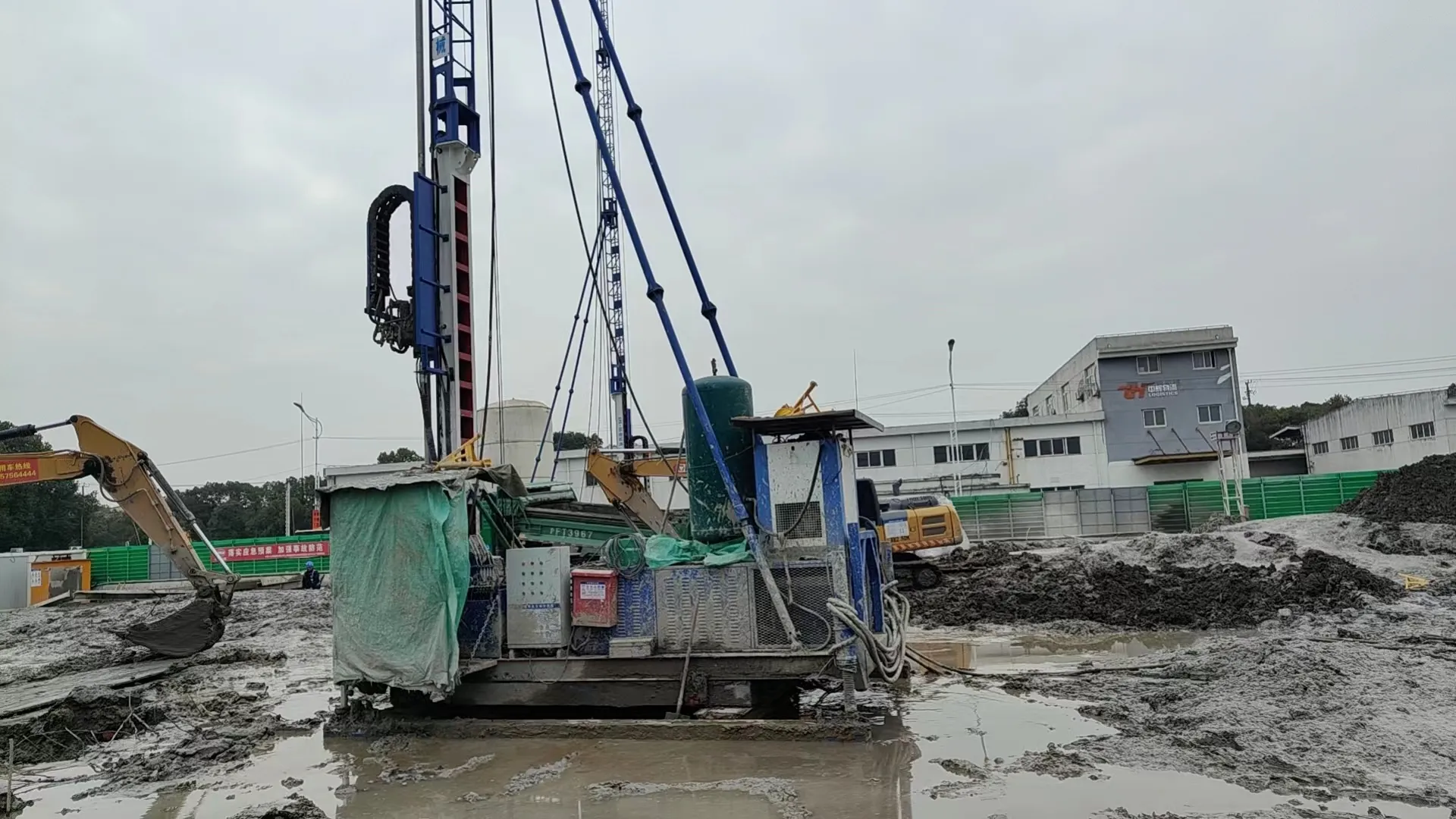

The XPG-65 rig was applied to foundation grouting reinforcement in Shanghai, adopting foundation pit base slab grouting reinforcement and foundation pit support processes. Equipped with an 89 triple dual-high-pressure jet grouting assembly, it handled backfill, sand and silt strata, completing construction with a diameter of 1000 mm and a depth of 22 m.

FOUNDATION GROUTING REINFORCEMENT CONSTRUCTION, SHANGHAI

PROJECT CONFIGURATION

TOOL CONFIGURATION

89 triple dual-high-pressure jet grouting assembly

PROCESS TYPE

Foundation pit base slab grouting reinforcement

CONSTRUCTION PROCESS

Foundation pit support

STRATA CONDITIONS

1–3 m backfill; 4–10 m sand layer; 11–22 m silt layer

TARGET PILE DIAMETER

∅1000 mm, hole depth 22 m
