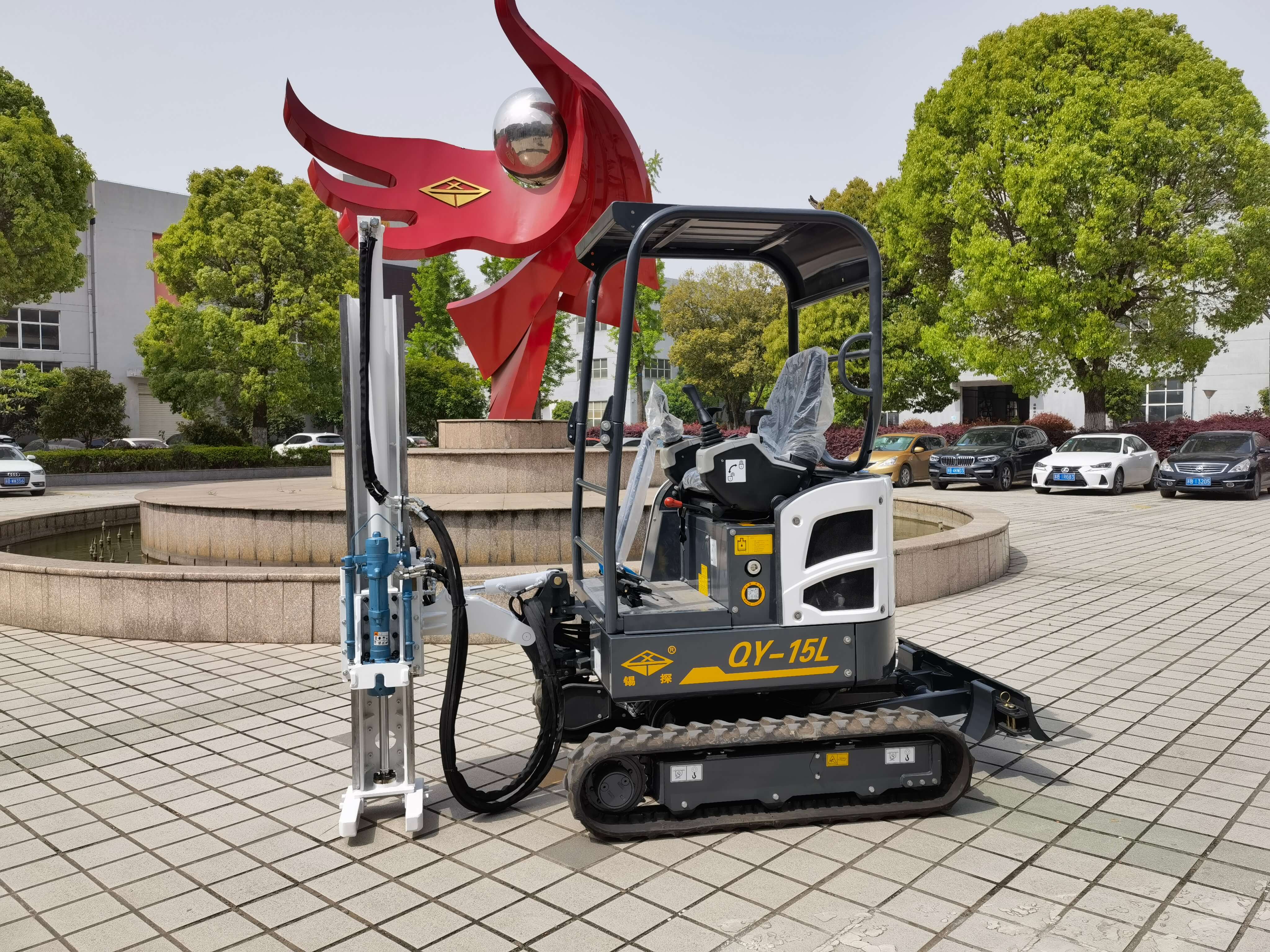

QY-15L
FARMLAND SAMPLING ROBOT

Widely used in Sampling operations inagricultural fields,chemical workshops, experimental bases and so on.

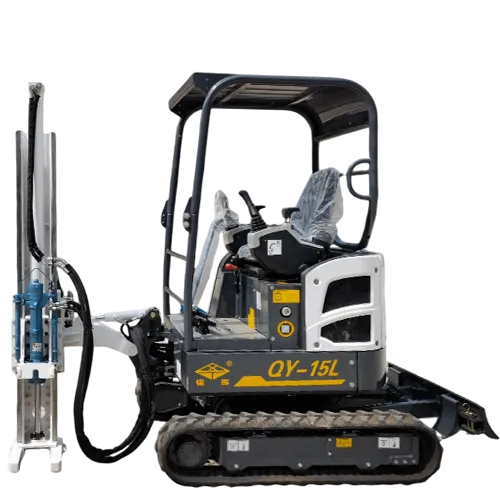

QY-15LFARMLAND SAMPLING ROBOT

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NameQY-15L
Drilling diameter (mm)≤φ60
Drilling depth (m)≤12
Probe stroke (mm)1500
Inclination angle (°)70~100
Rated lifting force (kN)60
Impact frequency (bpm)1700
EngineYANMAR
Engine power (kW/rpm)15.1/2400
Crawler width (mm)1080/1400
Transport dimensions (L×W×H)(mm)3065×1080×1800
Weight of drilling rig (kg)1900
Ground specific pressure (kg/cm²)0.34


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.

WHEREVER THERE IS ENGINEERING IN THE WORLD
THERE IS INTELLIGENT EQUIPMENT OF XITEC.
