QY-60Lpro
ENVIRONMENTAL SAMPLING ROBOT

QY series sampling robots are widely used in polluted site investigation, repait, and engineering geological Survey and other industries.

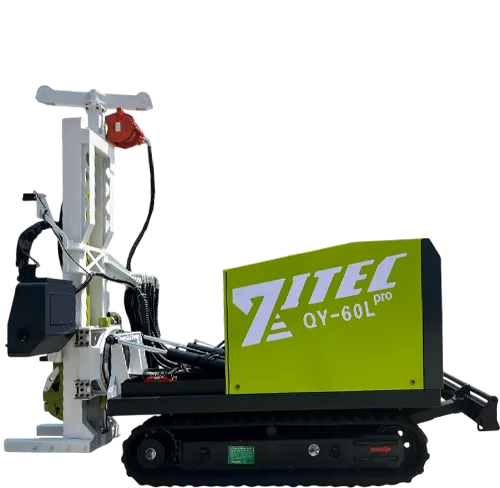

QY-60LproENVIRONMENTAL SAMPLING ROBOT

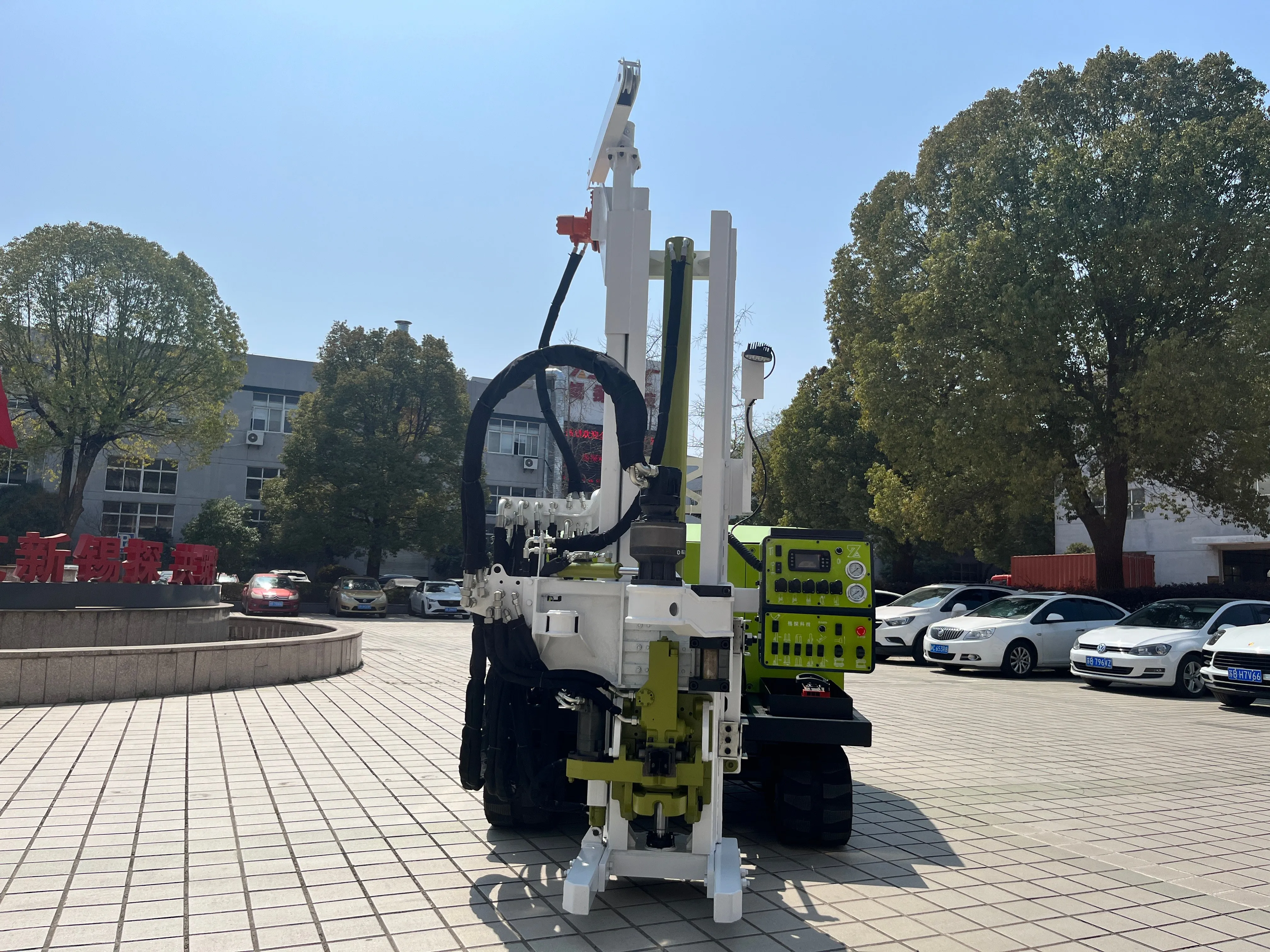

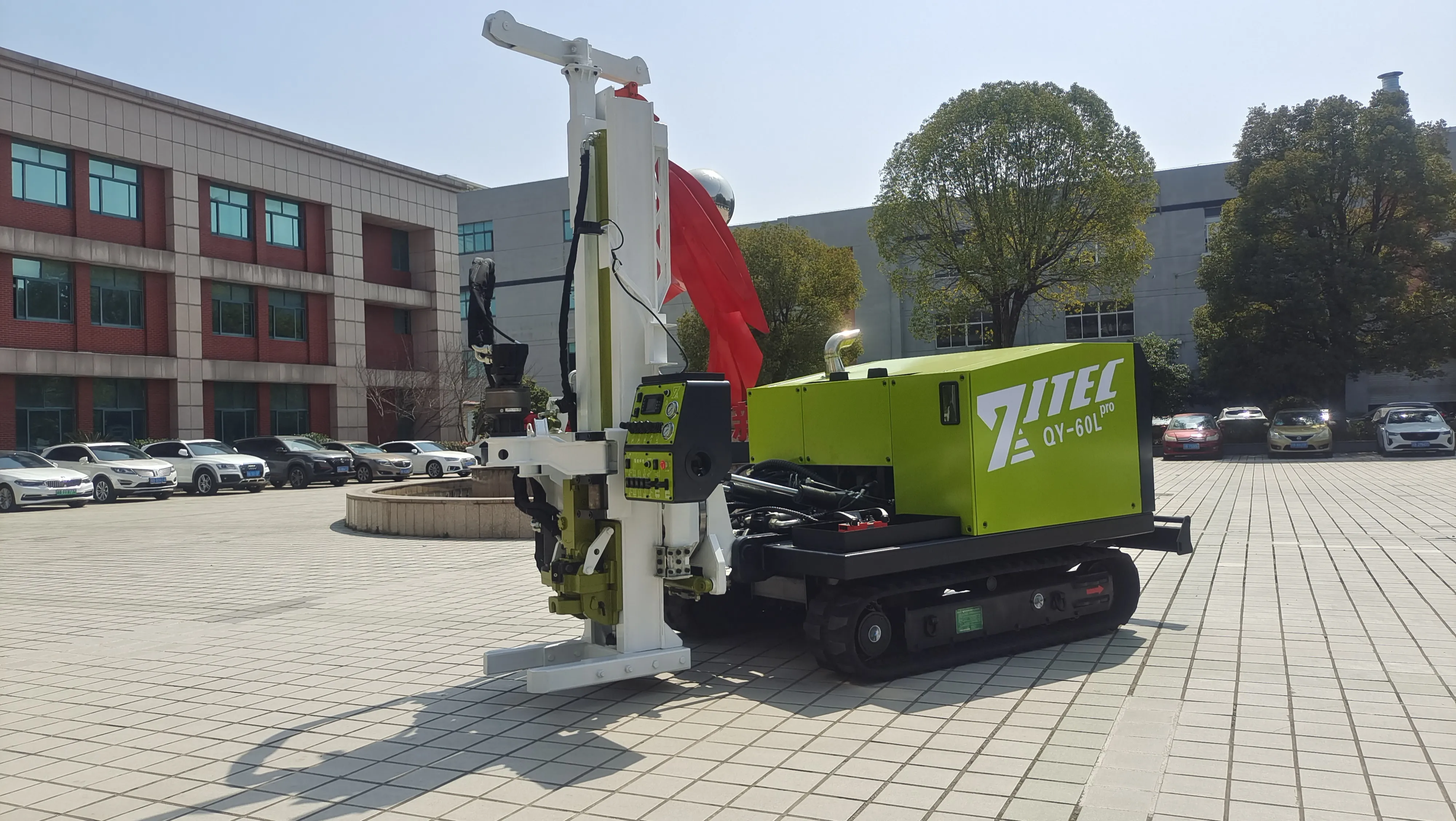

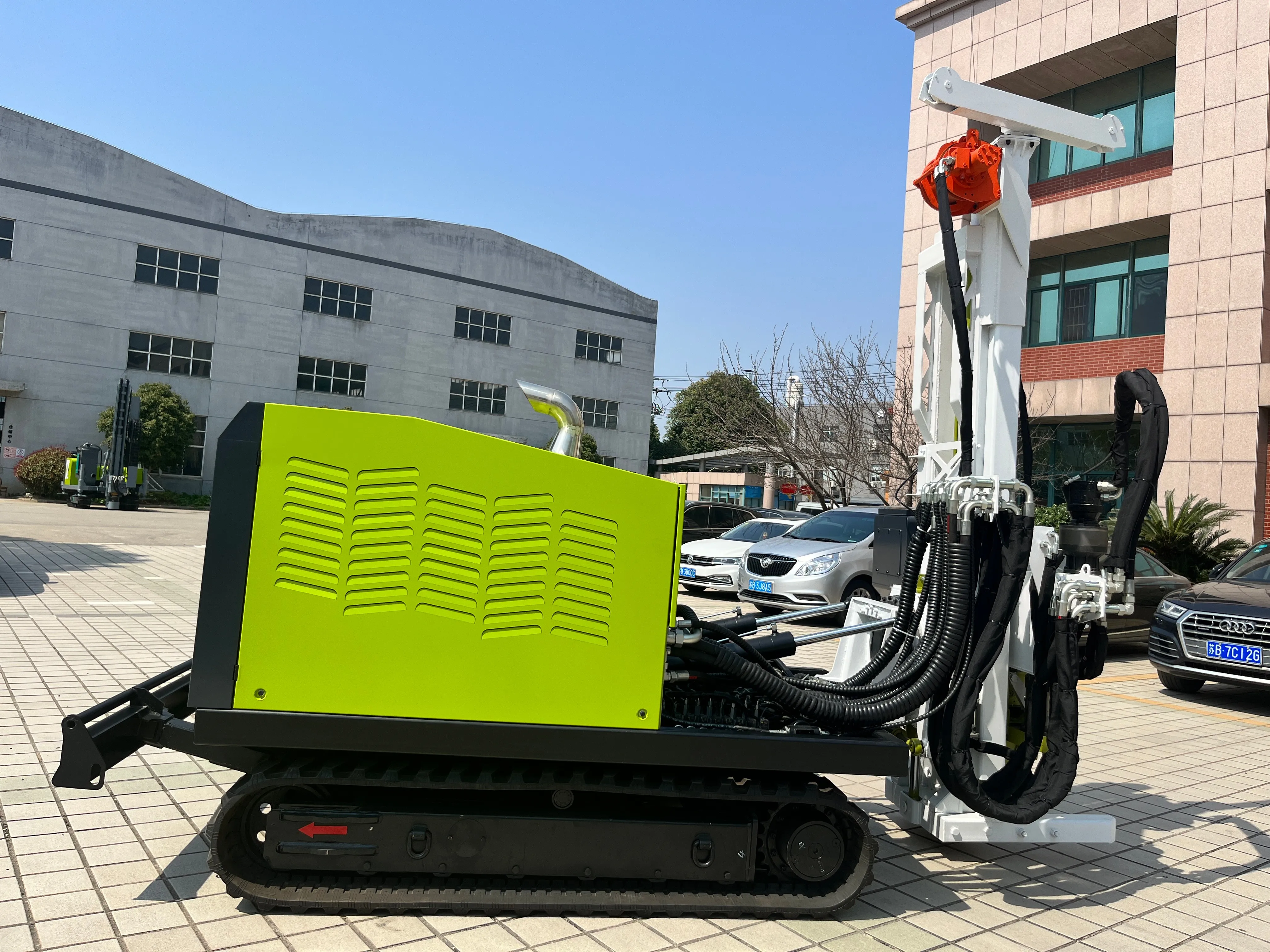

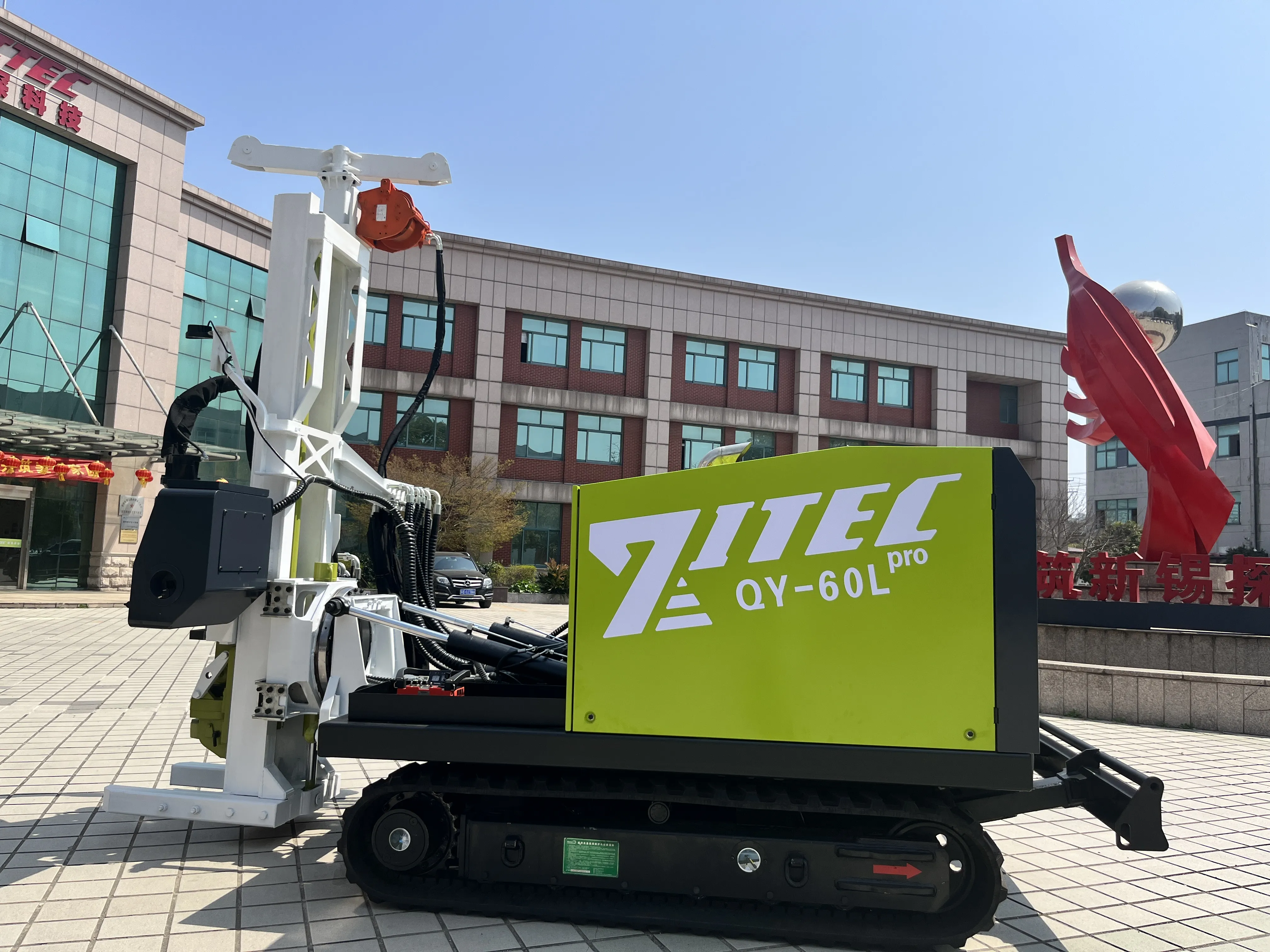

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEQY-60Lpro
Spiral power head
High torque (Nm)3400
Low torque (Nm)970
High speed (rpm)230
Low speed (rpm)90
Output form- Outer hexagonal1-5/8"
Impact power head
Impact frequency (bpm)1600~1900
Impact power (kW)9
Torque (Nm)700~900
Speed (rpm)0~260
Power head lifting force (kN)220
Propulsion force of power head (kN)140
Hydraulic winch lifting force (kN)10
Power head stroke (mm)2000
Weight of drilling rig (kg)5000
Transport dimensions (L×W×H)(mm)3500×1900×2500
Working dimensions (L×W×H)(mm)4500×1900×4800
Rated power (kW)93
Front and rear sliding of the frame (mm)400
Frame deflection angle (°)±10
Tower lifting angle (°)25~100
Derick inclination angle (°)-15~15
Rear hanger capacity (kg)900
Walking speed (km/h)2.5~4.5
Ground specific pressure (kg/cm²)0.46


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
