XT-500
PHOTOVOLTAIC DRILLING MACHINE

Suitable for various processes such as screw pile, helical pile and impact pile for photovoltaic construction. Suitable for highway guardrail pile driving and pile pulling. Suitable for anchoring and rotary spraying operations in subways, high-rise buildings, airports, ground source heat pumps, and other deep foundation pits.

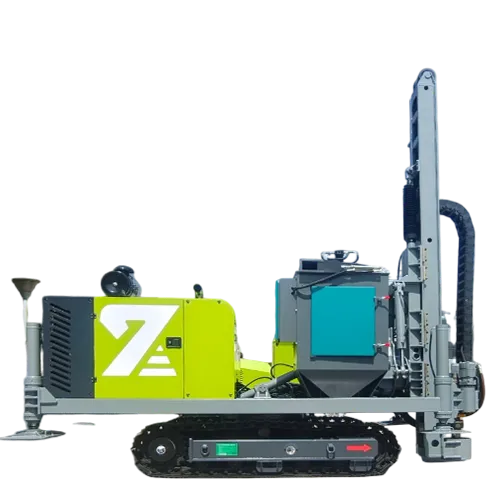

XT-500PHOTOVOLTAIC DRILLING MACHINE

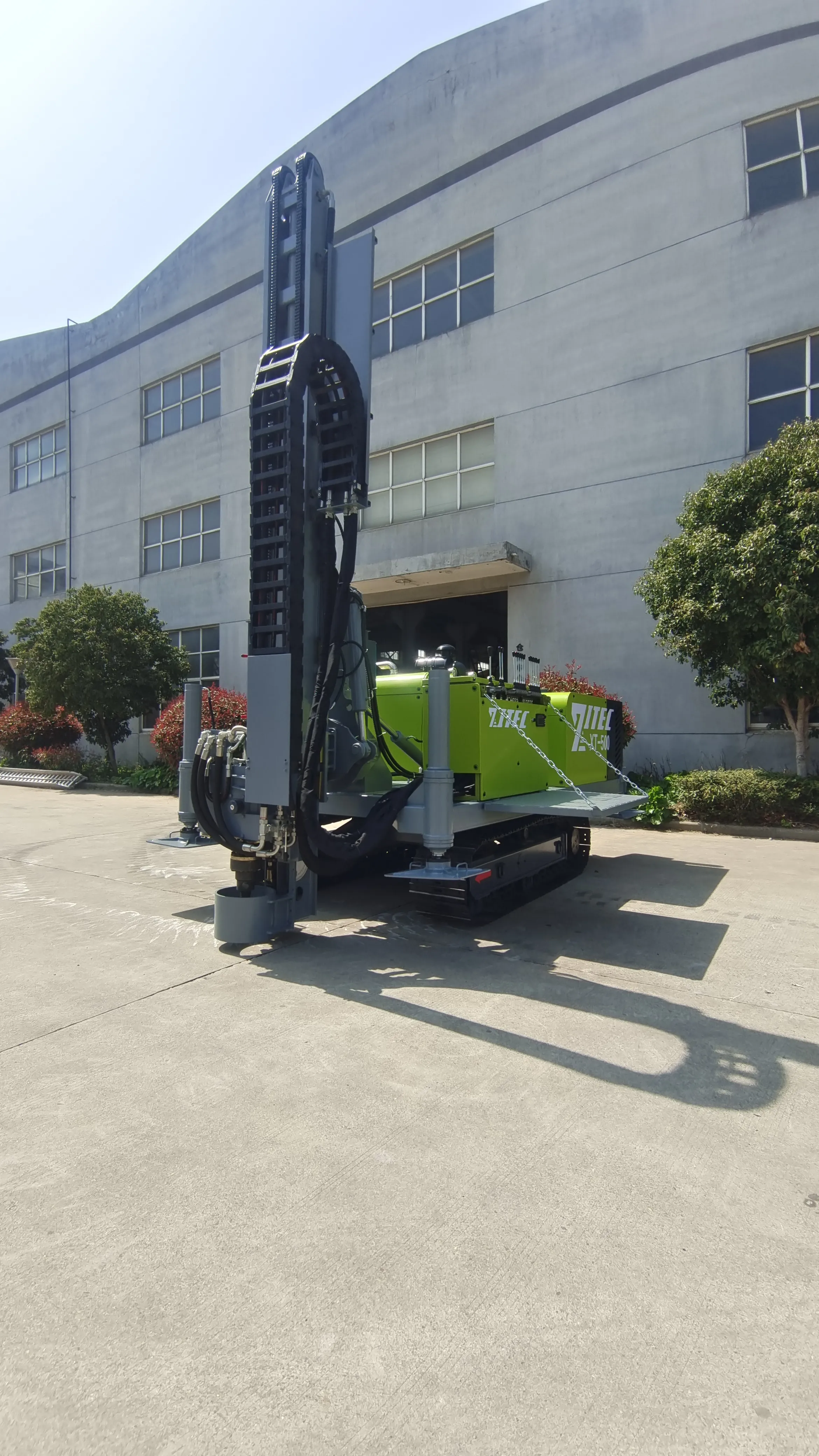

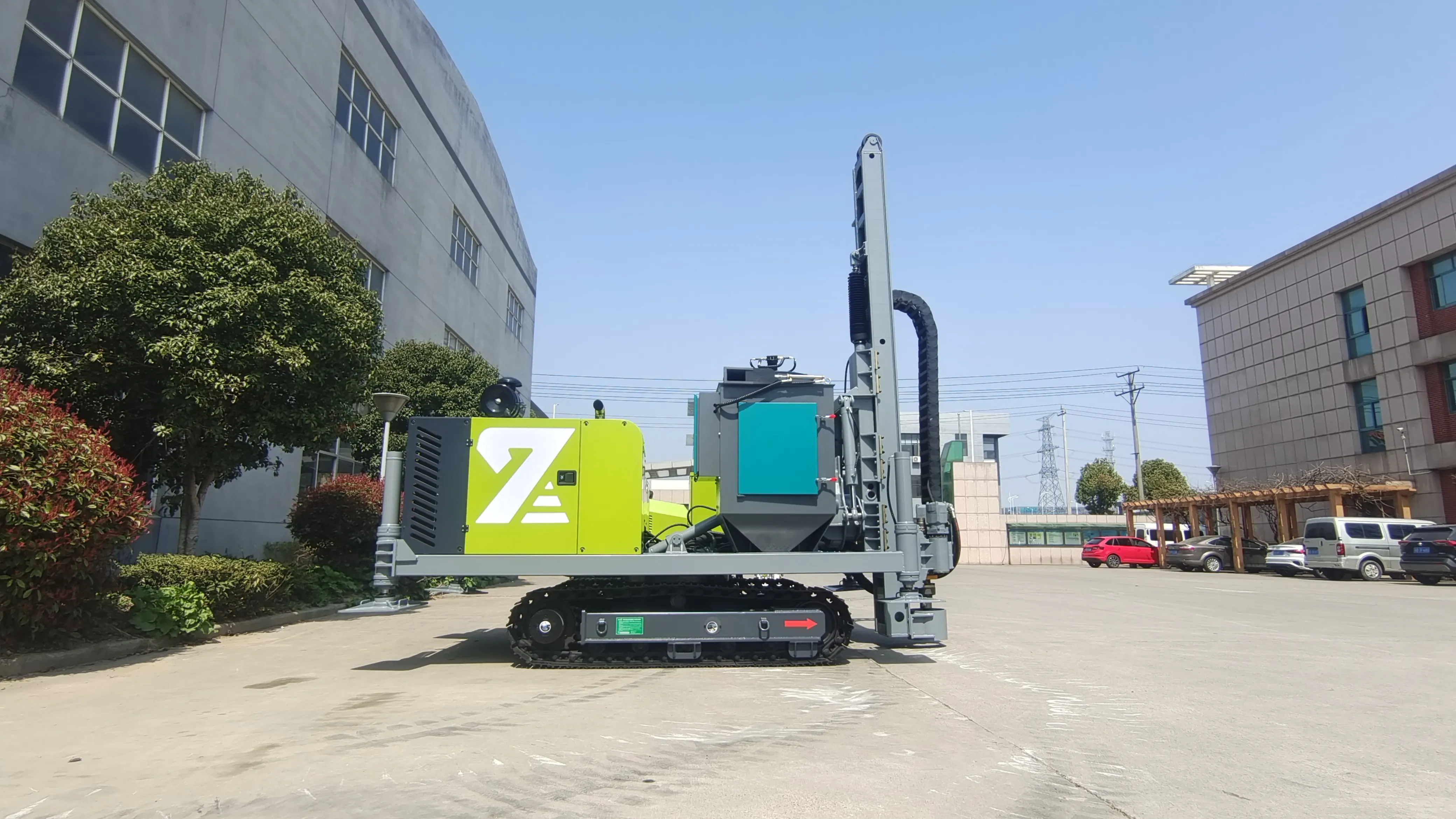

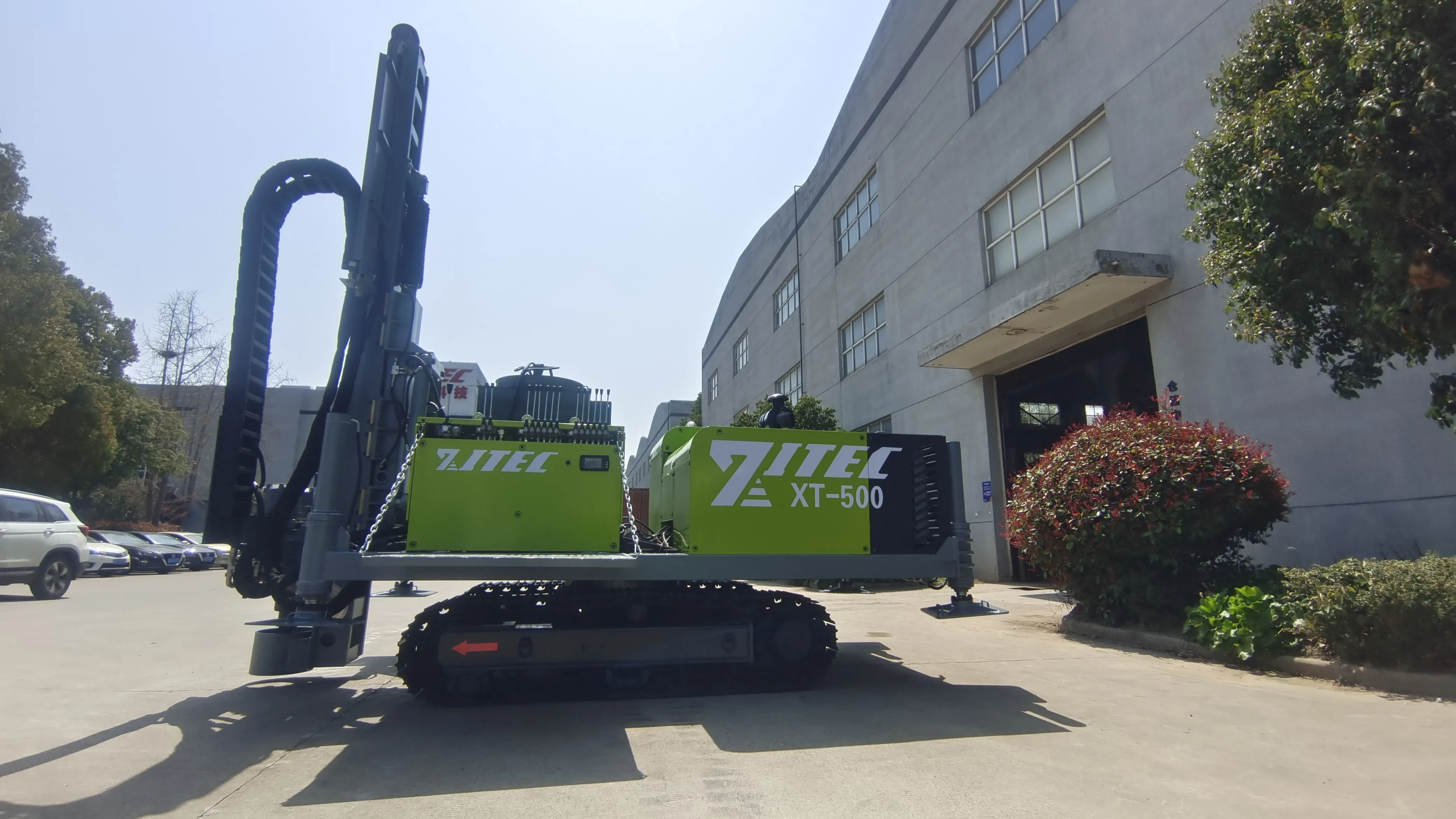

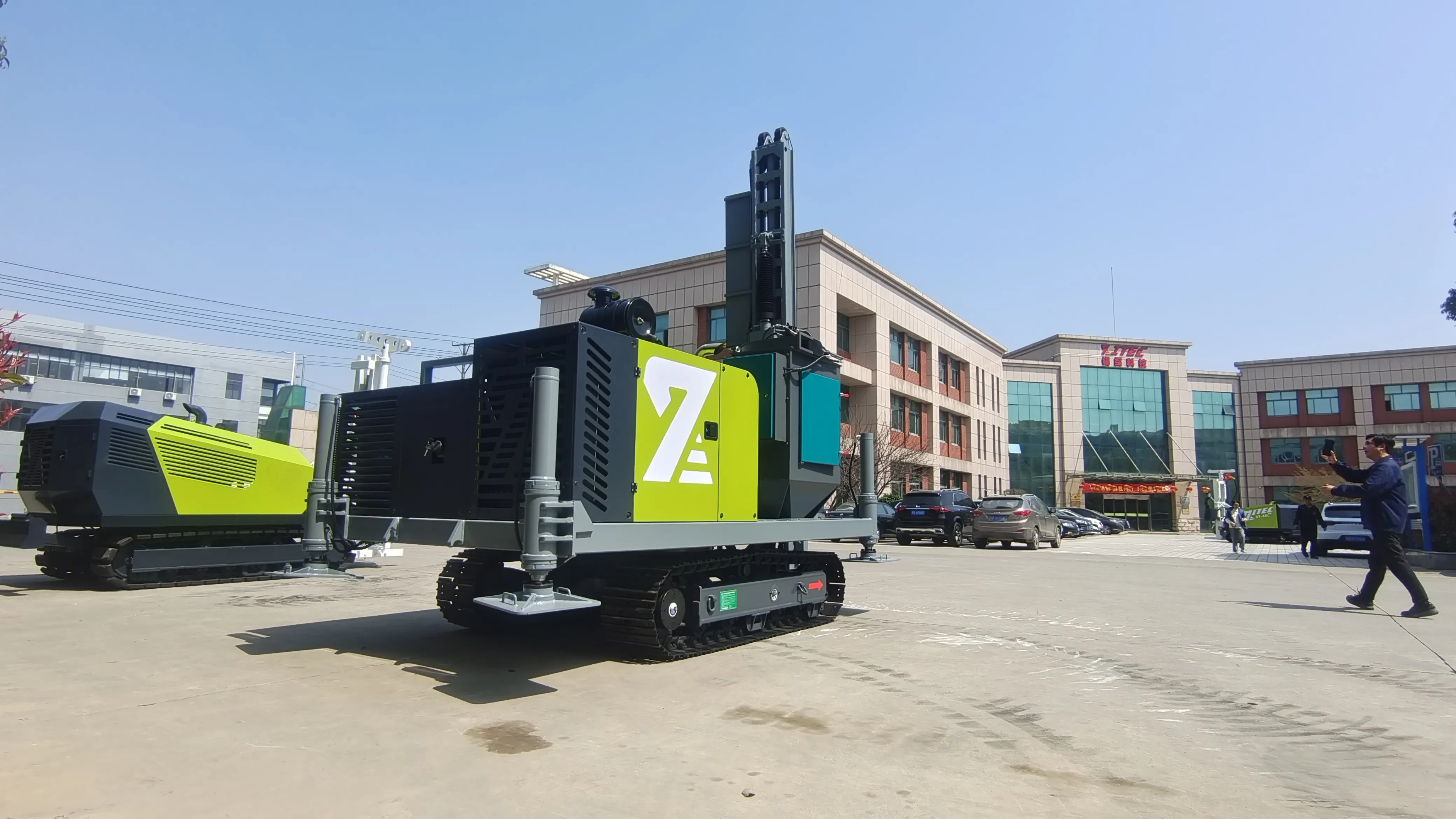

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEXT-500
Borehole diameter (mm)φ150~φ350
Drilling depth(m)0~35
Hole Angle (°)0~90
Drill pipe diameter(mm)Φ73、Φ89、Φ102、Φ114
Output torque (Nm)7500
Output speed(r/min)10/20/30/35/40/60/65/70/85/130/170
Lifting speed(m/min)0~5 adjustable、7、23、30
Feed speed(m/min)0~10 adjustable、14、46、59
Rated lifting force (kN)70
Rated feeding force (kN)36
Feeding process (mm)3400
Slip stroke (mm)900
PowerCommins
Power92kW
Weight(kg)7000
Crawling angle25°
Transport diameter (LWH, mm)6200×2100×2350
Vertical operation diameter (LWH, mm)3600×2500×6200


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.

WHEREVER THERE IS ENGINEERING IN THE WORLD
THERE IS INTELLIGENT EQUIPMENT OF XITEC.
