XT-500A
PHOTOVOLTAIC DRILLING MACHINE

Suitable for various processes such asscrew pile, helical pile and impact pile forohotovoltaic construction. Suitable forhighway guardrail pile driving and pilepulling. Suitable for anchoring and rotaryspraying operations in subways, high-risebuildings, airports, ground source heatpumps, and other deep foundation pits.

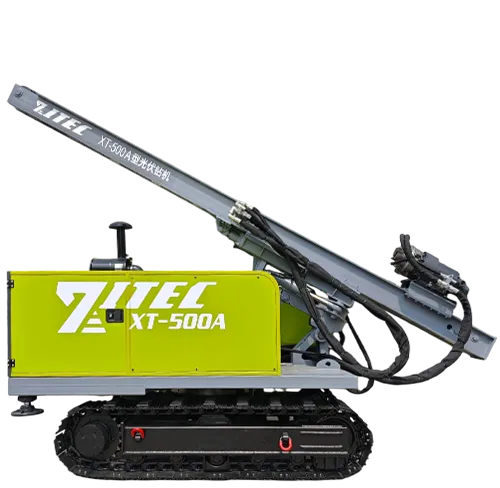

XT-500APHOTOVOLTAIC DRILLING MACHINE

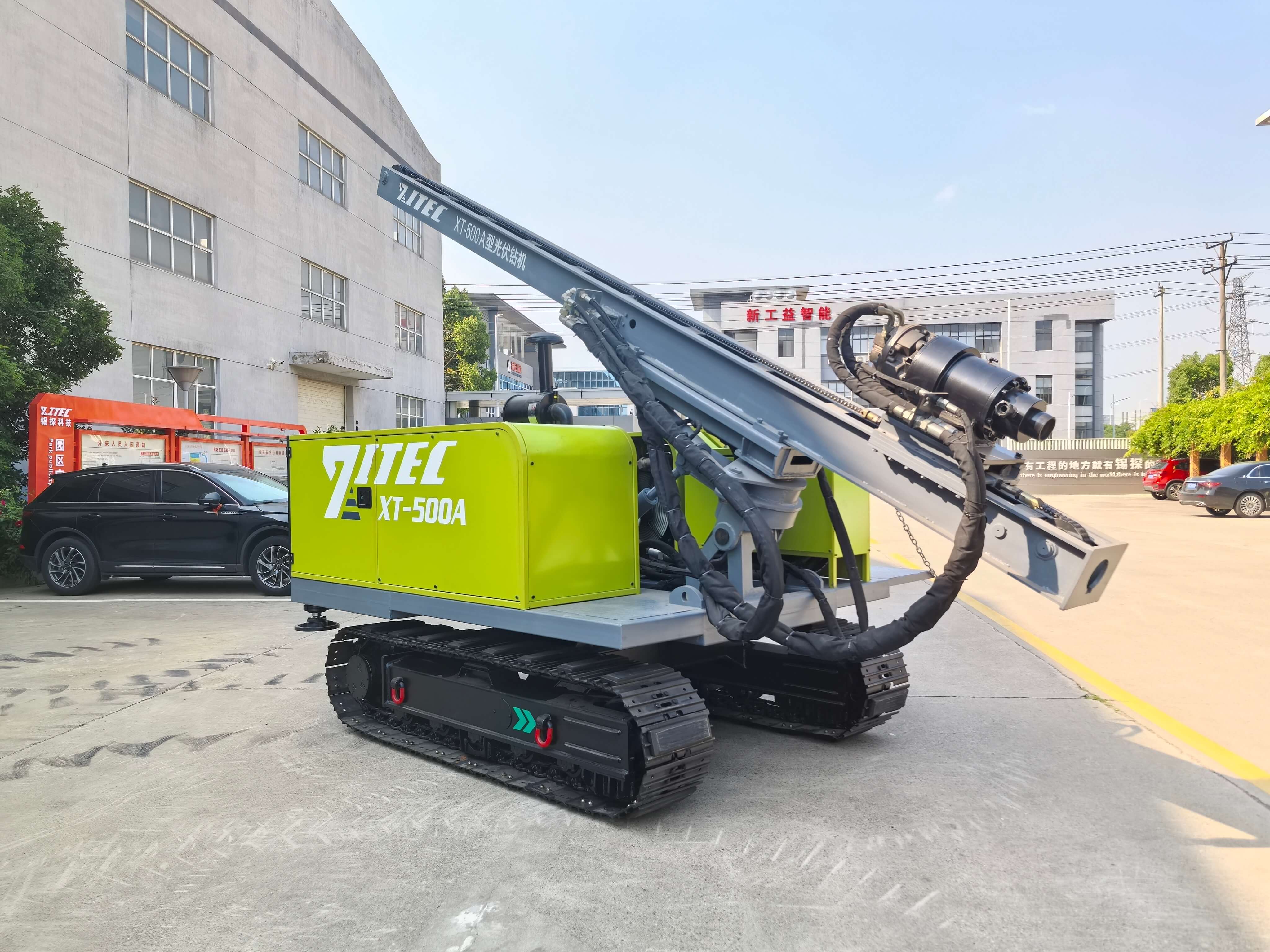

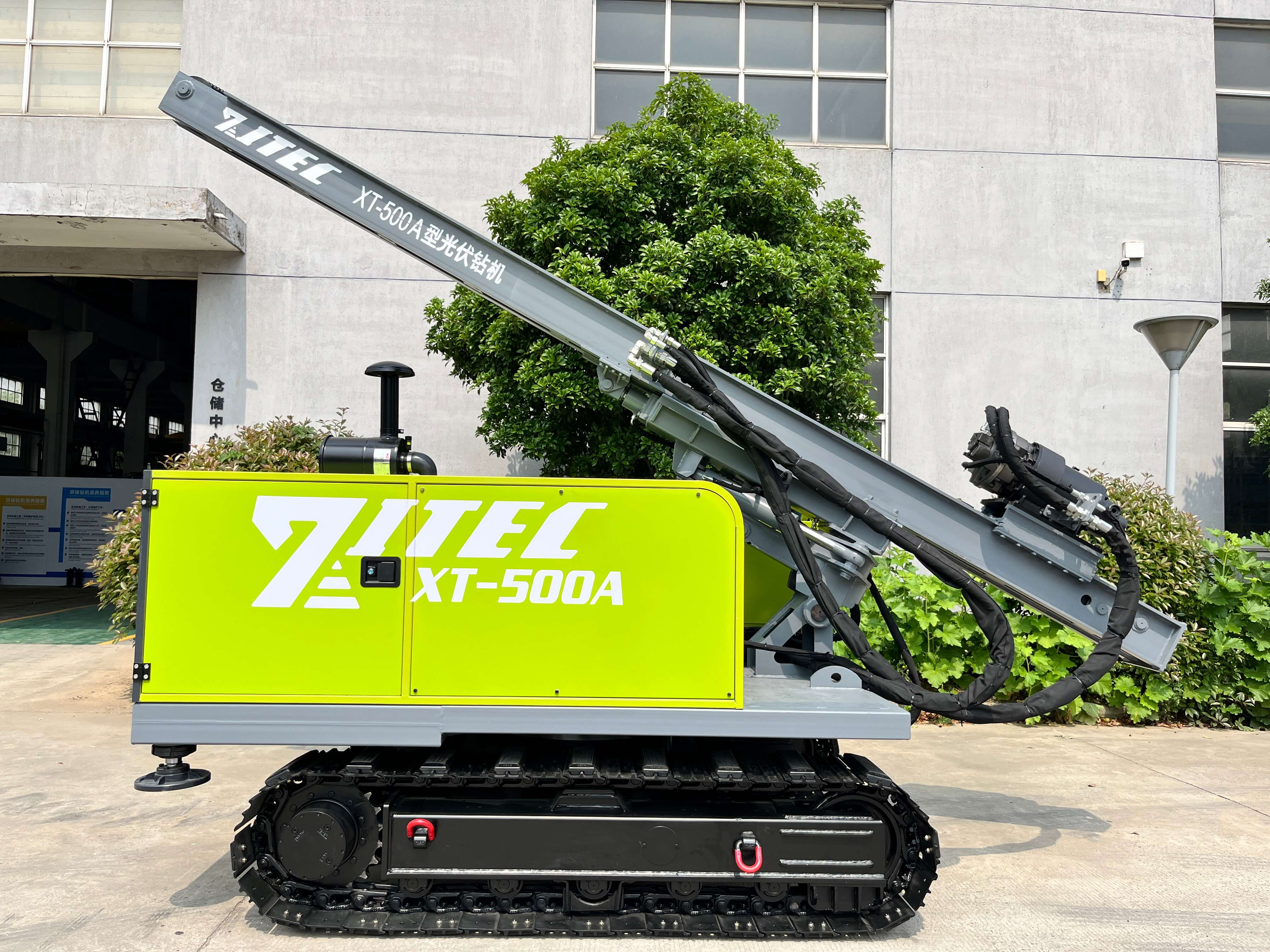

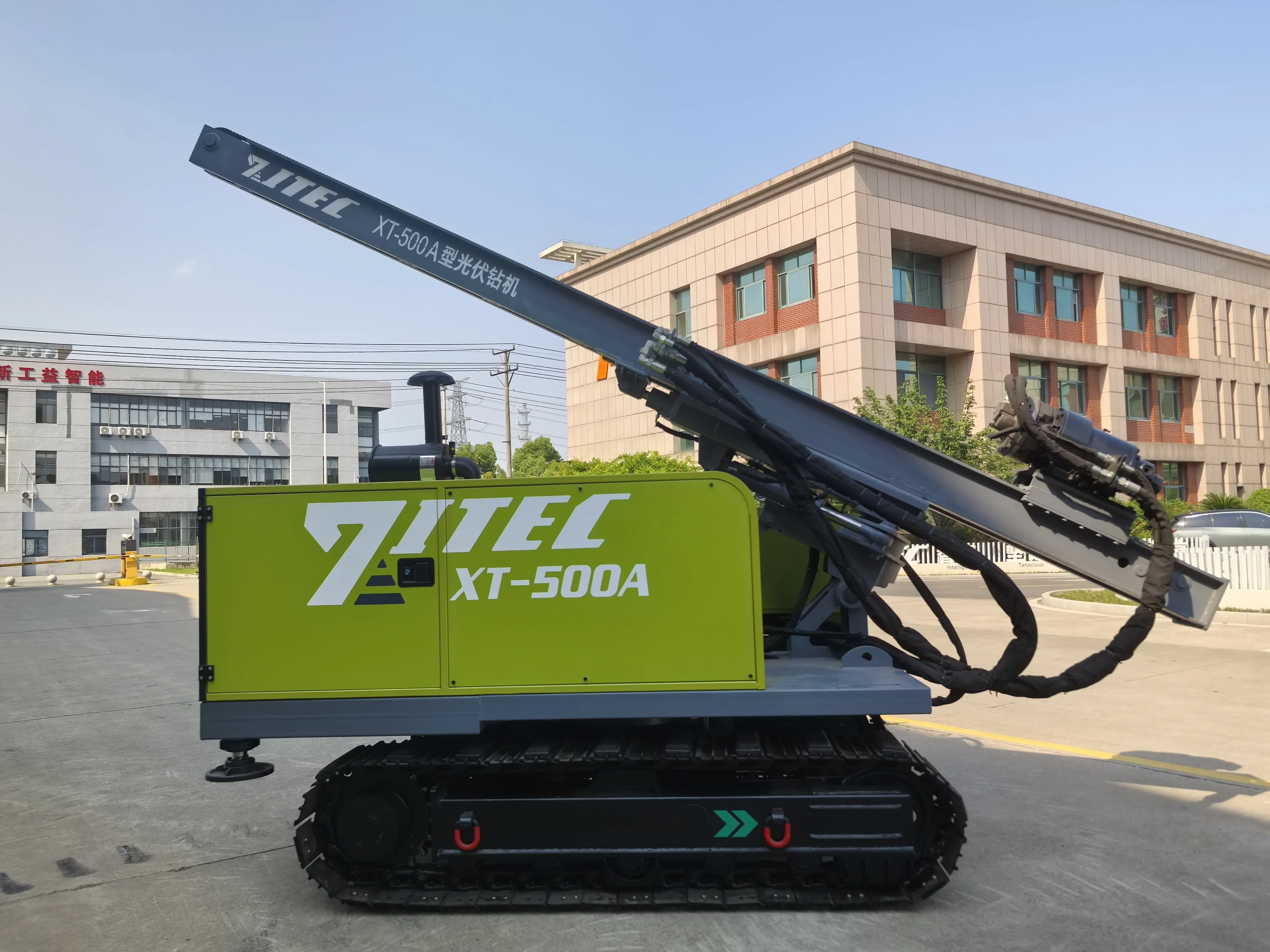

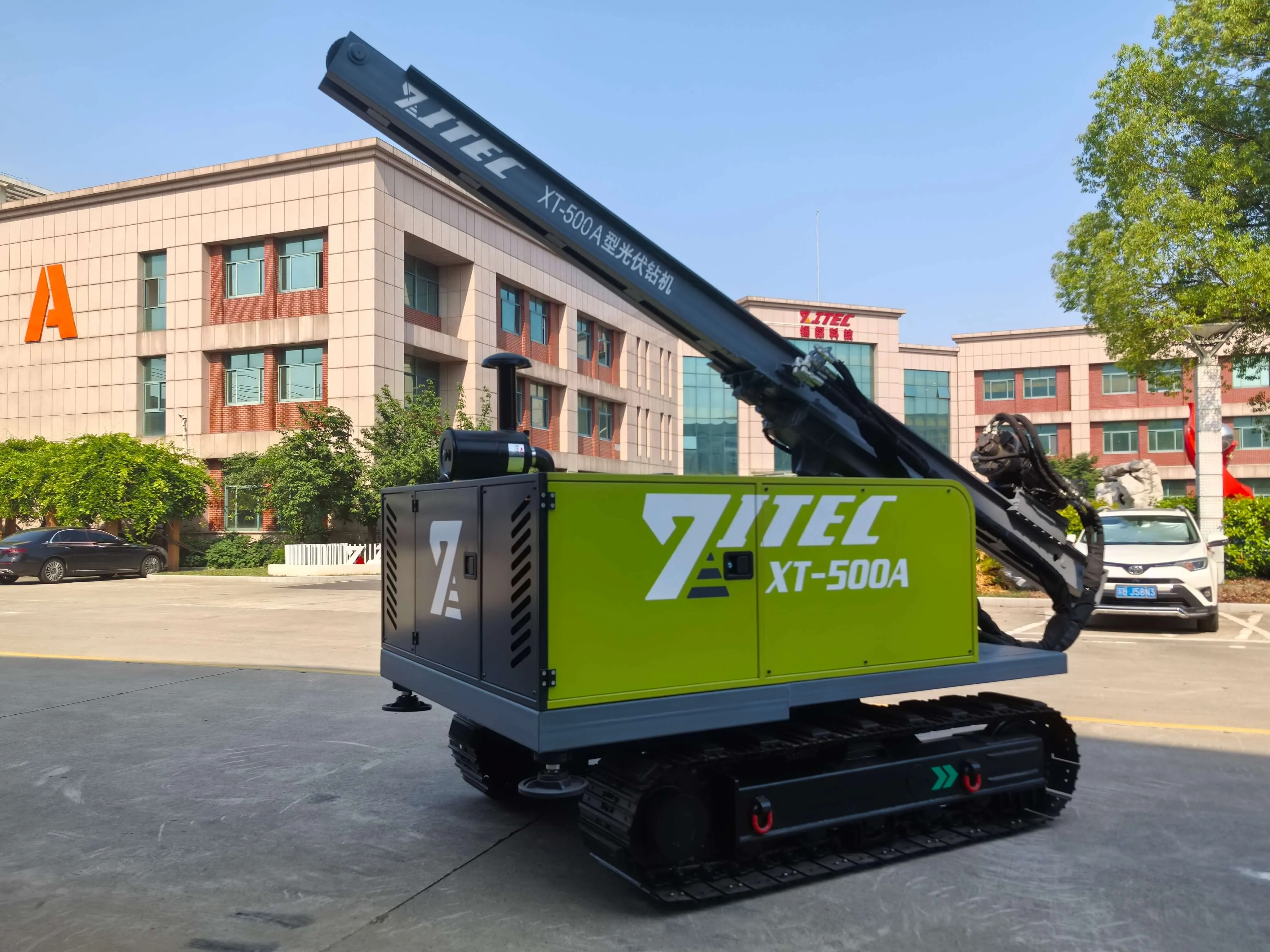

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEXT-500A
Piling driving height (mm)4000
Ground screw pile driving height (mm)4000
DTH drilling depth (mm)3500
DTH drilling diameter (mm)50-250
Auger drilling depth (mm)3500
Auger drilling diameter (mm)50-400
Drill pipe diameter (mm)e73,e89,e102,e114
Output torque (Nm)7500
Output speed (r/min)46/92
Lifting speed (m/min)18
Feed speed (m/min)27
Rated lifting force (kN)50
Rated feeding force (kN)30
Feeding process (mm)4000
Slip stroke (mm)900
Drilling angle (right and left) (°)15
Drilling angle (anterior and backward) (°)0-90
Hydraulic oil pump (triple-pump) (l)40+40+25
Hydraulic system pressure (bar)250
Hydraulic system flow (l/min)190
Hydraulic oil tank capacity (L)300
Walking speed (Km/h)0-2.6
Track plate width (mm)400
Climbing ability (°)25
Rated power (KW)91
Fuel tank capacity (L)85
Operating weight (Kg)5340
Work dimensions (L×W×H) (mm)3930×2200×5300
Transport dimensions (L×W×H) (mm)5300×2000×2320


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
