GXY-1C
SURVEY DRILLING RIG

Suitable for engineering geological exploration and survey exploration of solid mineral deposits. Blasting holes and inspection holes for various concrete structures, According to the different strata Diamond, hard alloy, rotary drill bits, etc. can be selected for drilling.

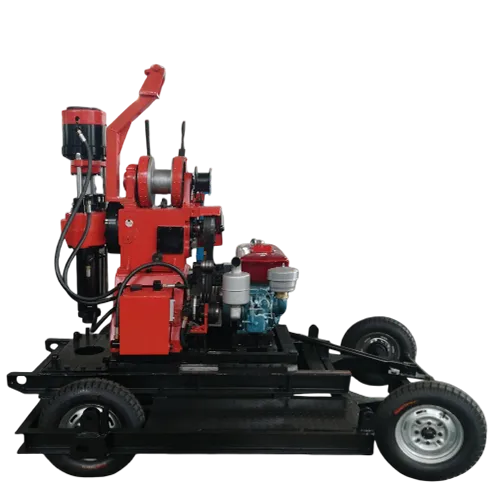

GXY-1CSURVEY DRILLING RIG

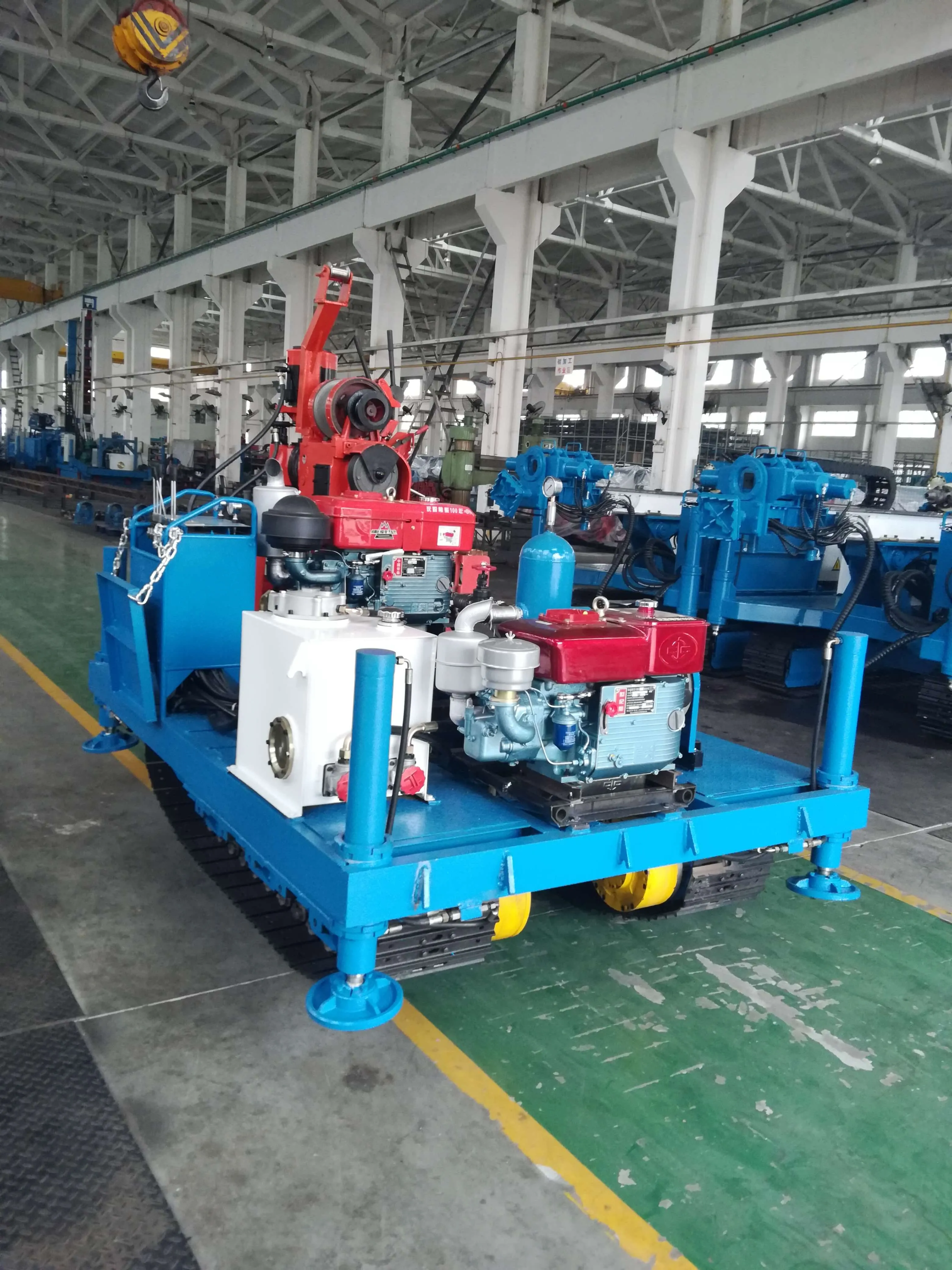

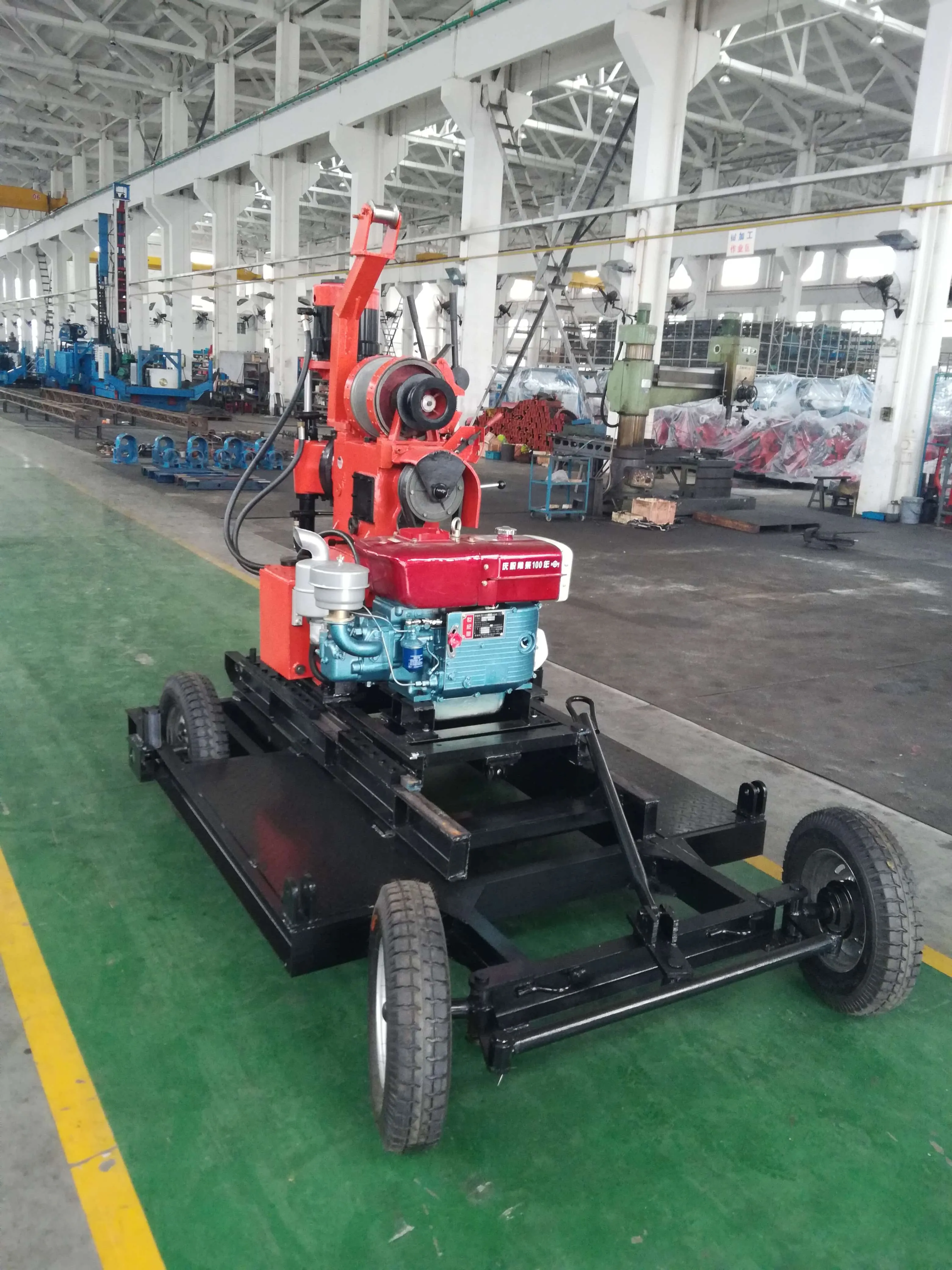

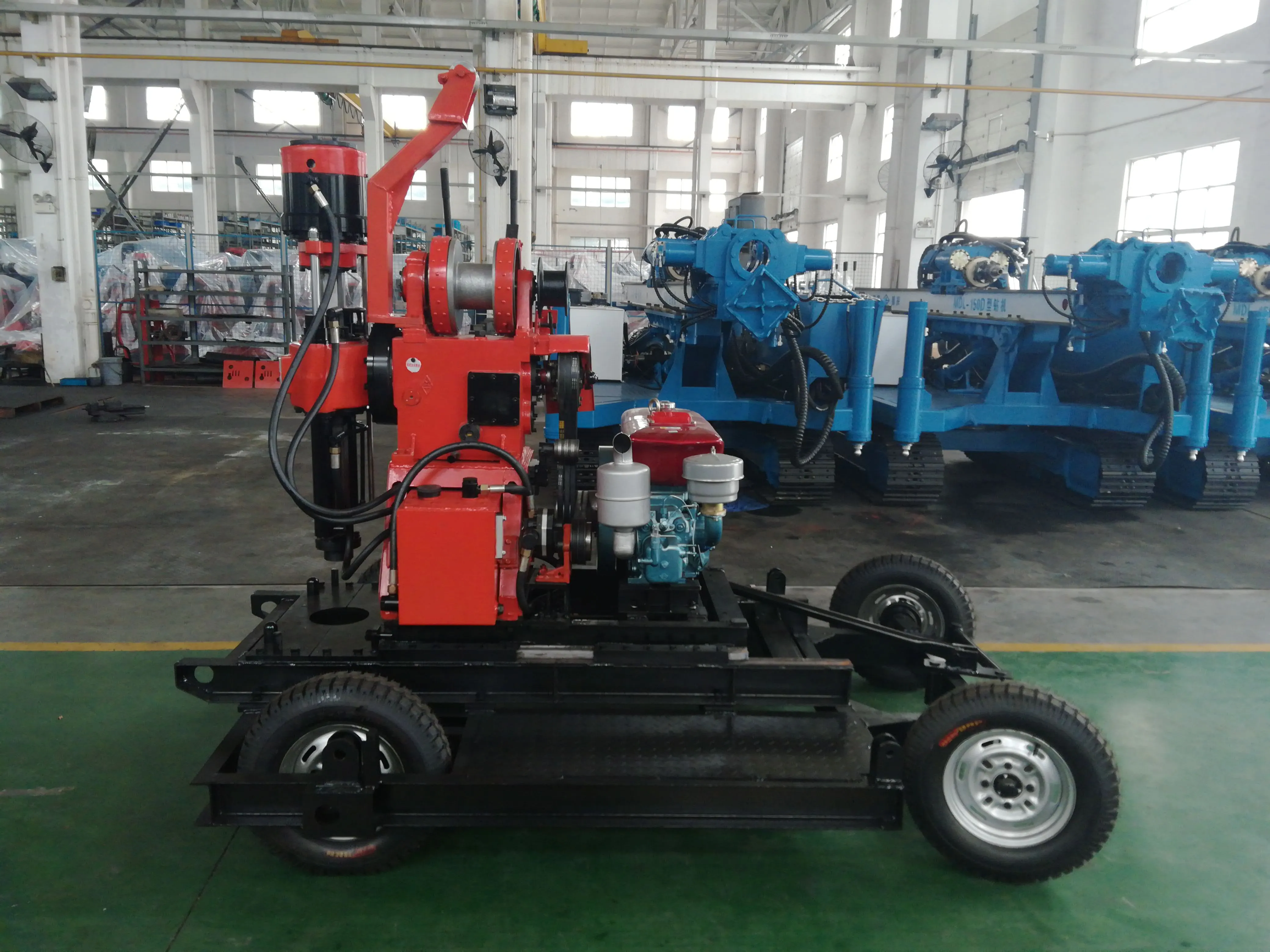

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEGXY-1C
Hole dia.(mm)φ150~φ75
Hole depth (m)50~150
Rod diameter(mm)φ43(42)
Hole angle(°)360(Reference)
Power head output speed (r/min)Forward rotation 82/220/465/883, reverse rotation 61
Stroke (mm)500
Spindle feed force (kN)20
Spindle lifting capacity (kN)25
Drilling rod clamping typeHydraulic Chuck Type
Making-way type for hole collarHydraulic control backward movement of power head
Host lifting capacity (kN)15
Host lifting speed (m/s)0.22、0.95、1.95、5.3
Diesel engine (KW)13KW，2200r/min
Motor (KW)11KW，1500r/min
Dimensions (mm)1980×970×1400
Weight (kg)~650


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
