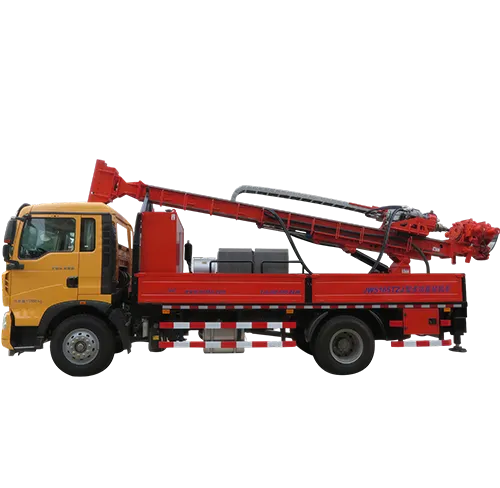

G SERIES
VEHICLE-MOUNTED MULTIFUNCTIONAL DRILLING RIG

It is mainly used for large-scale industrial and civil construction as well as highway, high-speed railway, subway, bridge, dam, national defense construction and other engineering geological survey, as well as hydrogeological census, simple water wells physical exploration blast holes and small-scale column pile shallow hole driling.

G SERIESVEHICLE-MOUNTED MULTIFUNCTIONAL DRILLING RIG

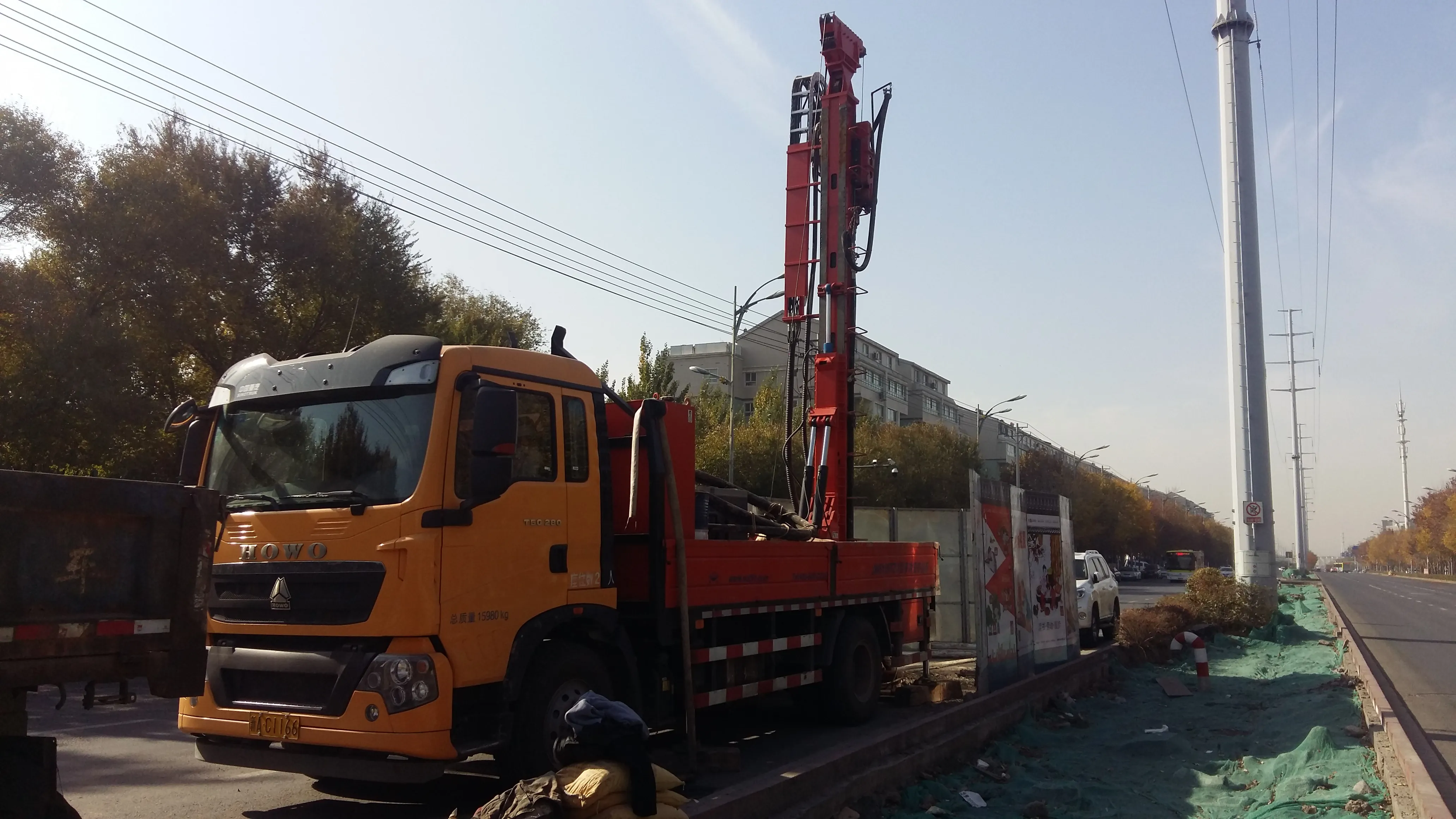

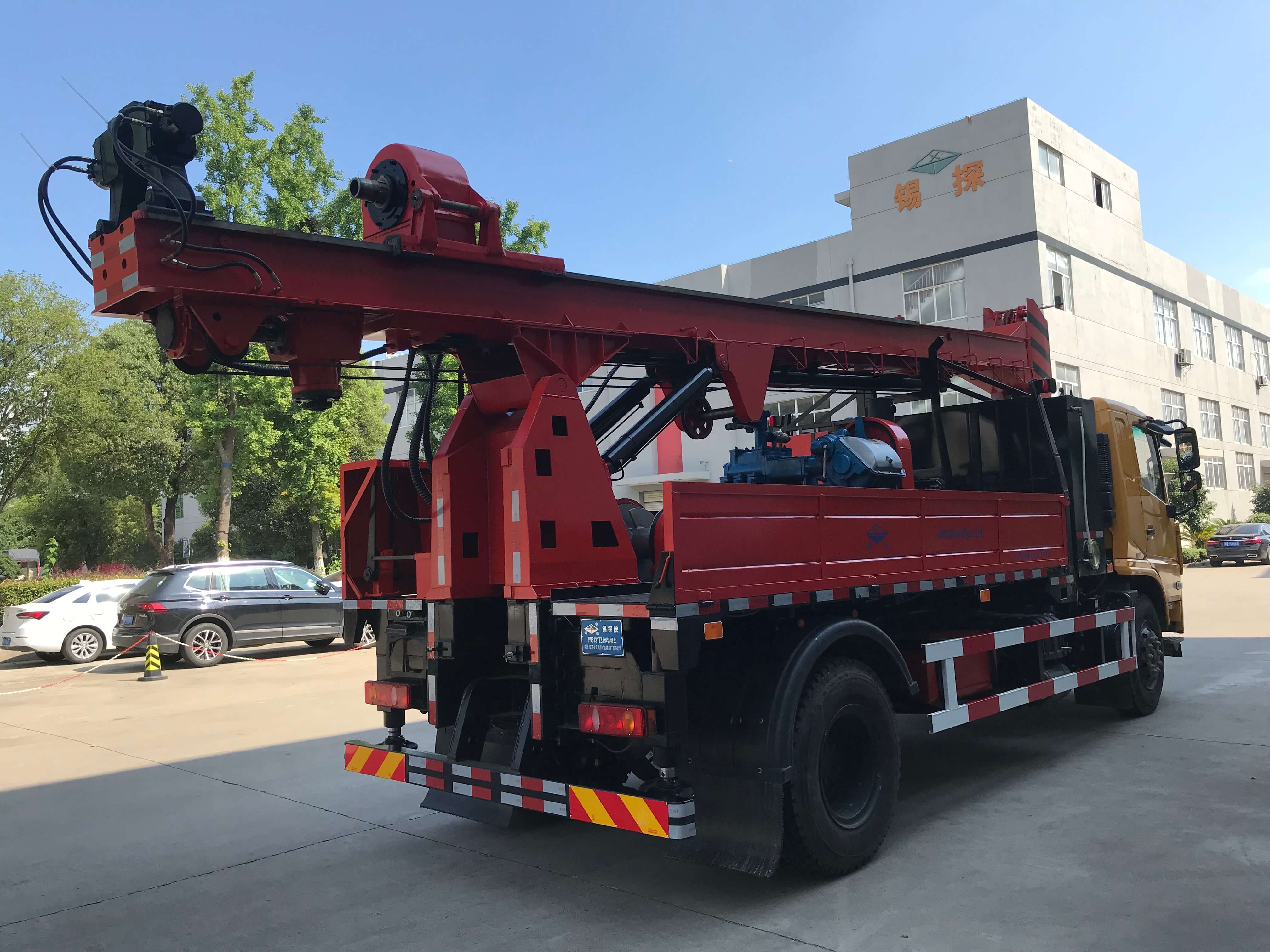

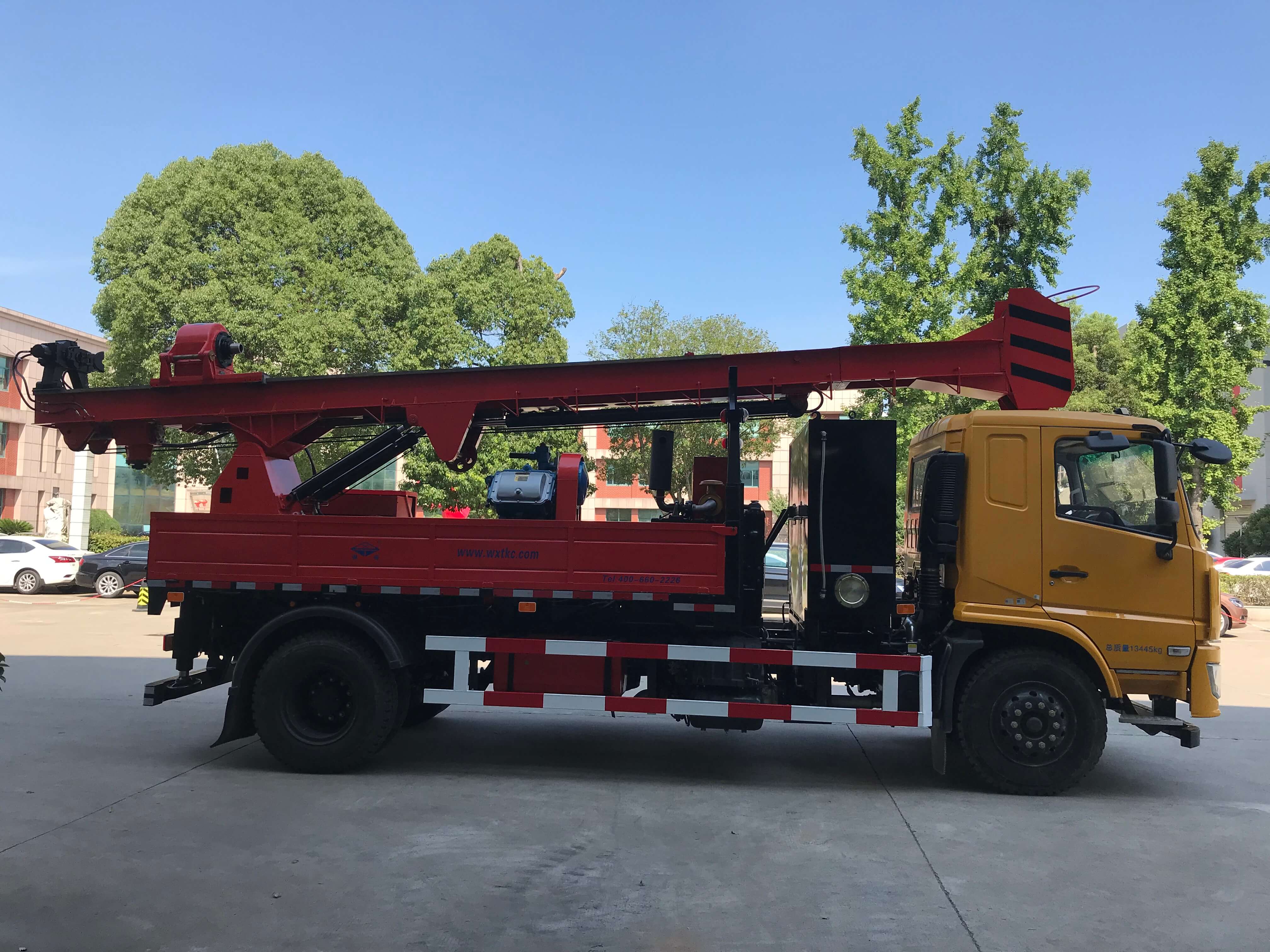

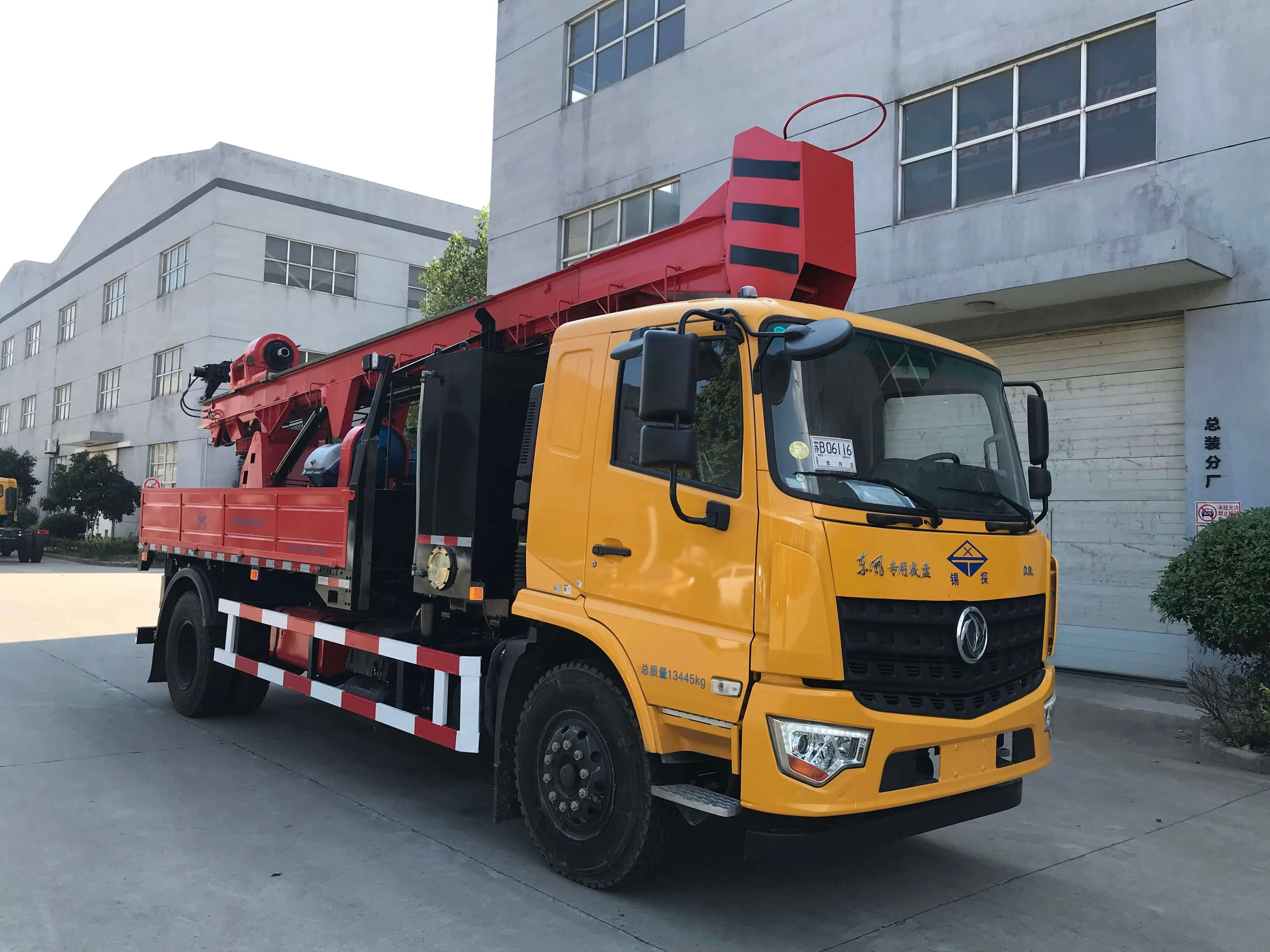

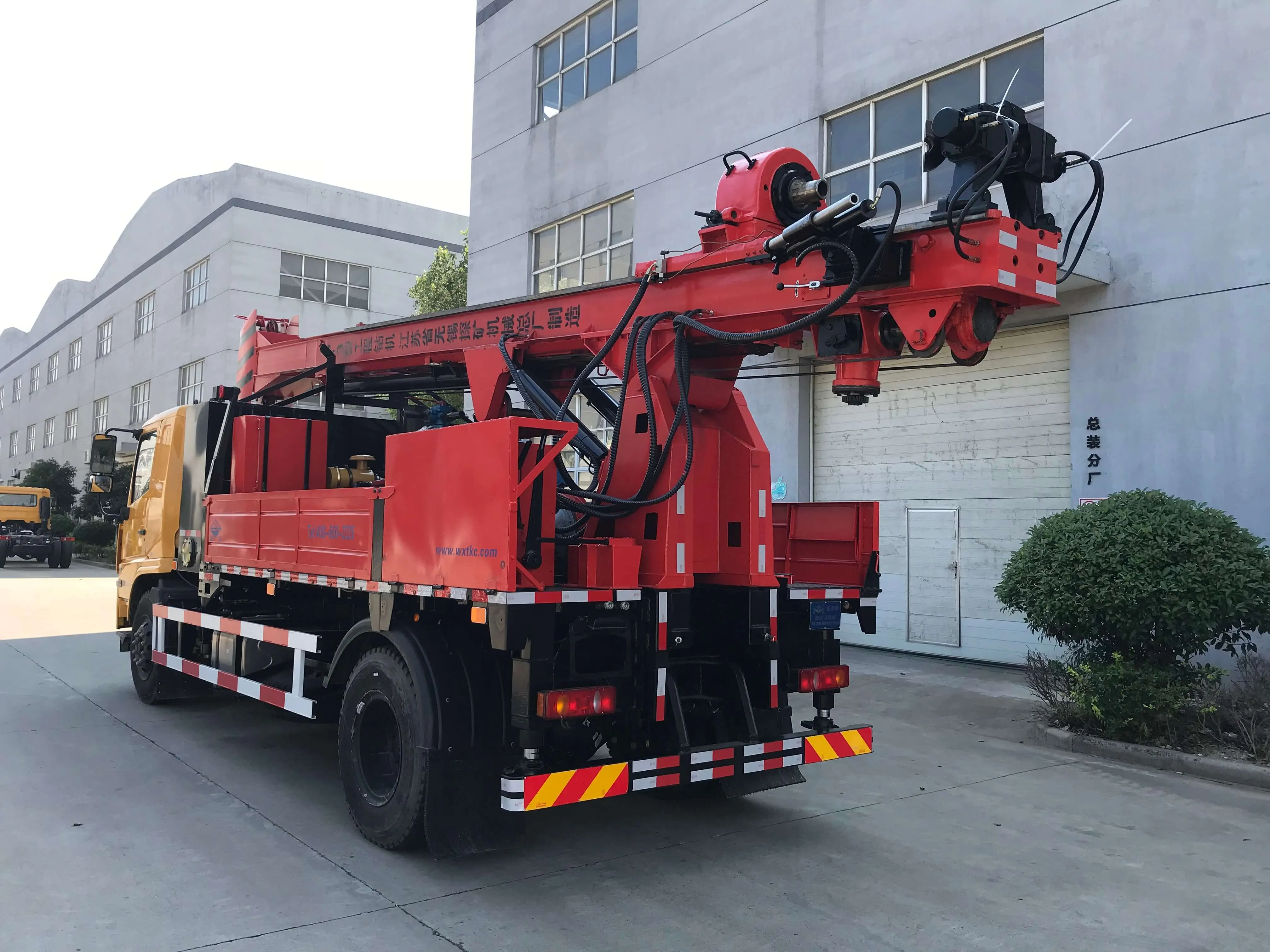

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

Technical parameterGXY-1GXY-1AGXY-1BGXY-1CGXY-1D
Hole dia. (mm)φ150~φ75φ150~φ75φ150~φ75φ150~φ75φ150~φ75
Hole depth (m)50~15050~15050~15050~15050~150
Rod diameter (mm)φ43(42)φ43(42)φ43(42)φ43(42)Max to φ60
Hole angle (°)360 (Reference)360 (Reference)360 (Reference)360 (Reference)360 (Reference)
Power head output speed (r/min)Forward 61/163/338/654, Reverse 45Forward 61/163/338/654, Reverse 45Forward 61/163/338/654, Reverse 45Forward 82/220/465/883, Reverse 61Forward 61/163/338/654, Reverse 45
Stroke (mm)500500500500500
Spindle feed force (kN)2020202020
Spindle lifting capacity (kN)2525252525
Drilling rod clamping typeBall chuck typeBall chuck typeBall chuck typeHydraulic chuck typeHydraulic chuck type
Making-way type for hole collarPower head open typePower head open typePower head open typePower head hydraulic control backward movementPower head hydraulic control backward movement
Hoist lifting capacity (kN)1515151515
Hoist lifting speed (m/s)0.2/0.52/1.05/2.060.2/0.52/1.05/2.060.22, 0.95, 1.95, 5.30.22, 0.95, 1.95, 5.30.22, 0.95, 1.95, 5.3
Diesel engine (kW, r/min)13kW, 2200r/min13kW, 2200r/min13kW, 2200r/min13kW, 2200r/min13kW, 2200r/min
Motor (kW, r/min)11kW, 1500r/min11kW, 1500r/min11kW, 1500r/min11kW, 1500r/min11kW, 1500r/min
Dimensions (mm)1450×970×12801450×970×12801450×970×12801980×970×14001980×970×1400
Weight (kg)~500~500~500~650~650


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
