HT SERIES
DIRECT PUSH SAMPLING DRILLING TOOL

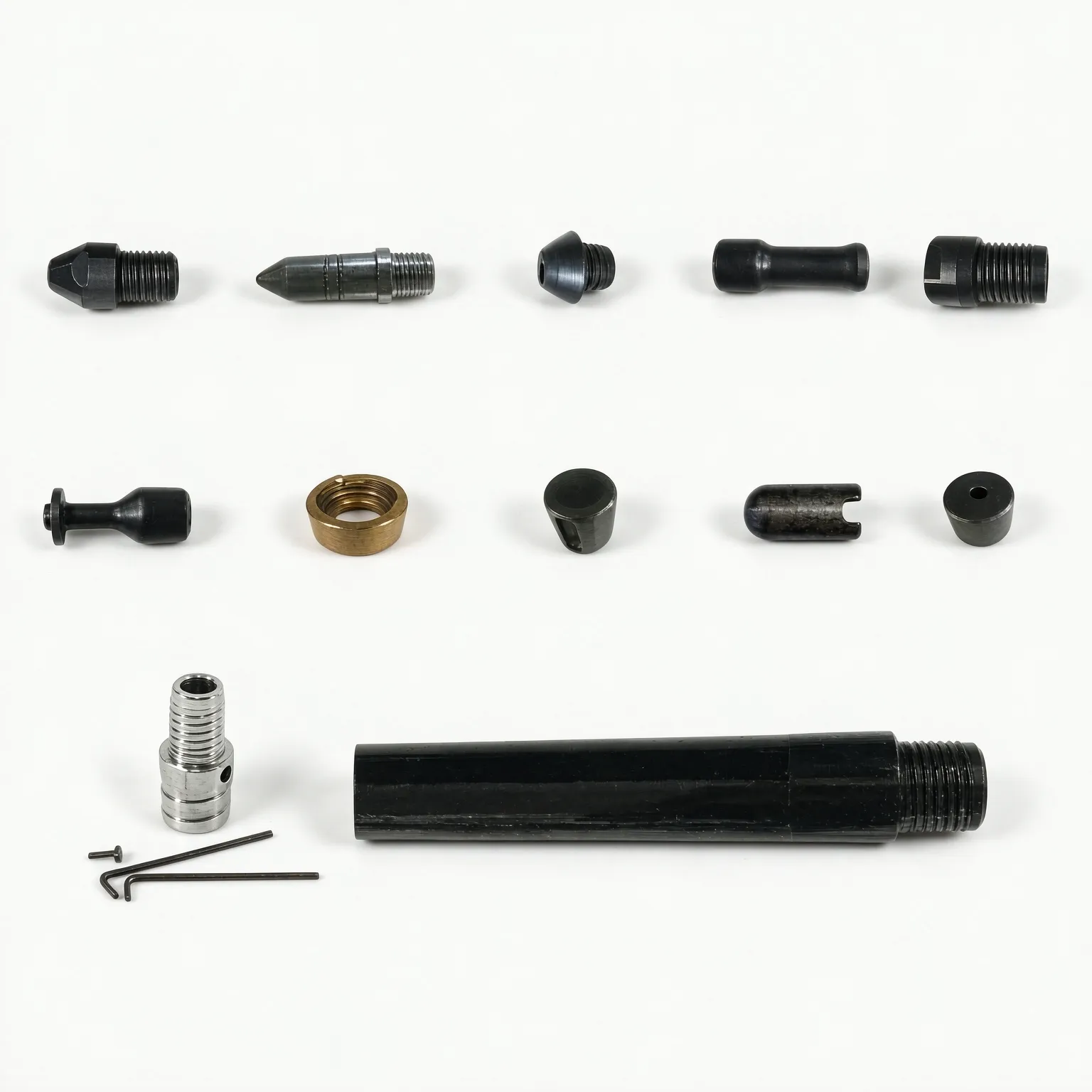

HT Series direct-push sampling tooling is engineered for undisturbed soil sampling and groundwater monitoring, comprising a complete set of accessories including soil sampling bits, inner drive heads, center rods and core barrel adapters, compatible with soil sampling tubes, water sampling tubes and screened well pipes (e.g. Φ89×4.7 mm). Using direct-push technology, it retrieves minimally disturbed soil and water samples without drilling fluid, making it ideal for geotechnical investigation, environmental site assessment and monitoring well construction. Available in a range of sizes and configurations, the series offers reliable structure and quick assembly to suit varied ground conditions and sampling depths.

HT SERIESDIRECT PUSH SAMPLING DRILLING TOOL

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NameDrawing No.Note
2.25 Inch soil sampling drilling bitHT60-1500-7
3.5 Inch soil sampling drilling bitHT89-1500-7
2.25 Inch inner punchHT60-1500-8
3.5 Inch inner punchHT89-1500-8
2.25 Inch discarded drill bitHT60-1500-9
3.5 Inch discarded drill bitHT89-1500-9
2.25 Inch holding shaftHT60-1500-1
3.5 Inch holding shaftHT89-1500-1
2.25 Inch drilling bit seatHT60-1500-10
3.5 Inch drilling bit seatHT89-1500-10
2.25 Inch elevating connectorHT60-1500-14
3.5 Inch elevating connectorHT89-1500-14
Impact fenderHT60-1500-11
Impact anvilHT60-1500-12
Block pinHT60-1500-13
Impact capHT60-1500-2
1.25 Inch soil sampling center pipeHT60-1500-3Φ32×1.5m/1m
2.25 Inch core sampling tube jointHT60-1500-4
3.5 Inch core sampling tube jointHT89-1500-4
2.25 Inch soil sampling outer tubeHT60-1500-5Φ60×1.5m/1m
3.5 Inch soil sampling tubeHT89-1500-5Φ89×1.5m/1m
2.25 Inch core sampling tubeHT60-1500-6
3.5 Inch core sampling tubeHT89-1500-6
3.5 Inch water filter tubeHT89-1500-6a


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
