HX SERIES
SPIRAL WELL DRILLING TOOL

HX Series auger well-construction drilling tools form a complete auger drilling assembly for water well and monitoring well completion, consisting of auger casings, auger bits, auger drive heads, hex drive heads, drill rods and rock cutting heads, together with auxiliary parts such as wooden plugs, lifting forks, collar plates and positioning bolts. Using continuous auger spoil removal, the system allows hole formation and casing installation to proceed simultaneously, delivering stable borehole walls and high productivity in soil, gravel-bearing and weathered formations. Auger casings are offered in multiple inch sizes with matching diameters and single-section lengths, enabling flexible selection for various well diameters and completion depths.

HX SERIESSPIRAL WELL DRILLING TOOL

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NameDrawing No.Note

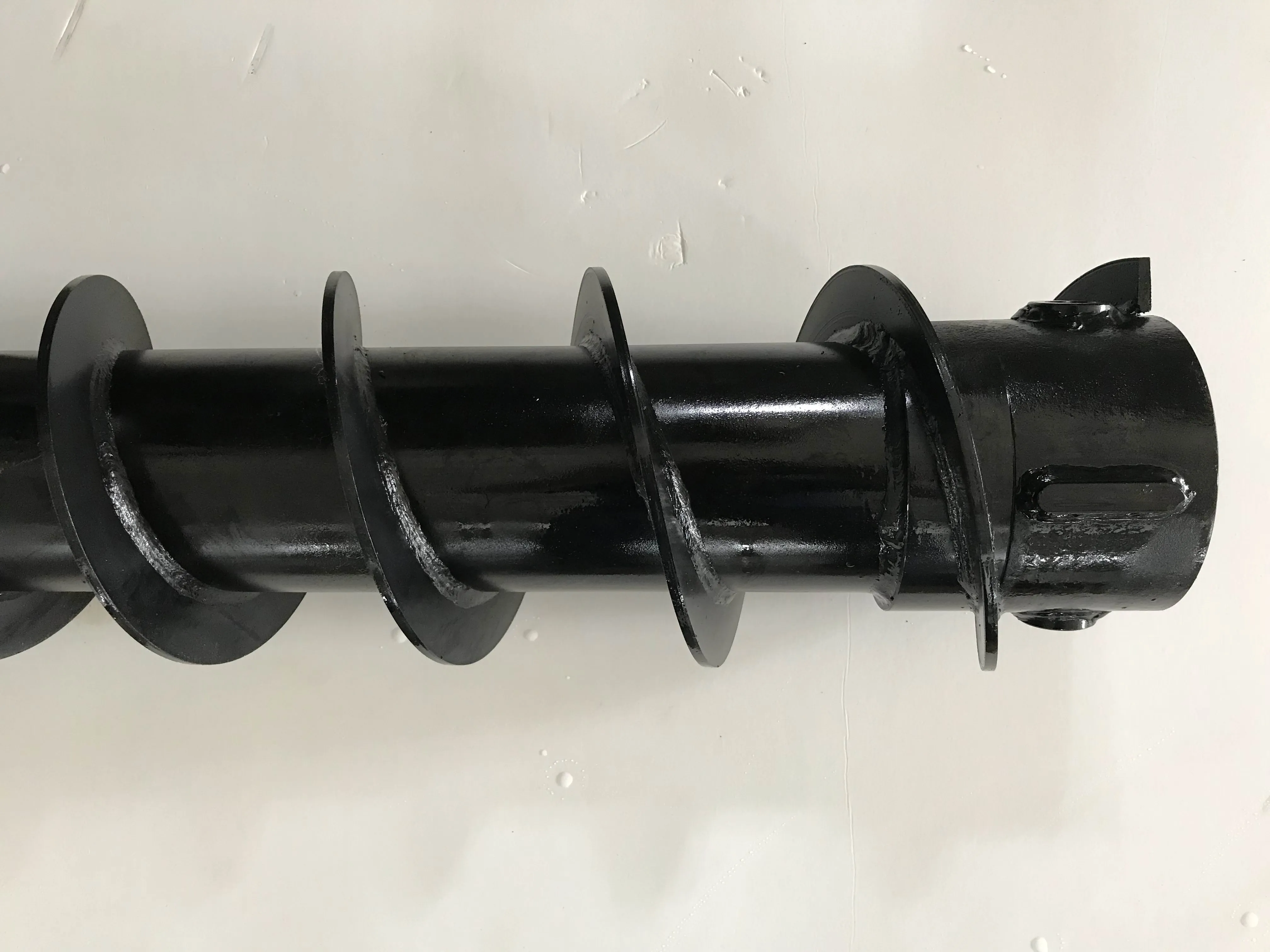

2.25-Inch spiral sleeveHX90-1500-3-0Φ166×1.5m/1m
2.25-Inch drive headHX90-1500-1-0
2.25-Inch spiral drill bitHX90-1500-4-0
2.25-Inch wooden stopperHX90-1500-5
2.25-Inch orifice plateHX90-1500-7-0
4.25-Inch wooden stopperHX108-1500-5
4.25-Inch lifting forkHX108-1500-6-0
4.25-inch orifice plateHX108-1500-7-0
4.25-Inch spiral sleeveHX108-1500-3-0Φ194×1.5m/1m
4.25-Inch spiral drive headHX108-1500-1-0
4.25-Inch spiral drill bitHX108-1500-4-0
6.25-Inch spiral sleeveHX158-1500-3-0Φ260×1.5m/1m
6.25-Inch drive headHX158-1500-1-0
6.25-Inch spiral drill bitHX158-1500-4-0
6.25-Inch wooden stopperHX158-1500-5
6.25-Inch orifice plateHX158-1500-7-0
Hexagonal drive headHCR38-1500-1
Drill rodHCR38-1500-2

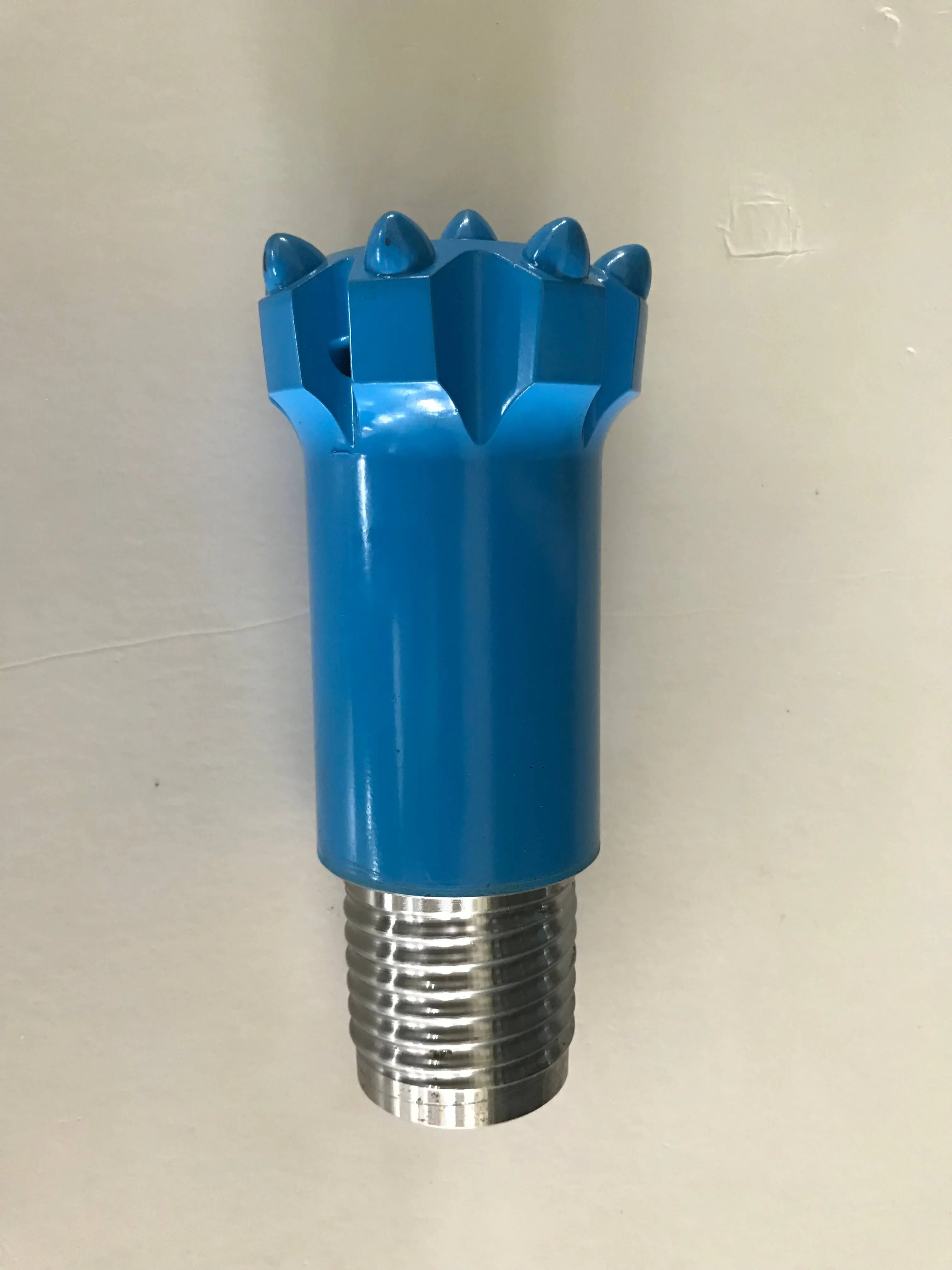

73 Rock breaking headHCR38-1500-3Φ73
89 Rock breaking headHCR38-1500-4Φ89
Positioning boltHX108-1500-2


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
