XP ELEVATED
JET GROUTING DRILLING RIG SERIES

Dual-purpose drilling rig suitable for high-pressure jet grouting and anchoring construction techniques, deep hole piles can be driven to the bottom in one shot.

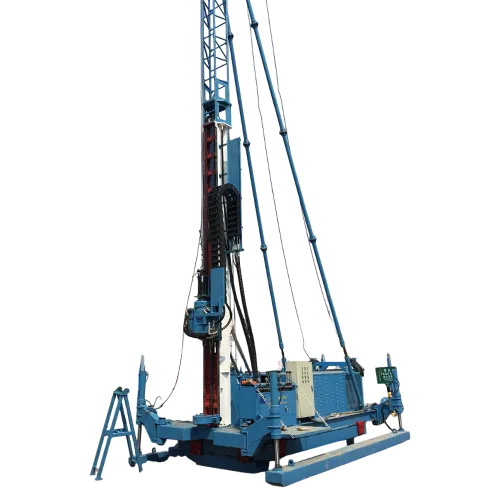

XP ELEVATEDJET GROUTING DRILLING RIG SERIES

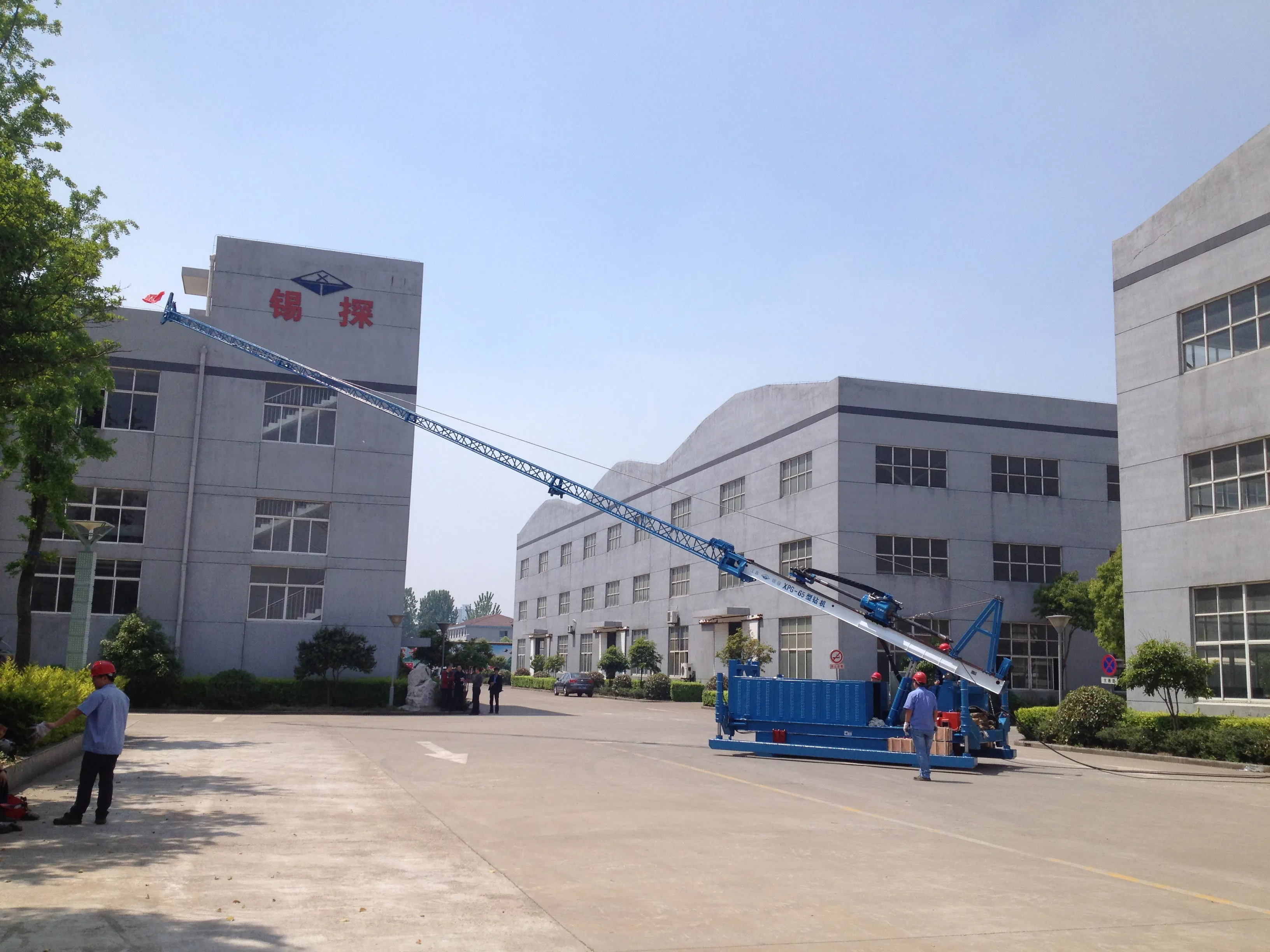

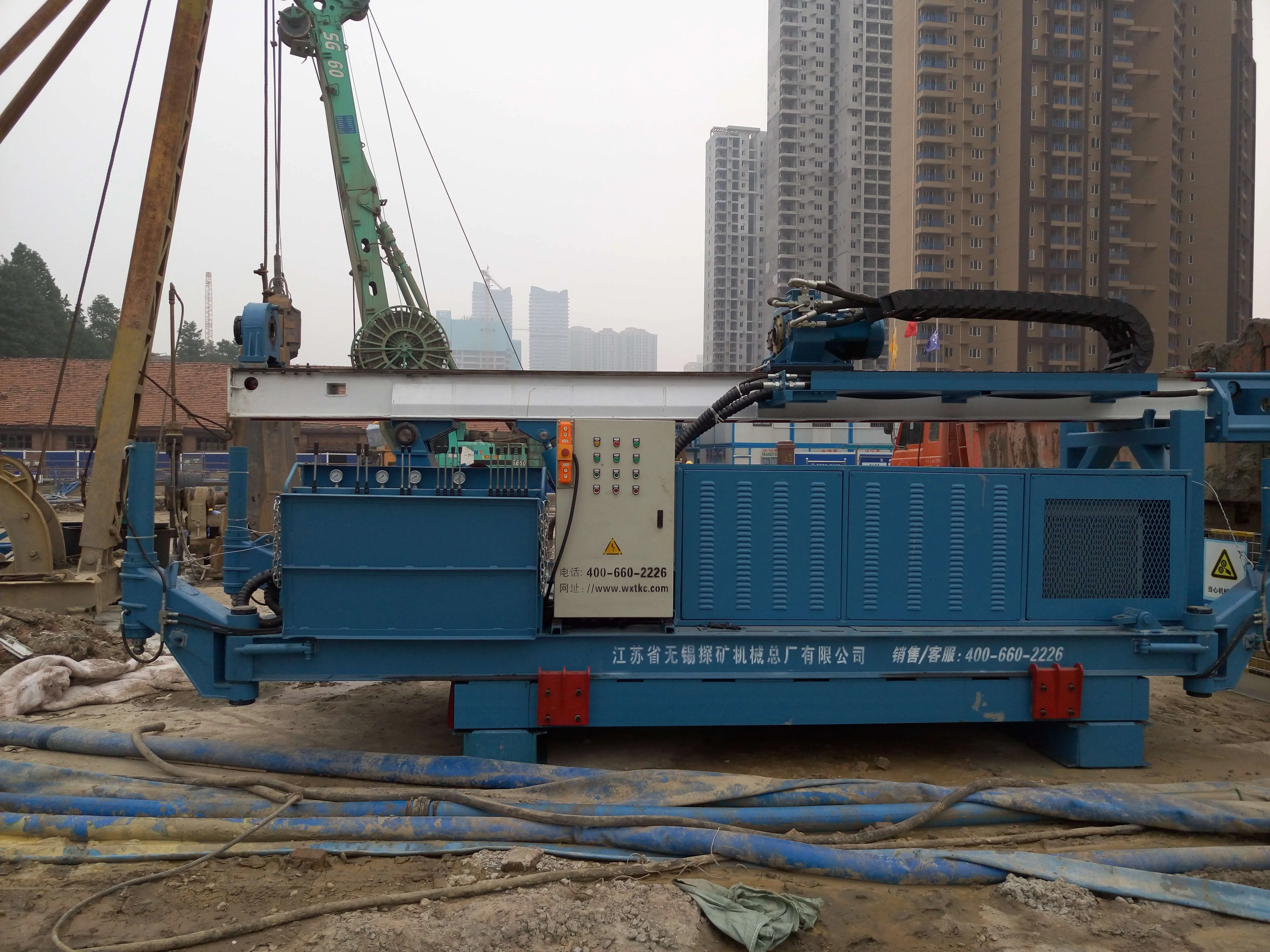

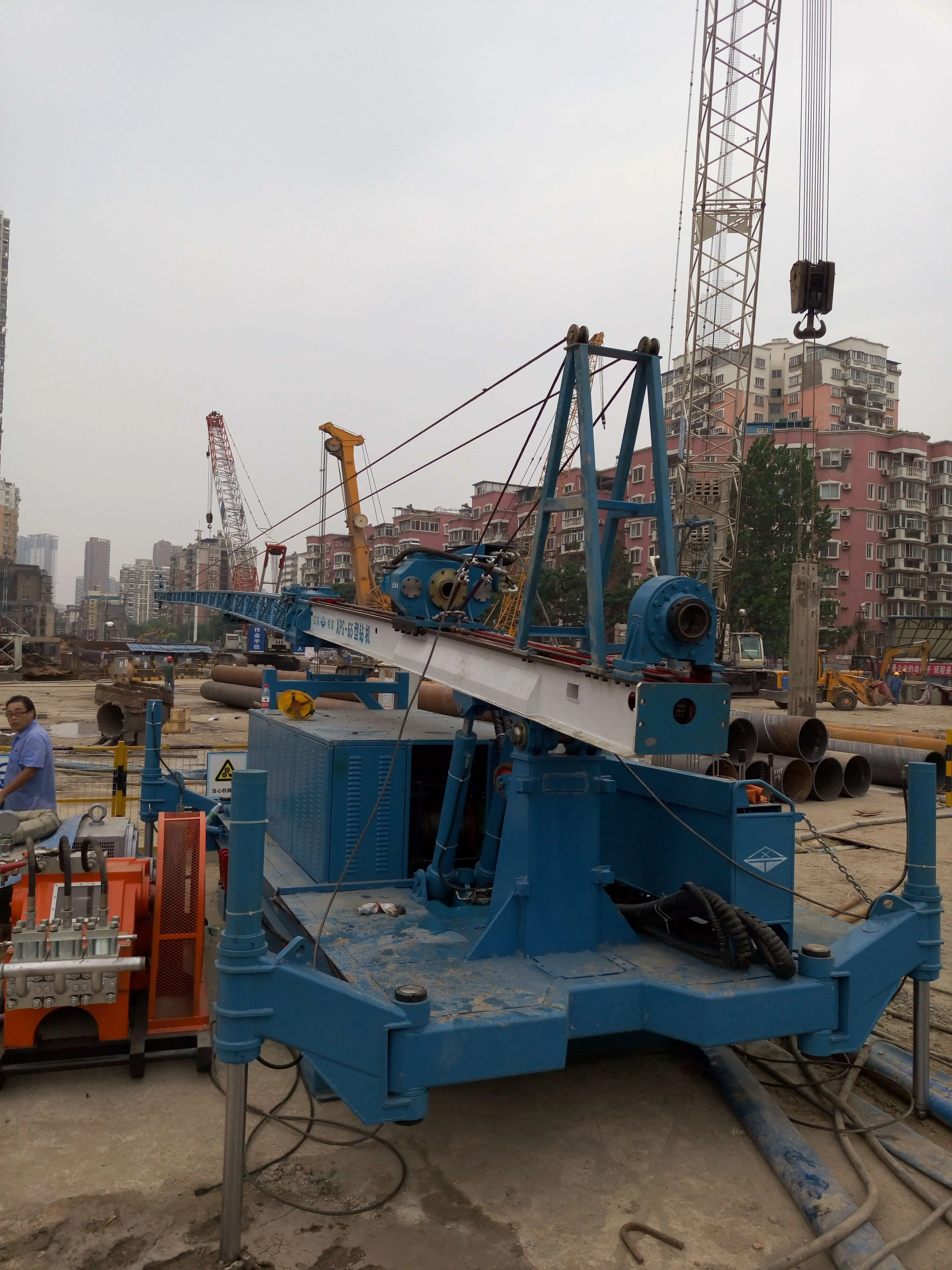

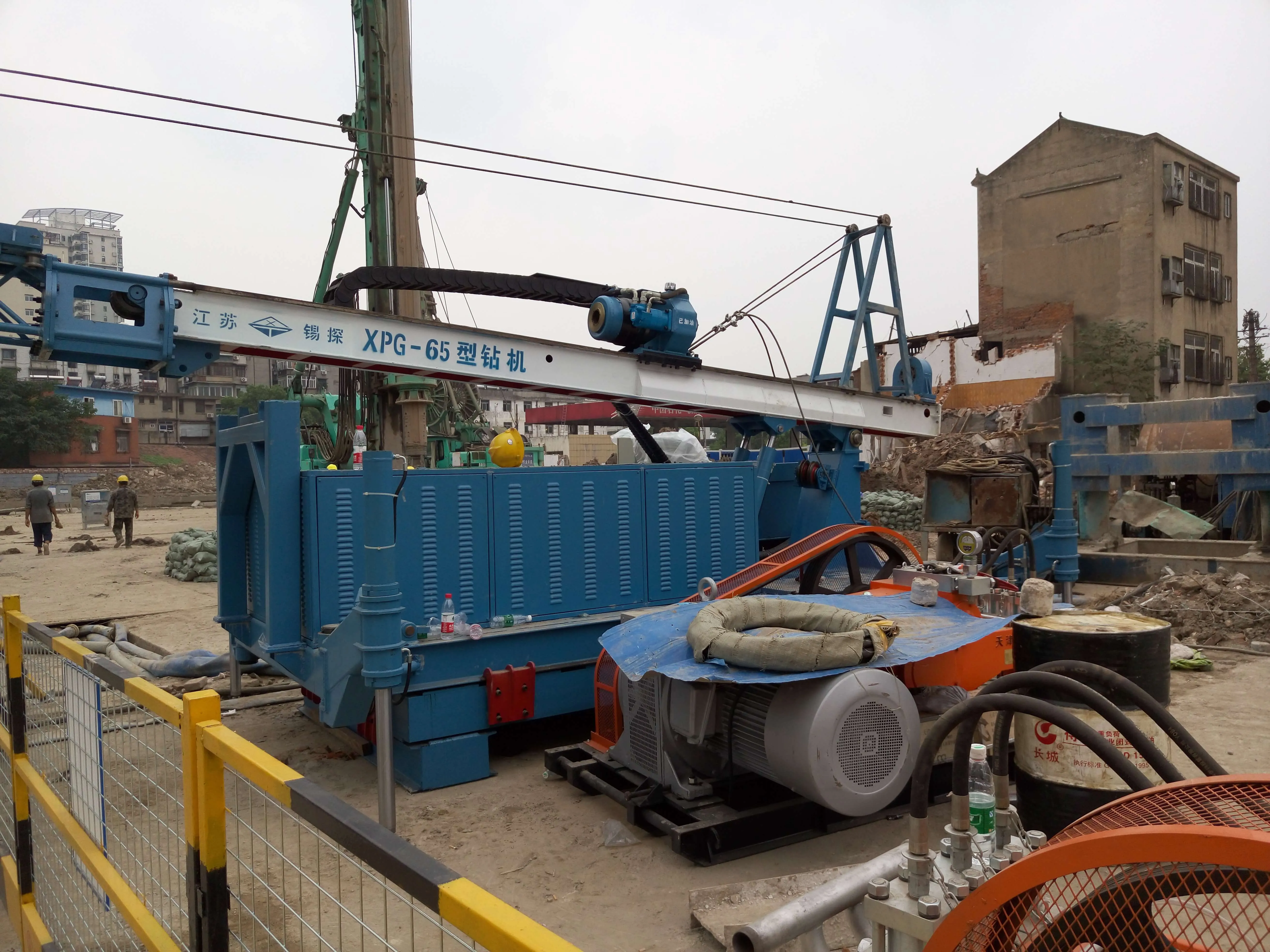

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEXPG-65
Jet grouting constructionSingle, double, triple Weight
Pile diameter(mm)400-600、600-1200、800-1600
Maximum piling depth without jointing(m)26+3 optional
Drilling diameter(mm)φ150-φ250
Drilling depth(m)60~80
Diameter of drill pipe(mm)φ50、φ60、φ73、φ76、φ89
Drill pipe inclination angle (°)0~90
Rotor output speed(r/min)0~12.5/0~25/50/62/100/125
Rotor output torque(Nm)7000
Stroke of rotor(mm)4000
Lifting force of rotor(kN)70
Lifting speed of rotor(m/min)0-1.3,8/18/27
Rotor pressurizing force(kN)36
Rotor pressurizing speed(m/min)2.5,16/36/53


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
