XT-520
MICRO CLEARANCE MULTIFUNCTIONAL SMART DRILLING RIG

Suitable for the construction of micro clearance spiral piles, rotary jet mixing piles,rotary excavation piles, etc. in existing building basements, urban pipe corridors, etc.

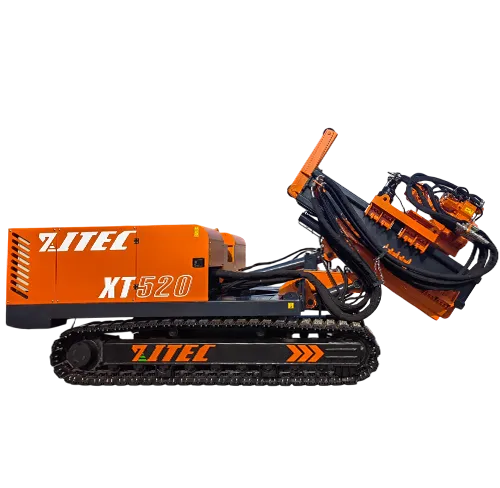

XT-520MICRO CLEARANCE MULTIFUNCTIONAL SMART DRILLING RIG

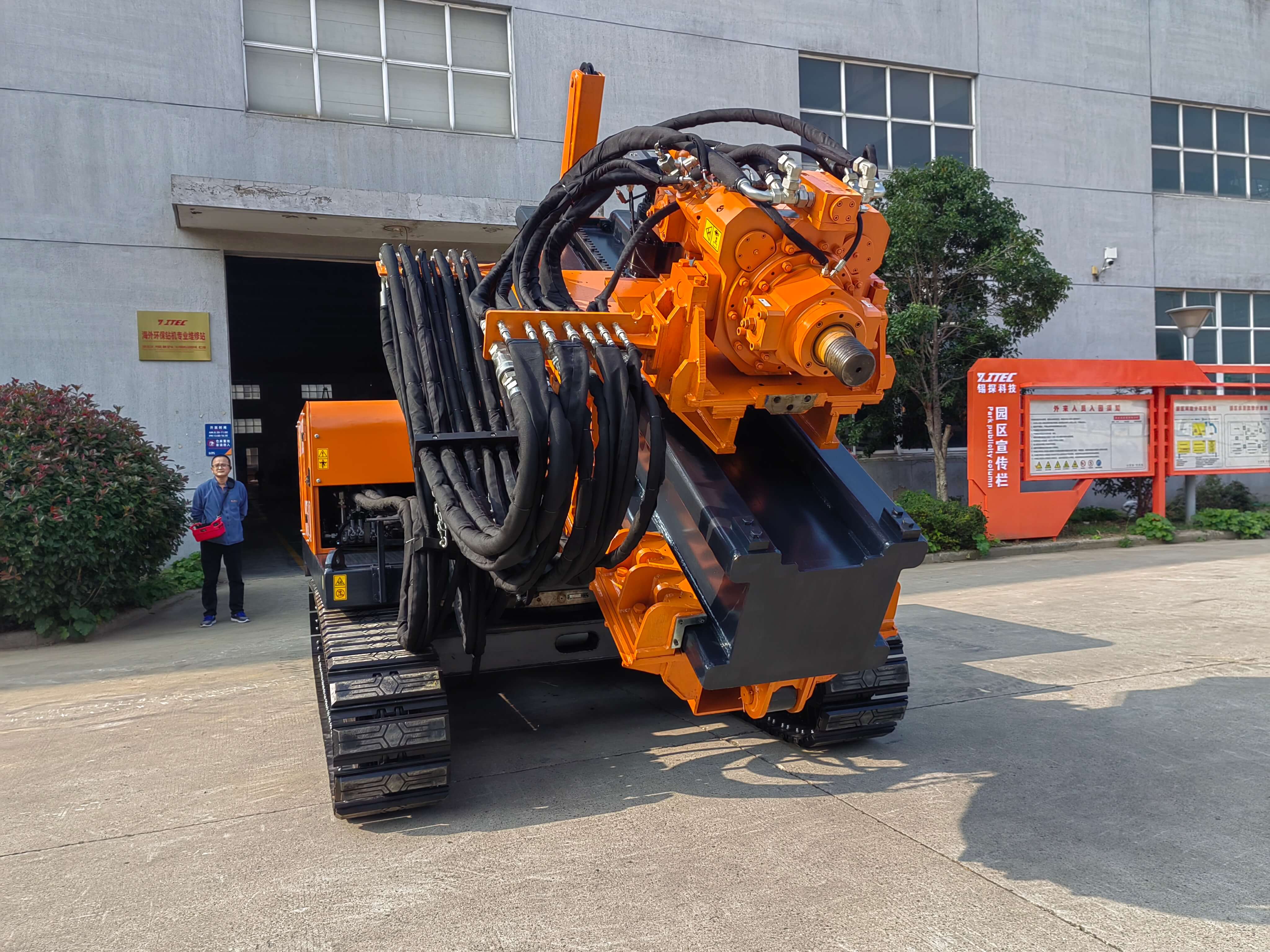

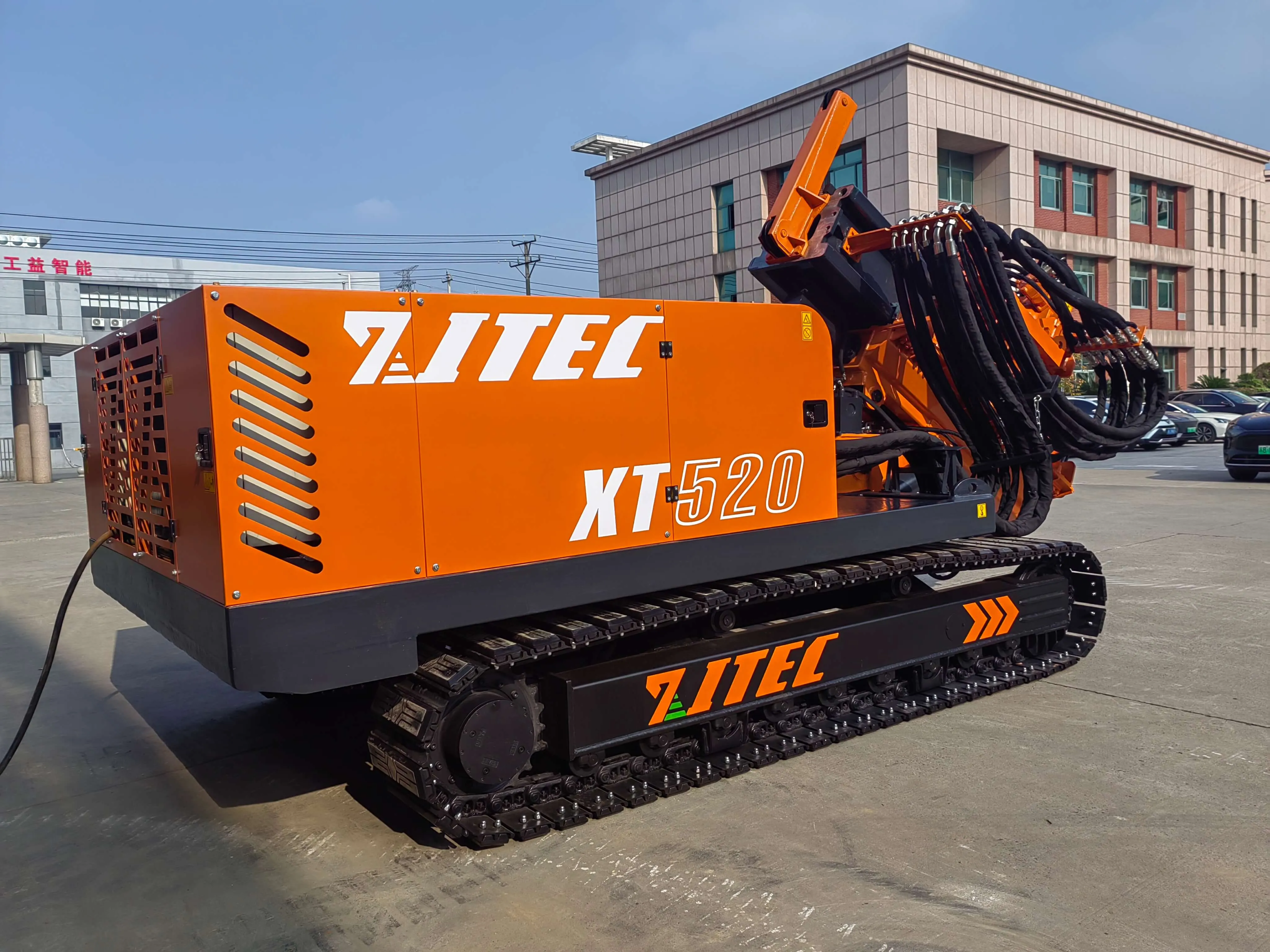

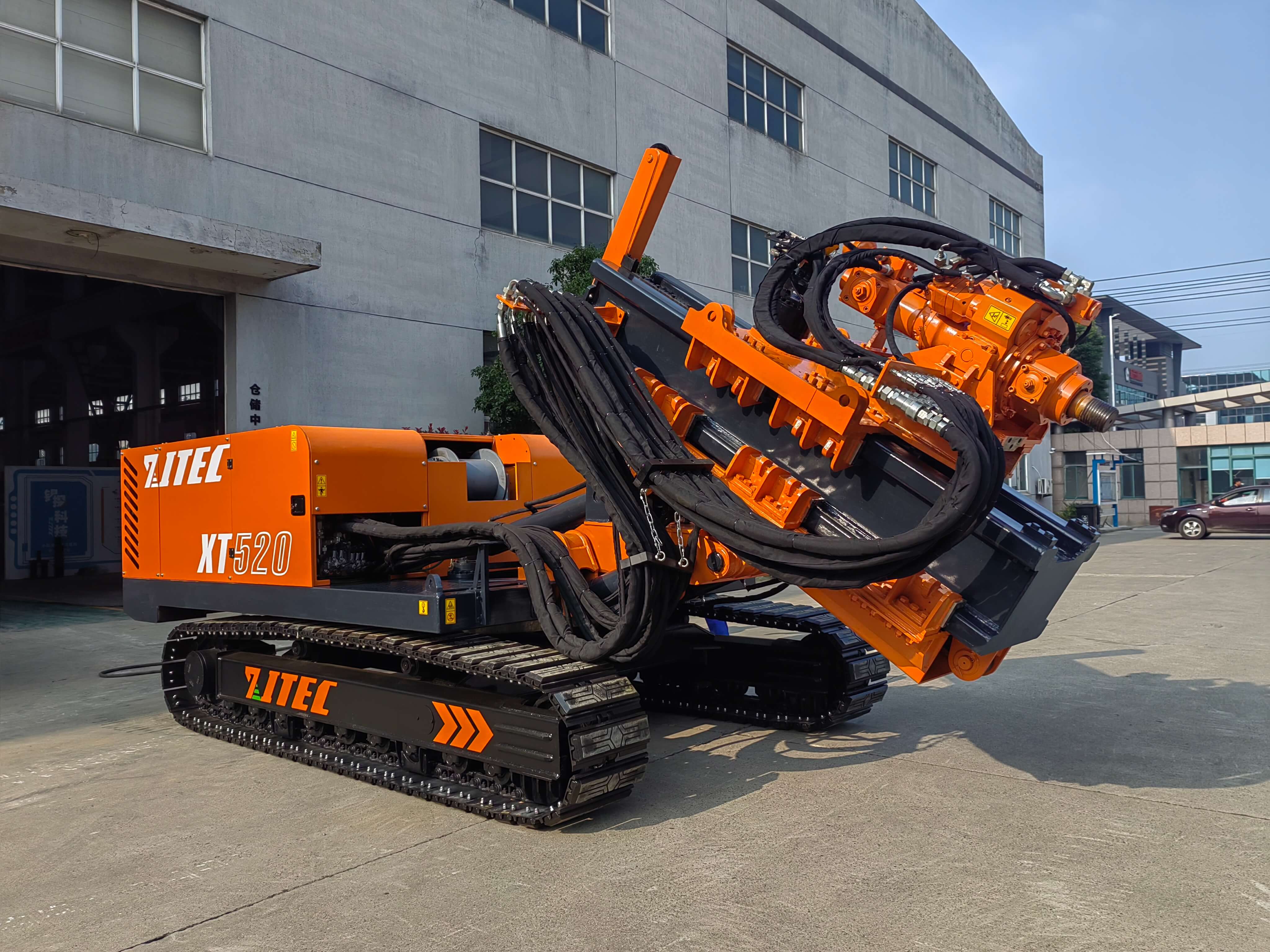

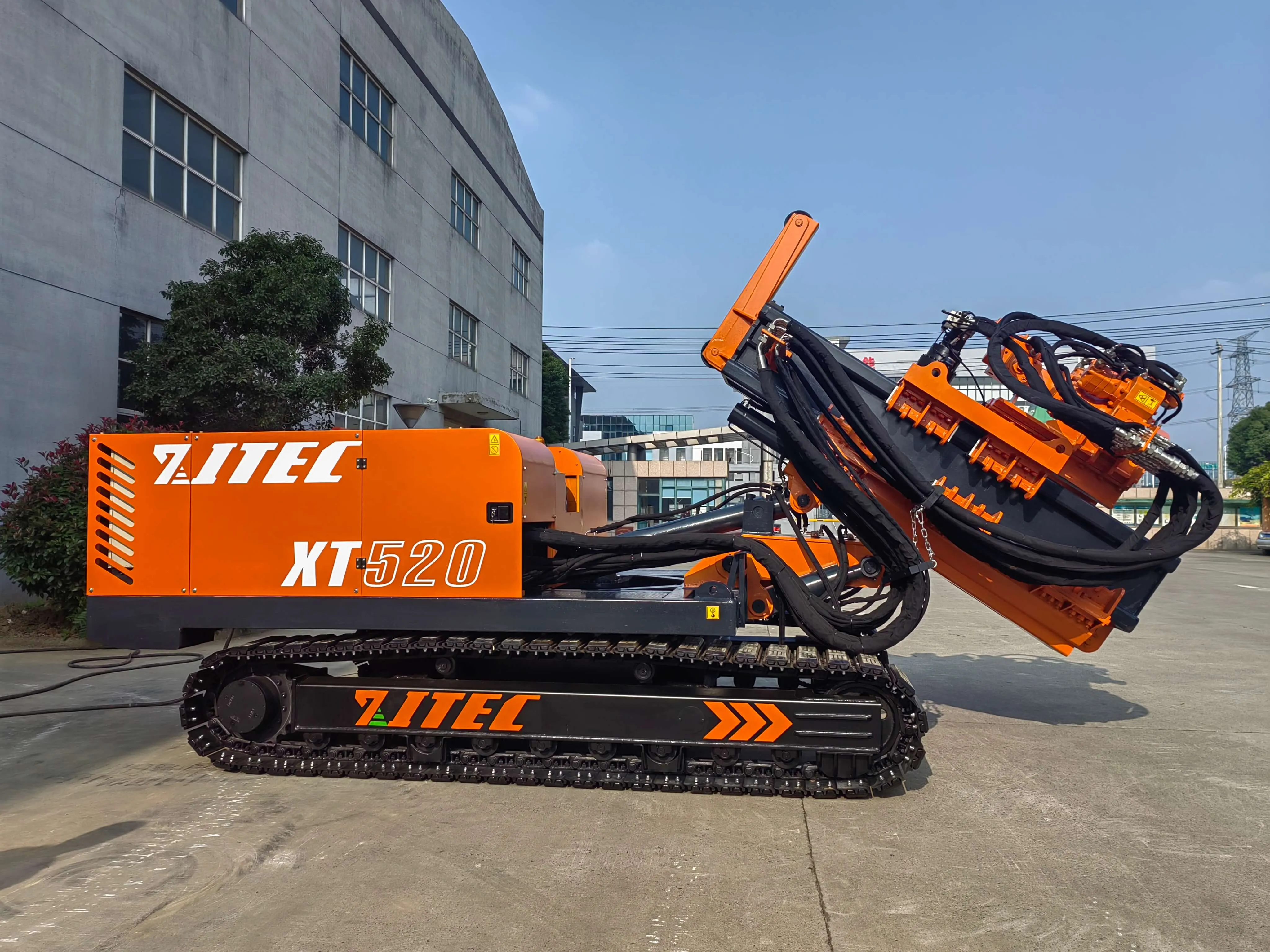

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NameXT-520
Maximum output torque Nm128000
Maximum output speed rpm10.5
Maximum output torque Nm140000
Maximum output speed rpm18
Maximum output torque Nm14000
Maximum output speed rpm77
Impact energy J900
Impact frequency bpm1200~2100
Power head travel mm1500
Slip stroke mm1700
Power head lifting force T10
Auxiliary crane T3
Walking speed Km/h1.7~3
Track width mm450
Total length of track mm3971
Construction coordinatesWithin the first basement
Construction angle±0.3
Drilling depth m±0.1
Input power (electric motor) Kw75+75
Transportation dimensions: LxWxH mm6800×2600×2530
Total weight T15~16


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.

WHEREVER THERE IS ENGINEERING IN THE WORLD
THERE IS INTELLIGENT EQUIPMENT OF XITEC.
