XT-650G
ELEVATED JET GROUTING DRILLING RIG

Suitable for various soft ground improvement works, seepage control in high-rise building basements, rehabilitation of levees and dams along major rivers, and strengthening of railway and highway bridge piers.

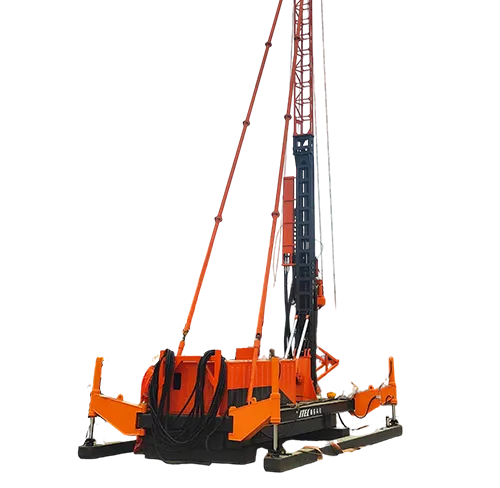

XT-650GELEVATED JET GROUTING DRILLING RIG

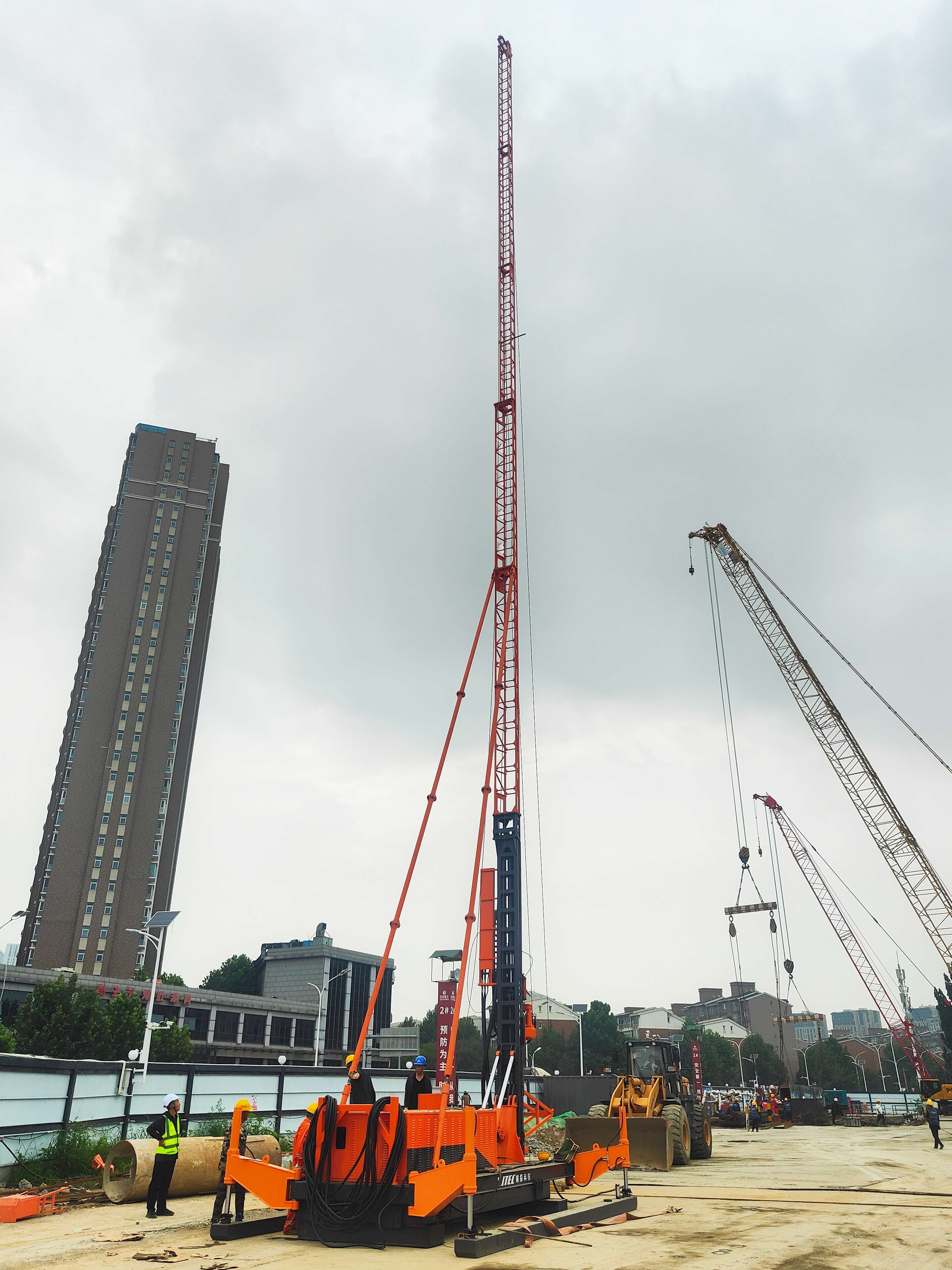

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NameXT-650G
Drilling depth(m)60~80
Power head feeding stroke(mm)4000
Power head output speed(r/min)0~12.5/0~25/50/62/100/125
Power head lifting speed(m/min)0~1.3 adjustable, 8/18/27
Power head feeding speed(m/min)2.5/16/36/53
Power head lifting force / Feeding force(kN)70/36
Max output torque of power head(Nm)7000
Auxiliary tower height(mm)26000 (5 sections)
Max depth without rod connection(mm)30000
Single shift distance (mm)Longitudinal 900 , Transverse 600
Input power(kW)55+11+3
Working size(Vertical)(LxWxH mm)6420×4160×33100
Transport size(L×W×H)(mm)7840×2100×2720
Weight(kg)11000


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
