XT-100
MULTIFUNCTIONAL DRILLING RIG

Widely used in geotechnical investigation, geological coring, anchoring and jet grouting, soil sampling, environmental remediation, and top-drive rock drilling.

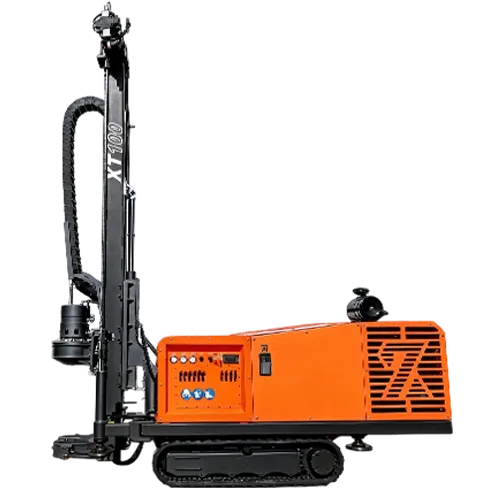

XT-100MULTIFUNCTIONAL DRILLING RIG

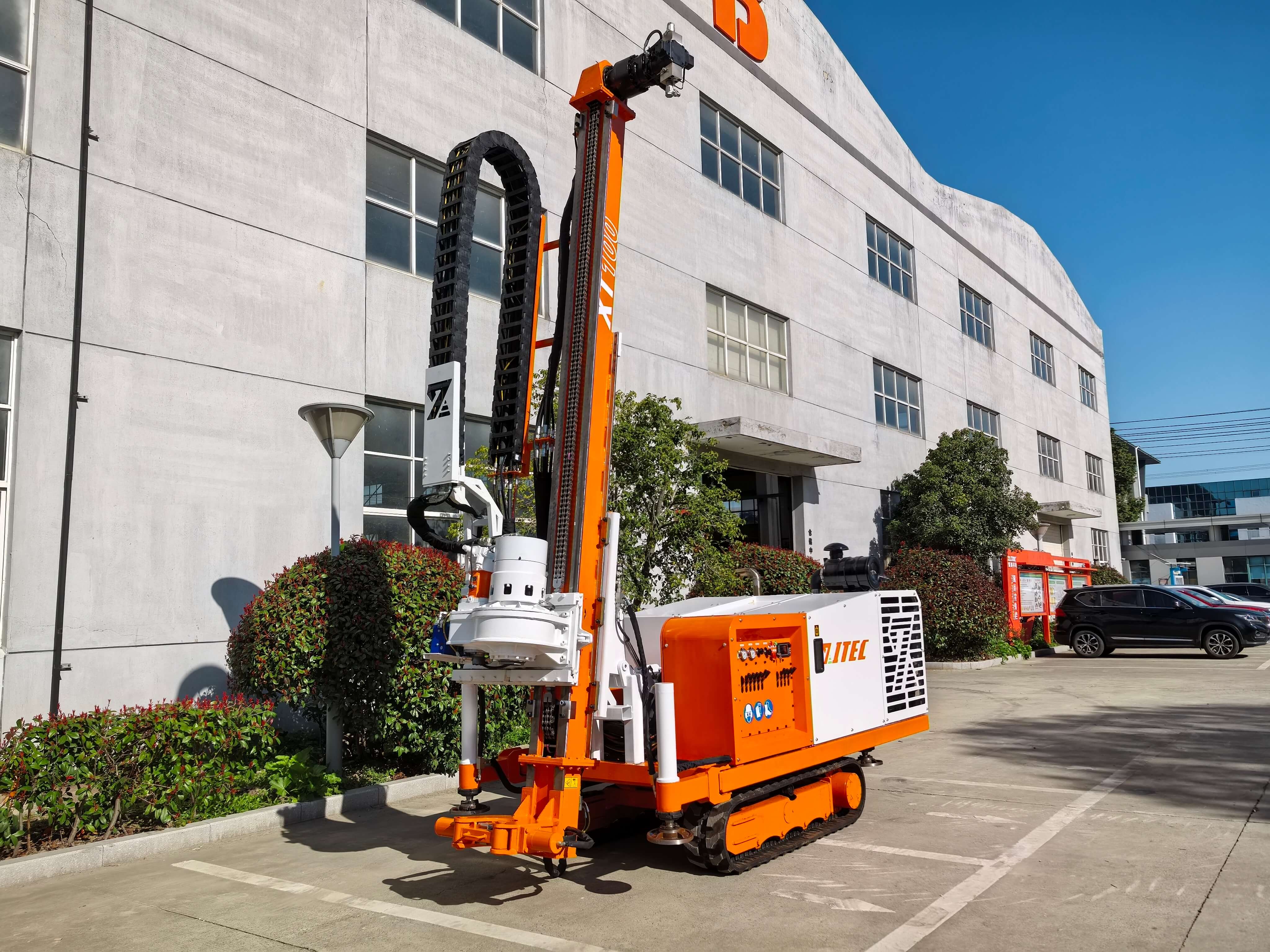

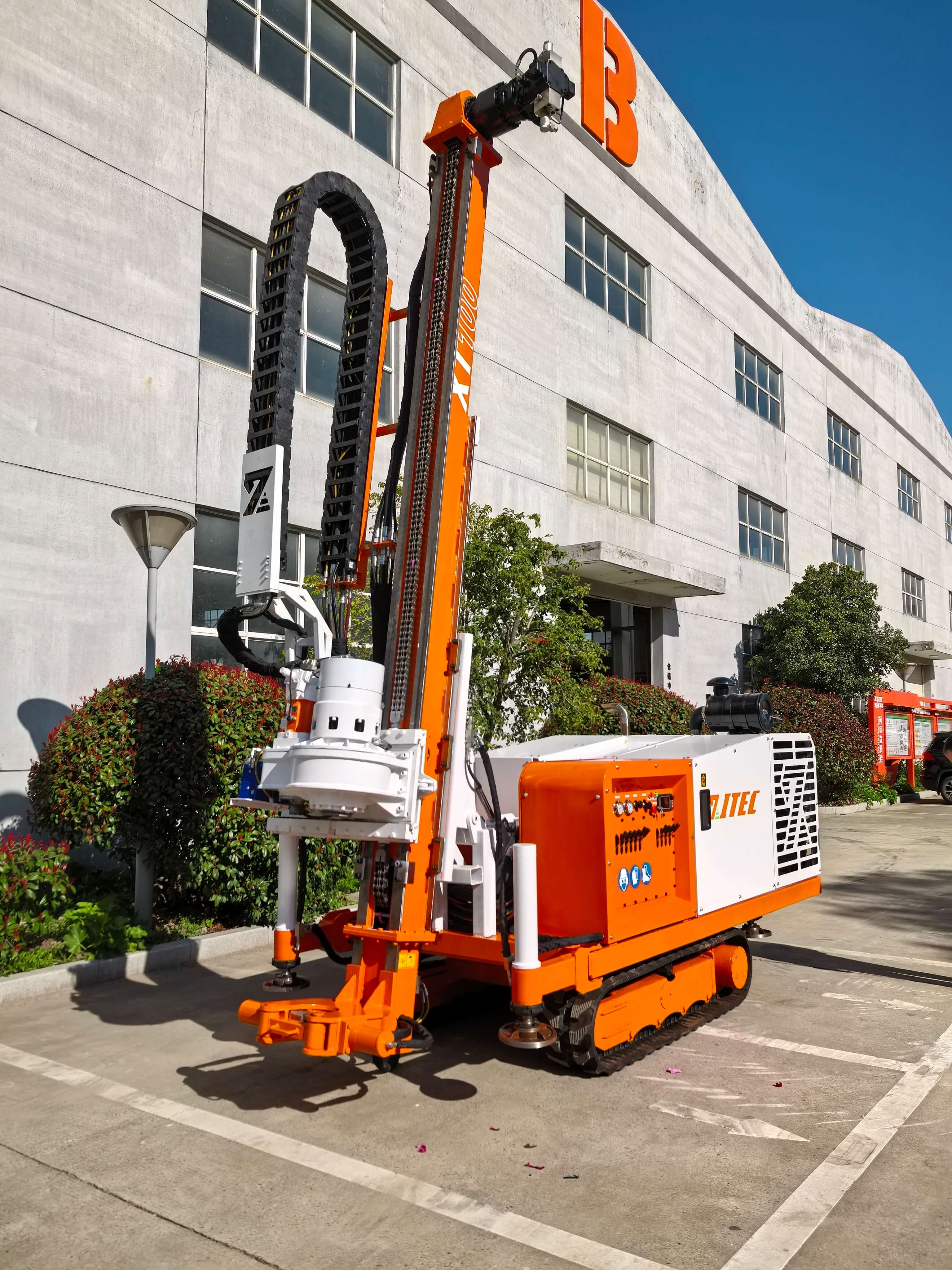

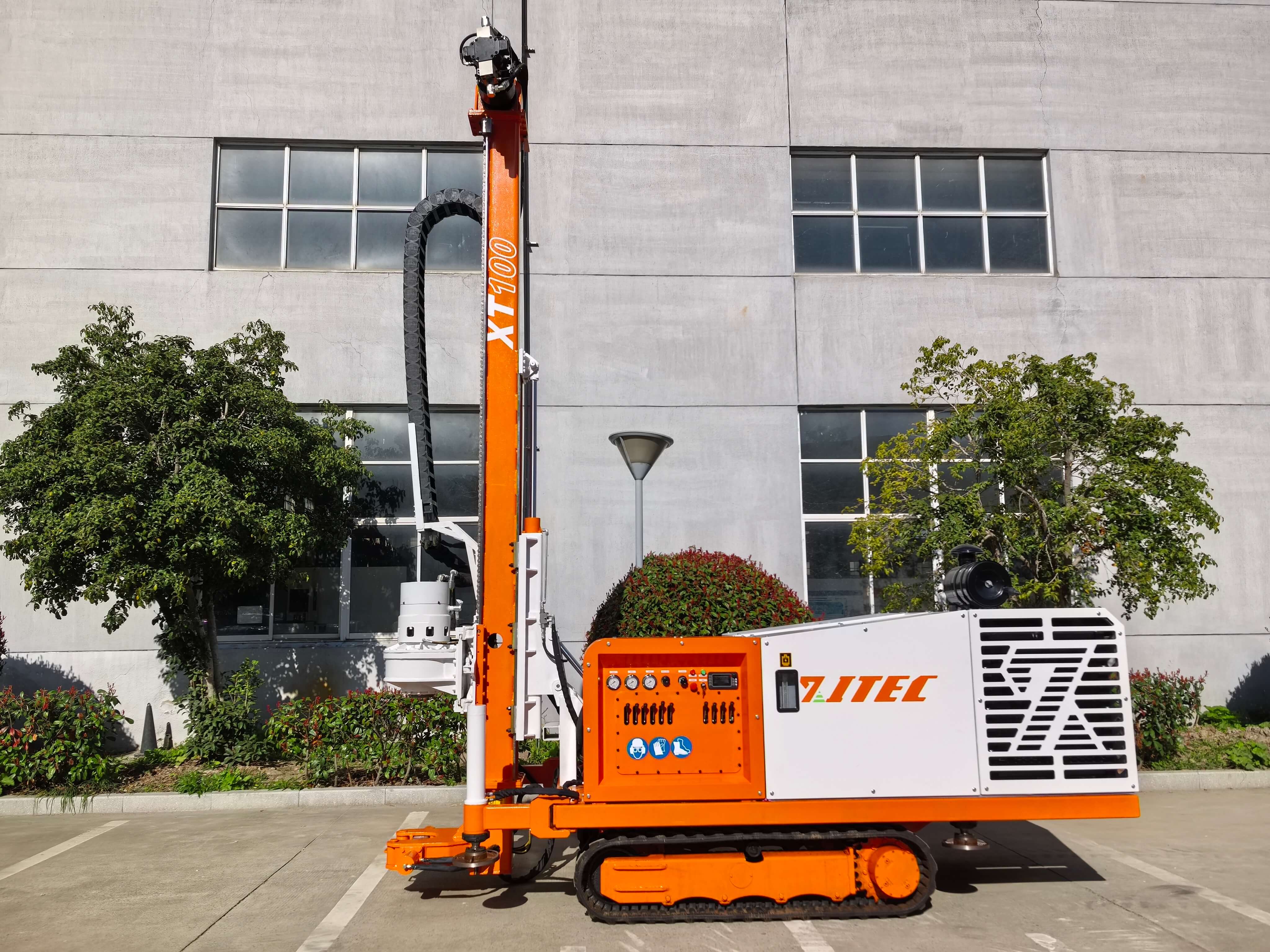

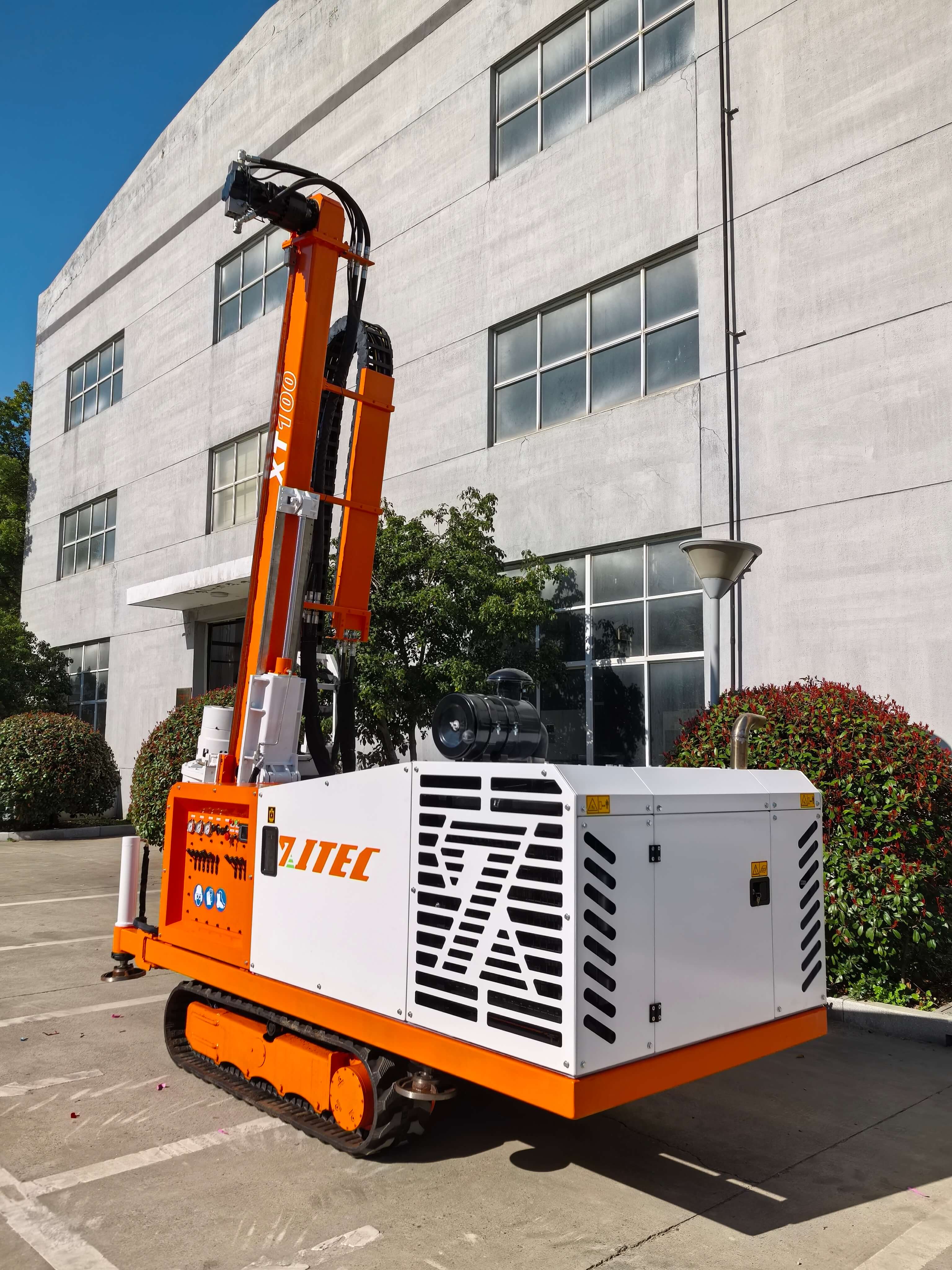

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NameXT-100
EngineCummins, National IV emission, 110kW
High-speed coring drilling speed and torqueHigh gear 950rpm/420Nm, Low gear 270rpm/1800Nm
Environmental sampling speed and torque110rpm/5150Nm
Impact frequency and energy2000min⁻¹/480J
Anchor grouting speed and torque130rpm/7200Nm
Feeding and lifting force7.7T
Feeding and lifting speed1.2m/s
Stroke3.3m
Transportation dimensions (L×W×H)5.2×1.65×2.6m
Working dimensions (L×W×H)4.3×2.6×5.2m
Chassis typeRubber crawler
Total weight6T


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
