MD-A/D/P
SPLIT DRILLING RIG (PIT/BASEMENT) AND OTHER SERIES

Designed to meet the needs of construction of anchoring holes, support holes, drainage holes, and reinforcement of dangerous rock bodies in the trench.

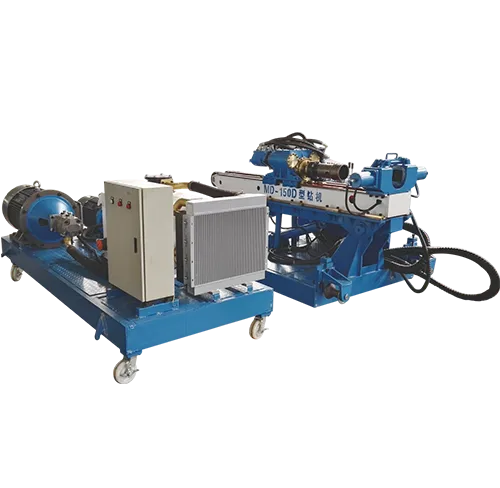

MD-A/D/PSPLIT DRILLING RIG (PIT/BASEMENT) AND OTHER SERIES

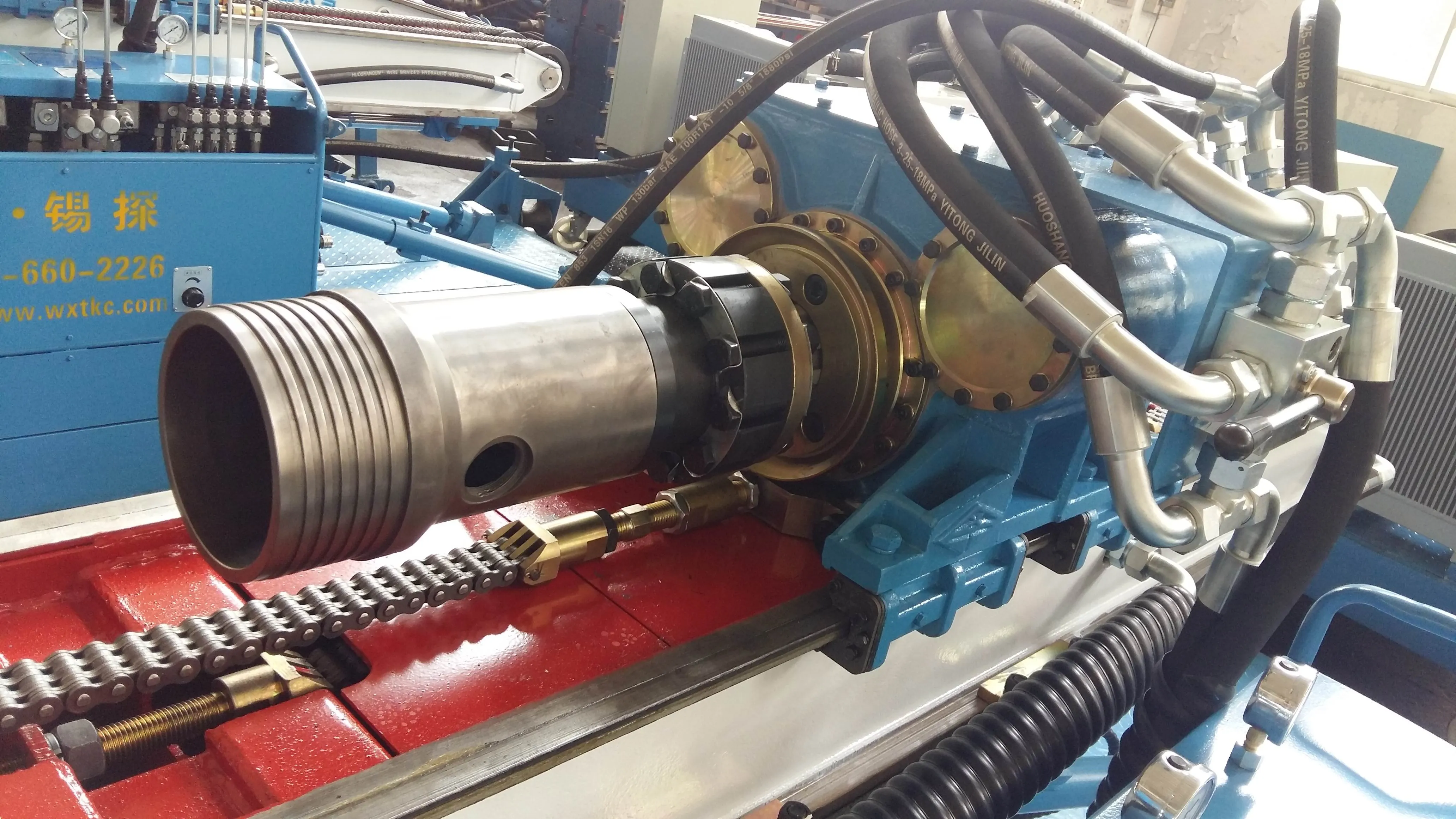

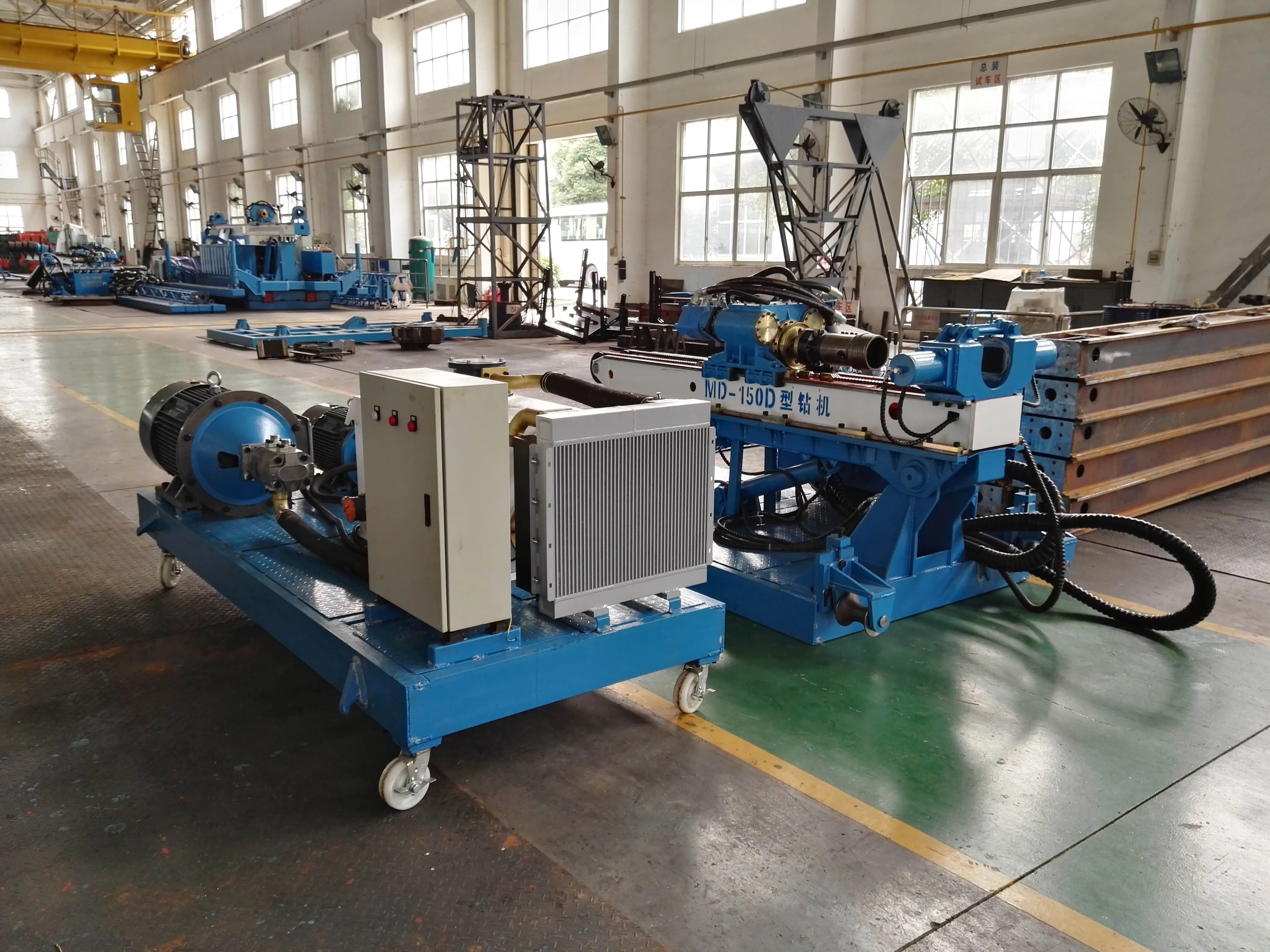

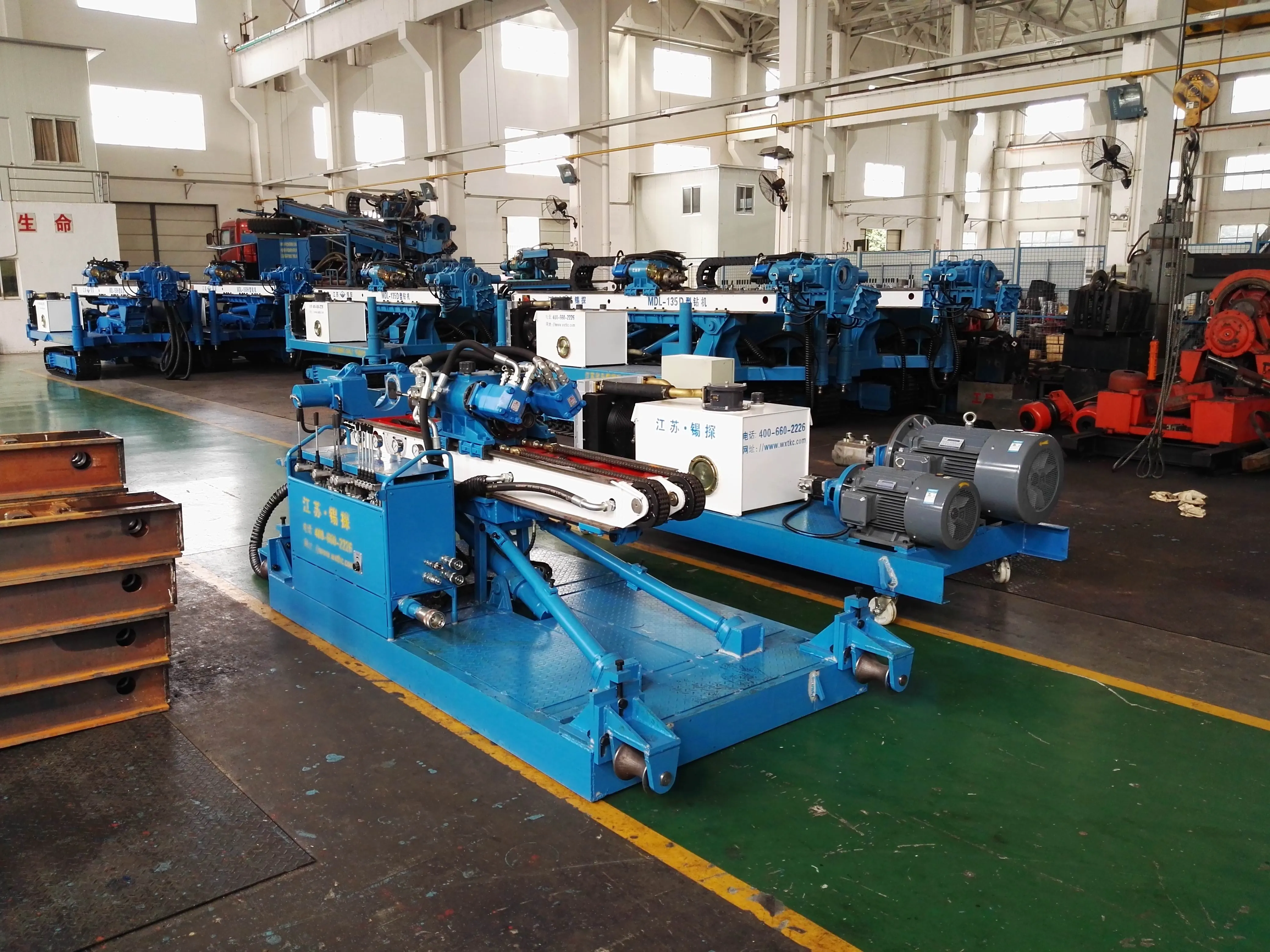

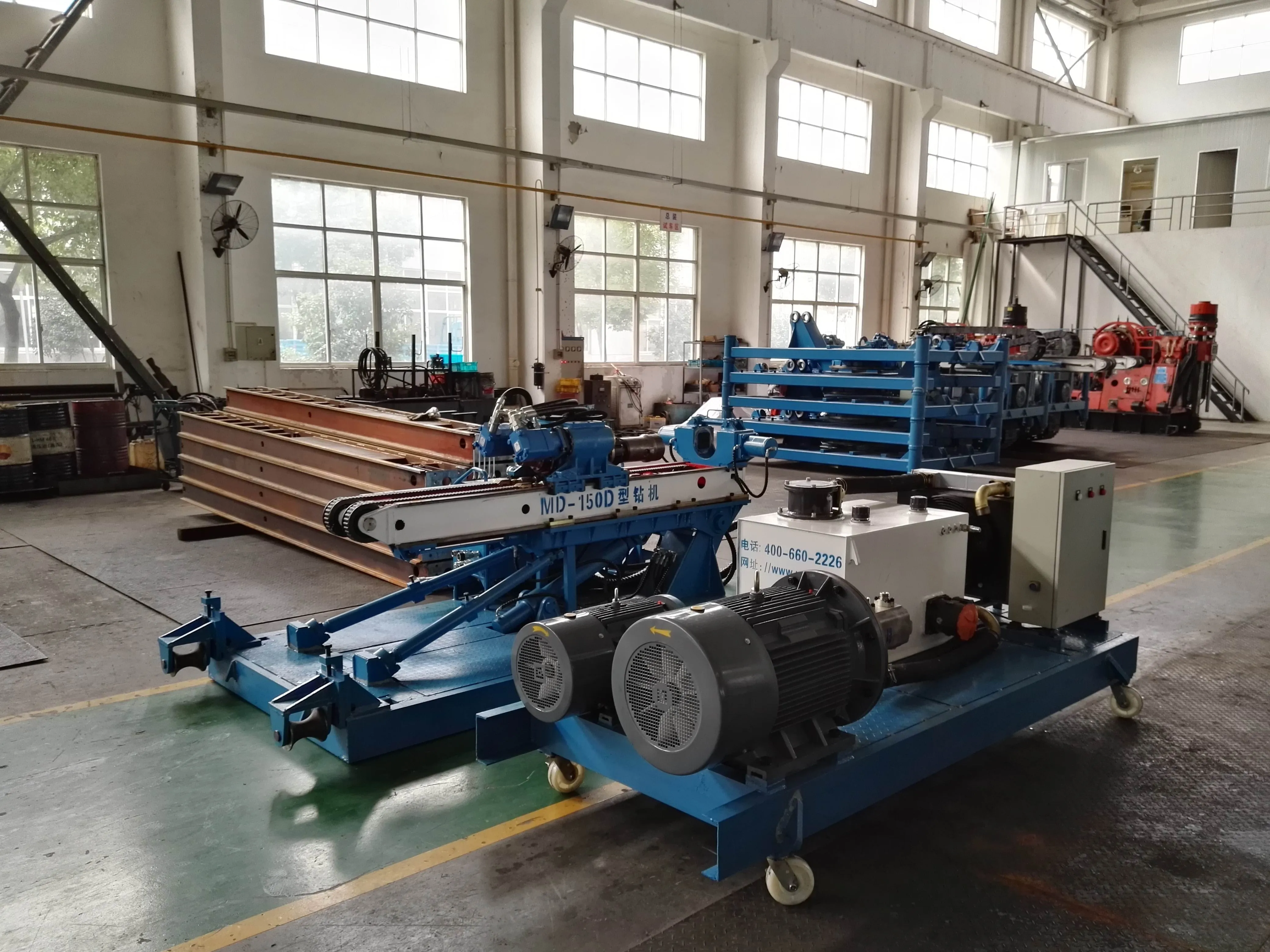

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEMD-100AMD-120AMD-150DMD-C150
Drilling diameter(mm)Φ120~Φ250Φ150~Φ250Φ150~Φ250Φ150~Φ250
Drilling depth(m)120~80140~100170~130170~130
Drill pipe diameter (mm)Φ73~Φ114Φ73~Φ114Φ73~Φ146Φ73~Φ146
Drill pipe angle(°)-10~90-10~900~900~90
Rotor output speed(r/min)12~10018~10810~17010~75
Rotor output torque(Nm)5500700075009500
Rotor lifting force(kN)62707070
Rotor feeding force(kN)32363636
Feeding process(mm)180018001200(customizable)1500(customizable)
Input power(motor) (Kw)37+2.245+2.255+2237+30+2.2
Total weight(kg)2800280032003800
External dimension in transportation condition(mm)3400x650x15003400x690x15003315x1500x13752800x600x700


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
