MDL-D
DEEP FOUNDATION ANCHOR DRILLING RIG SERIES

It is a high-efficiency driling rig developed for anchoring,jet grouting, and waterfalling in subways,high-rise buildings, airports, ground source heat pumps, and other deep foundation pits in China.

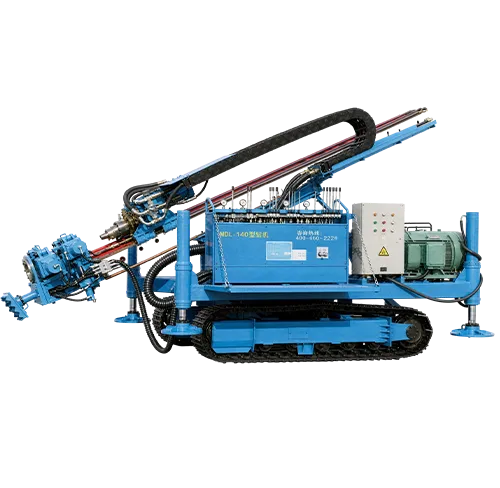

MDL-DDEEP FOUNDATION ANCHOR DRILLING RIG SERIES

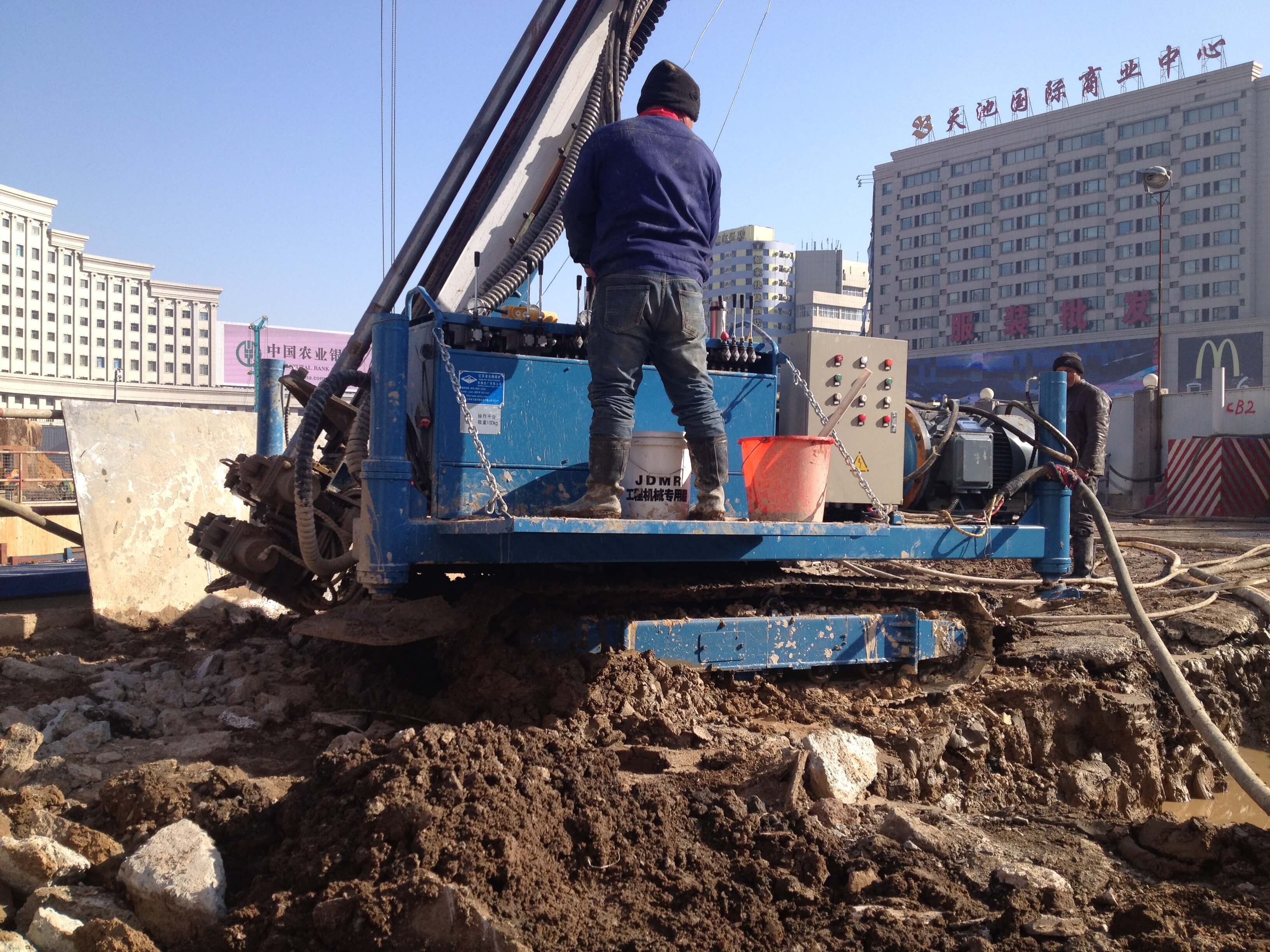

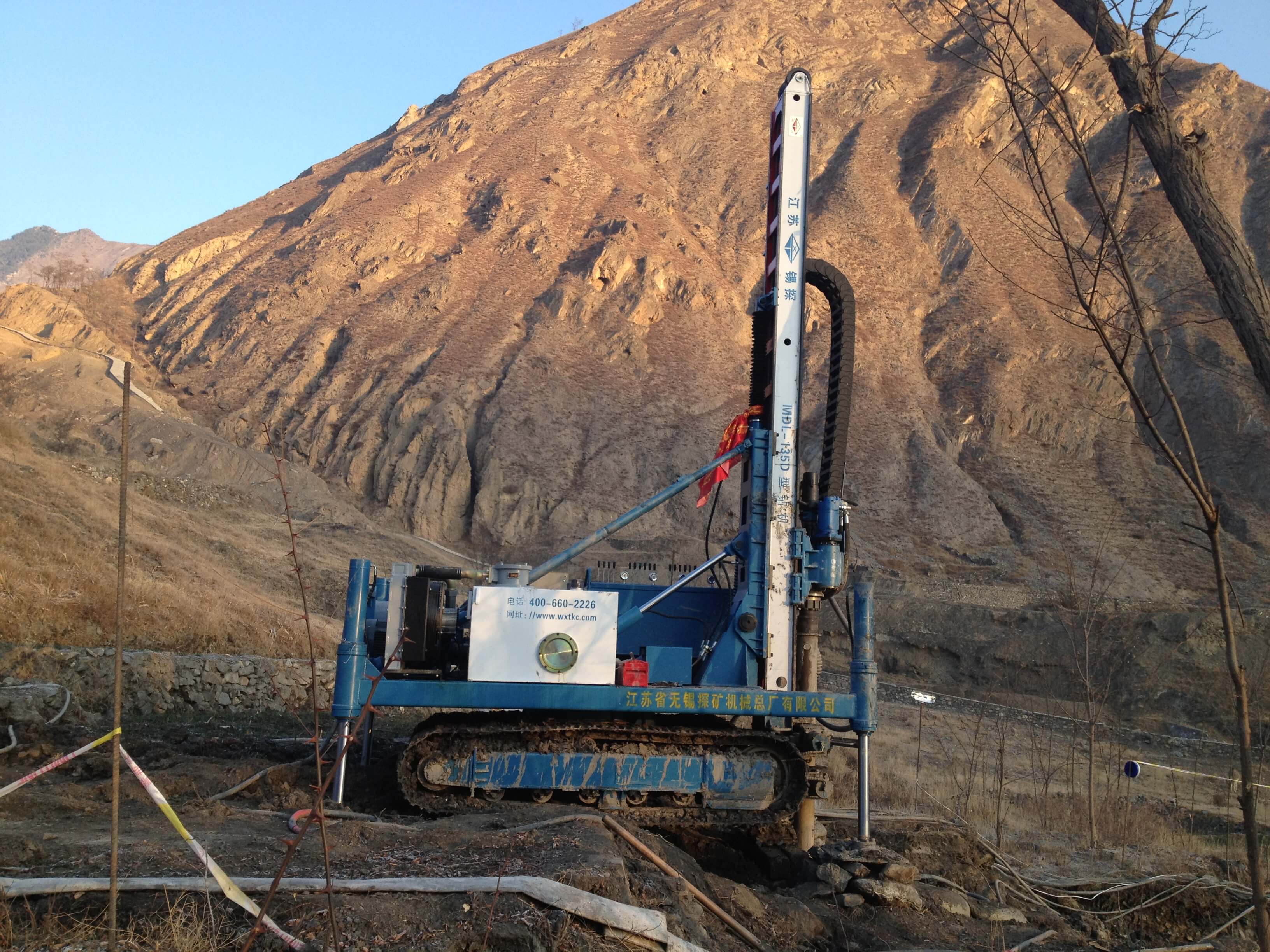

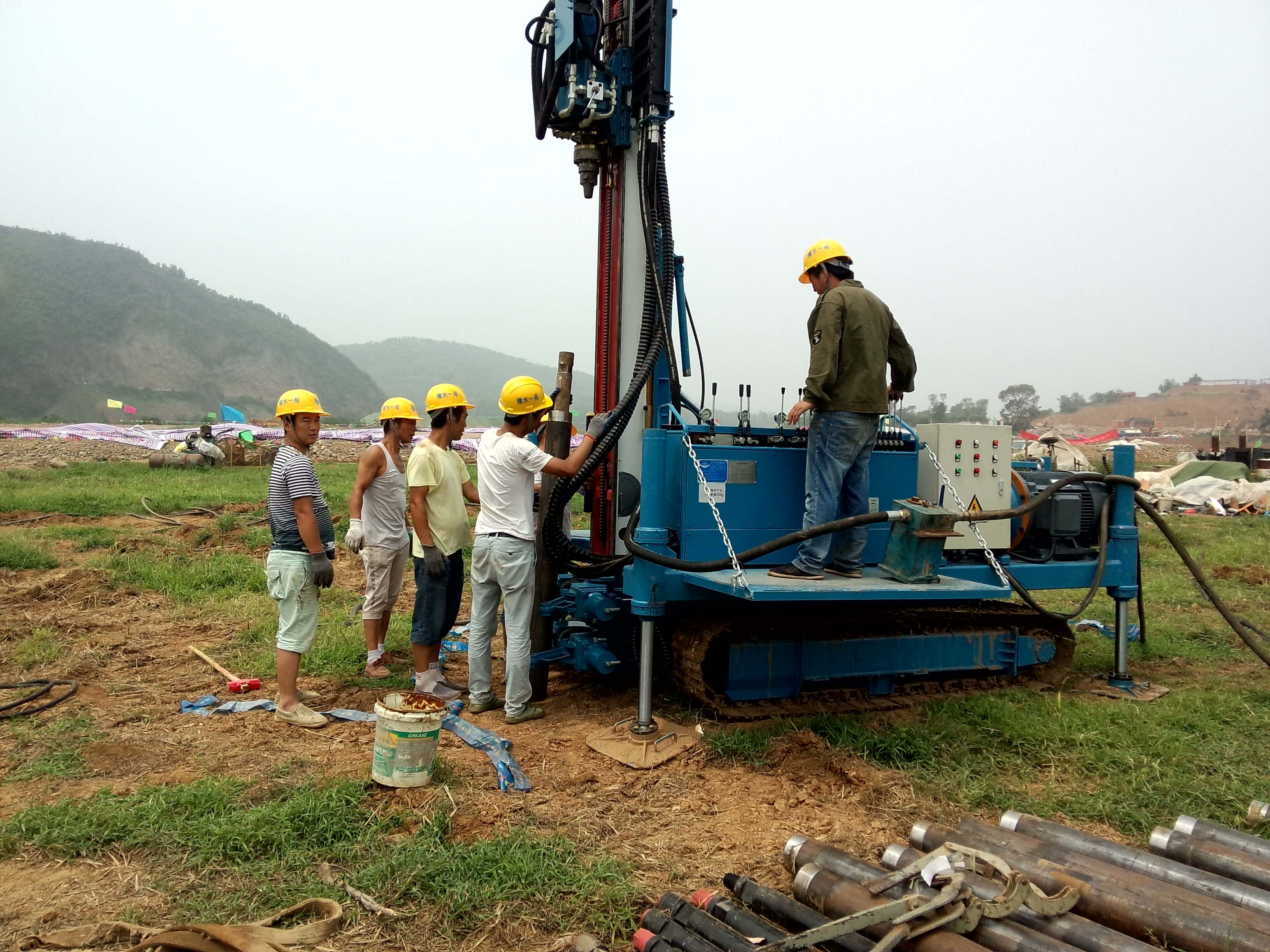

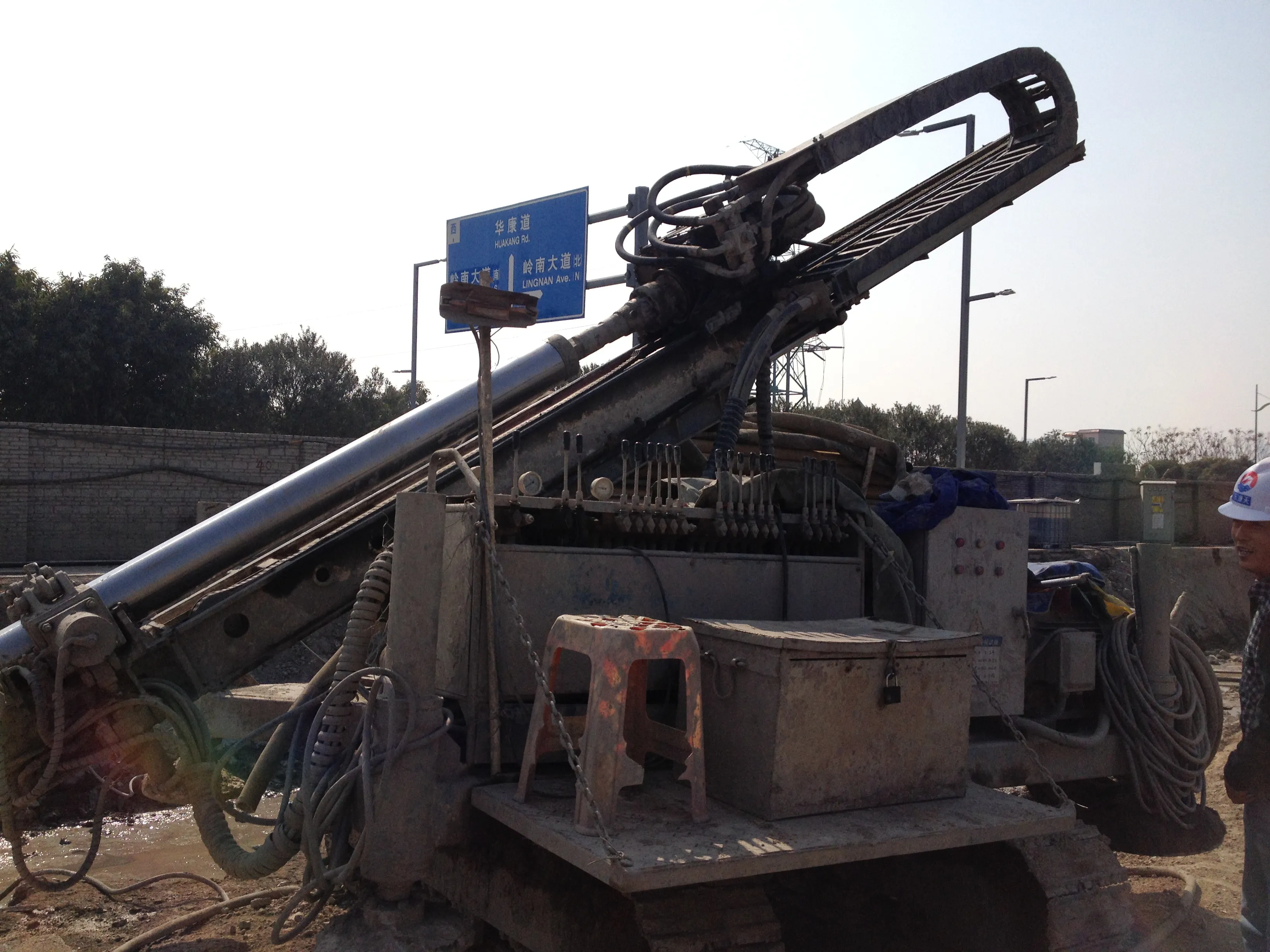

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEMDL-150DMDL-180D
Drilling diameter(mm)Φ150~Φ250Φ150~Φ250
Drilling depth(m)170~130200~150
Drill pipe diameter(mm)Φ73/Φ89/Φ102/Φ114Φ73/Φ89/Φ102/Φ114
Rotor output torque(Nm)750011000
Stroke of rotor(mm)34003400
Pusher feed stroke(mm)900900
Lifting force of rotor(kN)7070
Lifting speed of rotator(m/min)0~5 adjustable/7/23/300~5 adjustable/7/23/30
Rotor pressurizing force(kN)3636
Rotor pressurizing speed(m/min)0~10 adjustable/14/46/590~10 adjustable/14/46/59
Input power (motor) (kw)55+18.555+22+4
Input power (diesel engine)(kW)92(Cummins)132 (Cummins)
Weight(kg)60006350
Transportation dimension(mm)LxWxH5400x2100x20005400x2100x2100


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
