MDL-C
TOP DRIVE MULTIFUNCTIONAL DRILLING RIG SERIES

The top-driven percussion multifunctional drilling rigs developed for complex formations are mainly used in various projects such as foundation pit support,slope support,various kinds of complex fommation pilot holes,tunnel pipe sheds and so on.

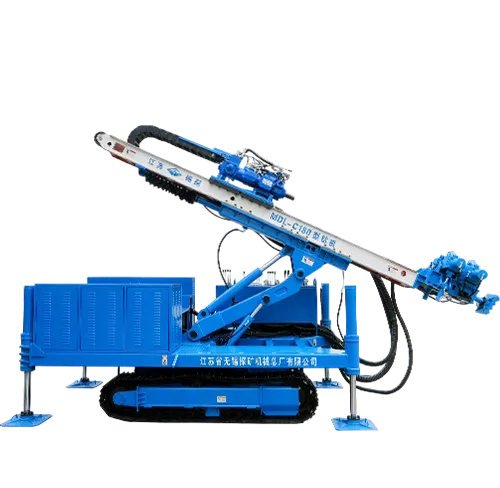

MDL-CTOP DRIVE MULTIFUNCTIONAL DRILLING RIG SERIES

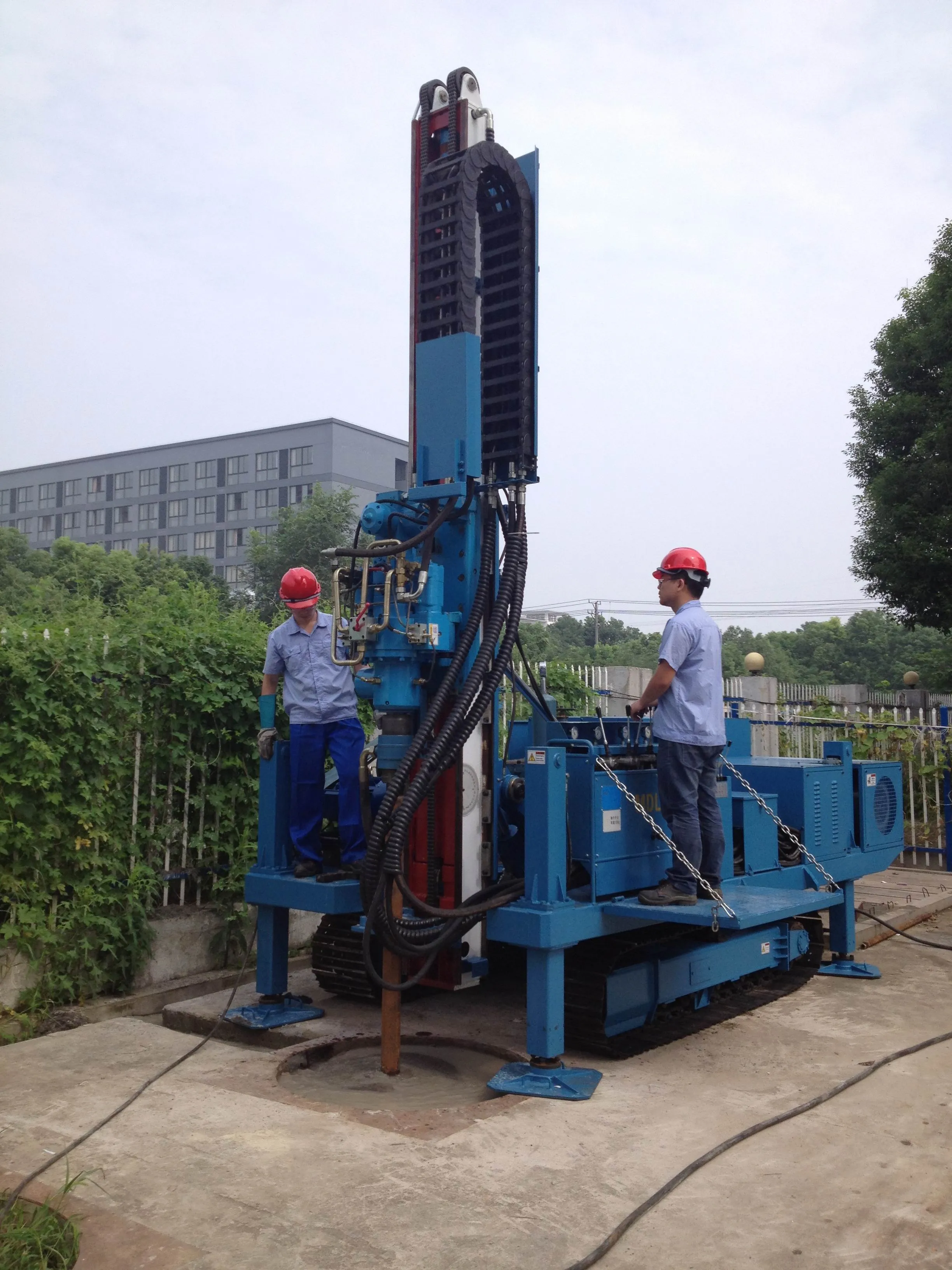

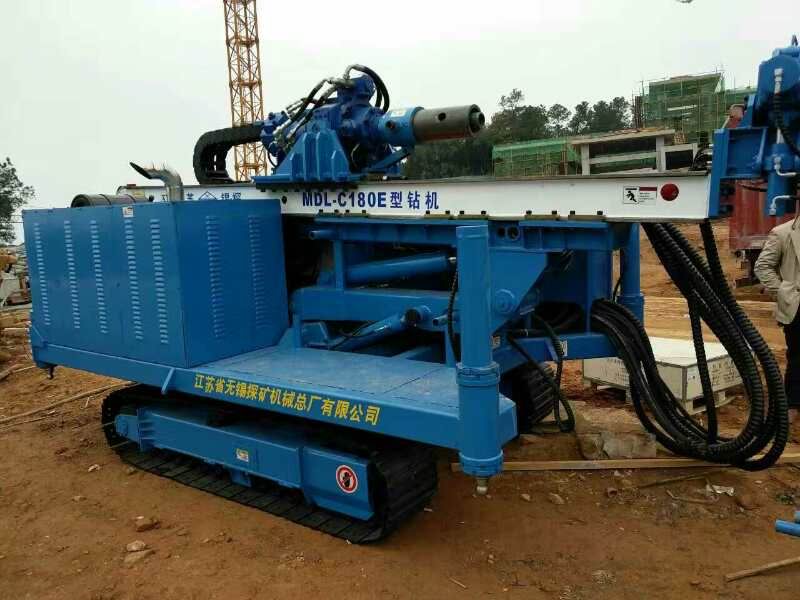

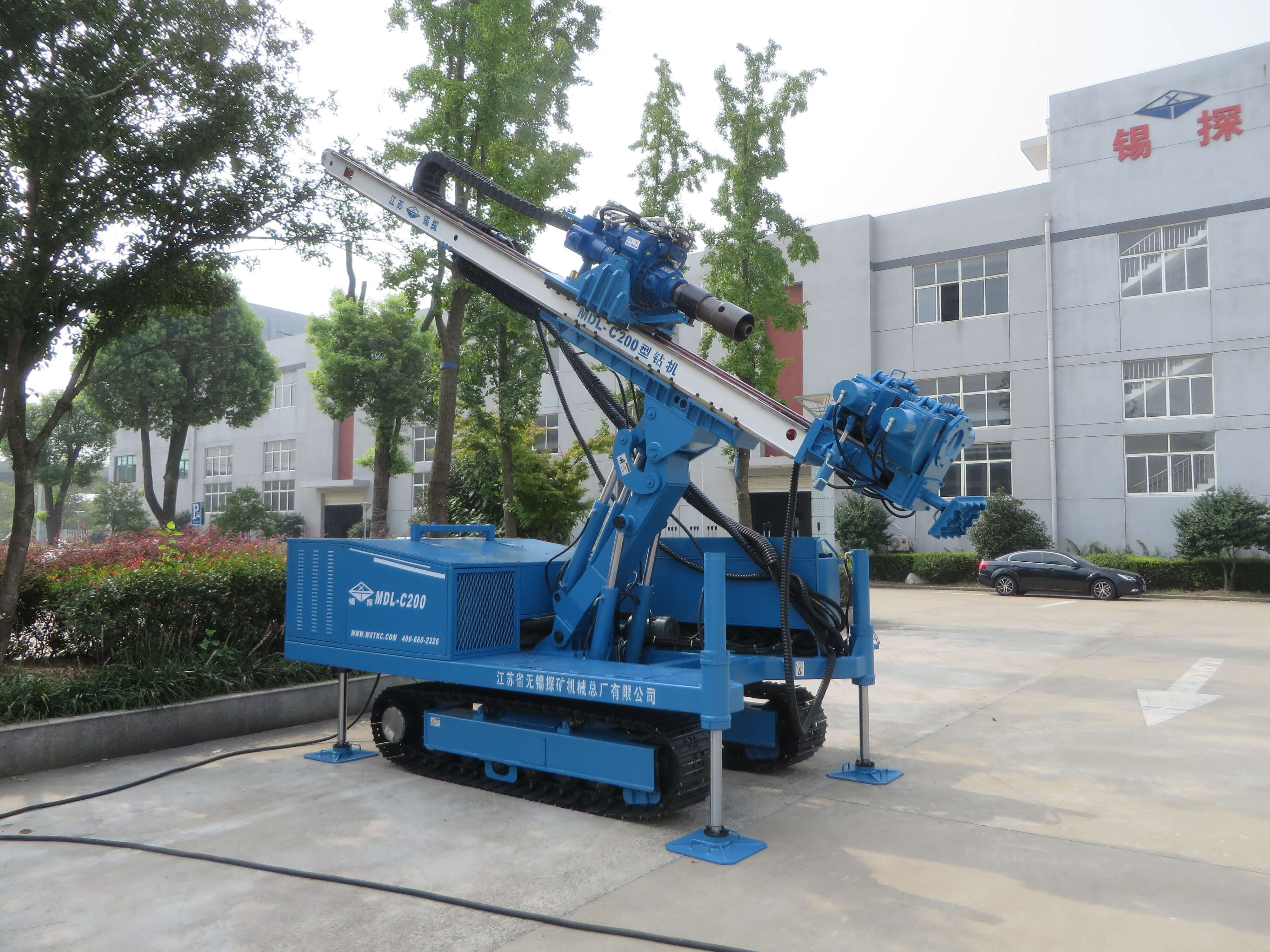

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEMDL-C150MDL-C180MDL-C200
Drilling diameter(mm)Φ150~Φ250Φ150~Φ250Φ150~Φ250
Drilling depth(m)100~80180~150200~150
Drill pipe inclination angle(°)0~900~1100~100
Diameter of drill pipe(mm)Inner dia. Φ76~Φ89, outer dia. Φ127~Φ146Inner dia. Φ76~Φ114, outer dia. Φ133~Φ168Inner dia. Φ89~Φ114, outer dia. Φ133~Φ219
Rotary output torque(Nm)95001050014000
Impact work(N.M)450800900
Impact frequency(min-1)130025001200~2100
Rated lifting force(kN)627878
Rated feeding force(kN)324040
Feed stroke(mm)260032003800
Weight(Kg)680078008800
Overall dimension(mm)LxWxH5400x2100x20005400x2200x22506900x2180x2600
Input power (diesel engine) (Kw)92(Cummins)103(Cummins)125(Cummins)
Input power (motor) (Kw)55+18.5+355+22+375+37+4


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
