MDL-H
LIFTING MULTI-PURPOSE DRILLING RIG

High-lift multifunctional driling rig developed according to the domestic subway, tunnel, highslope, high-rise buildings, airports, ground-source heat pumps and other deep foundation pitsfor pipe scaffolding, anchoring, jet grouting and waterfalling.

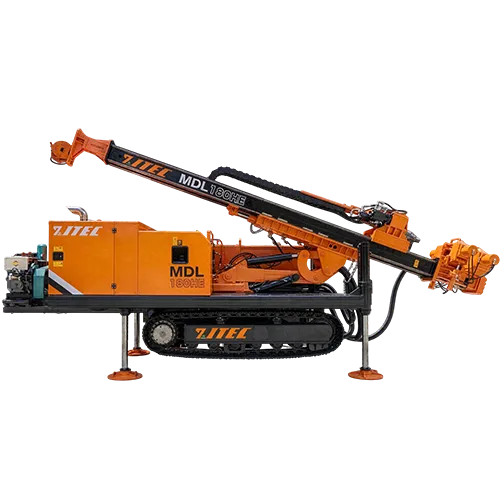

MDL-HLIFTING MULTI-PURPOSE DRILLING RIG

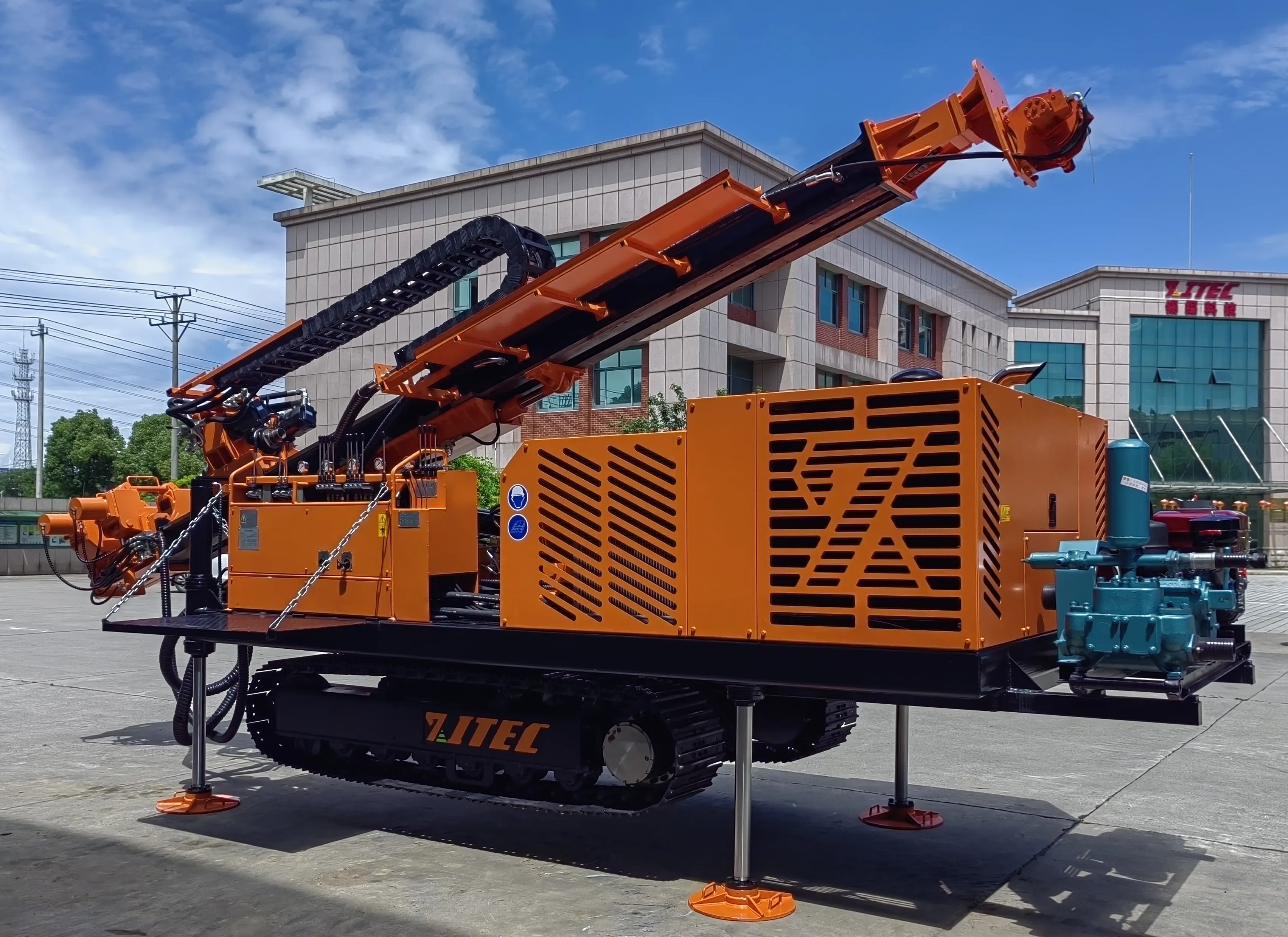

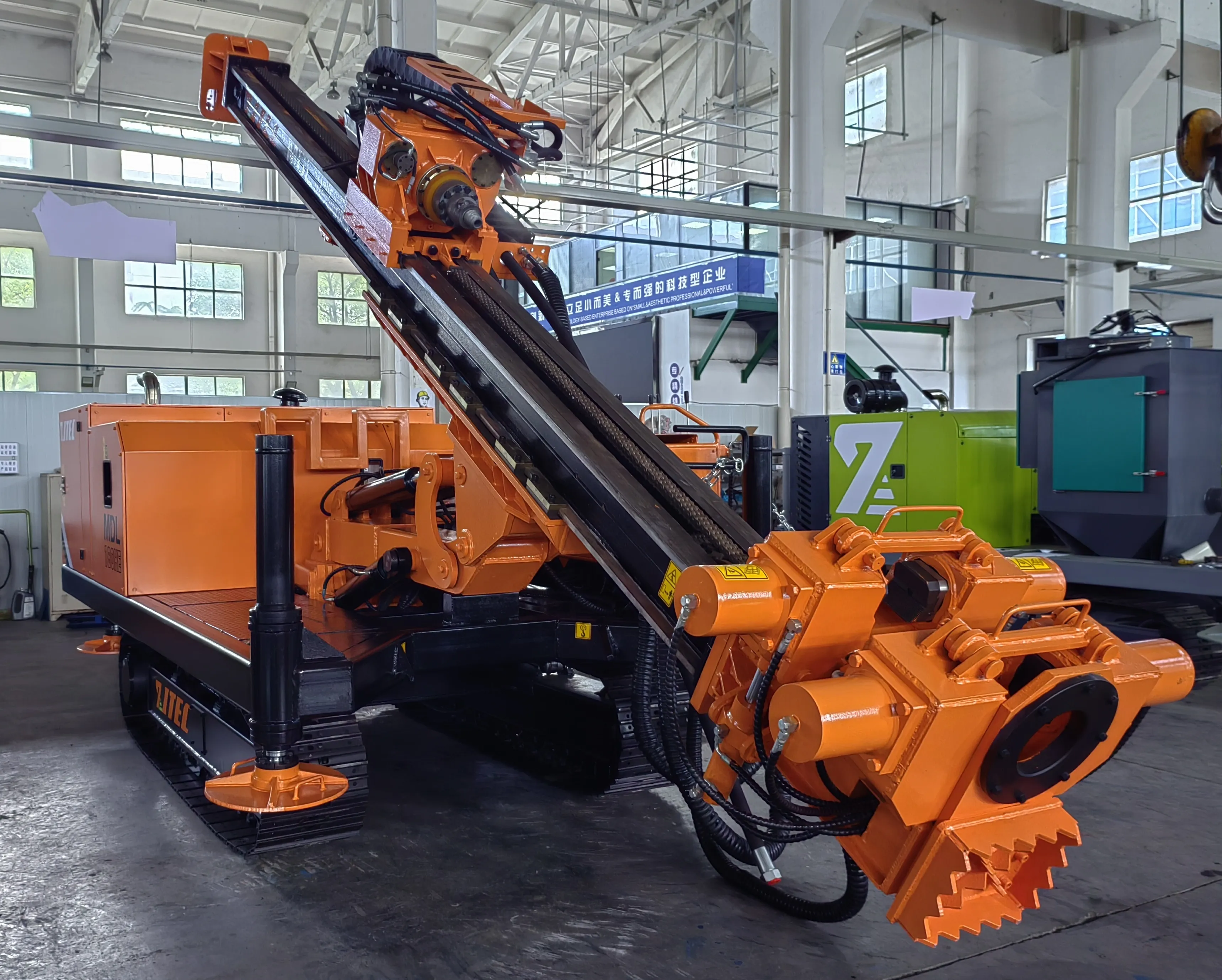

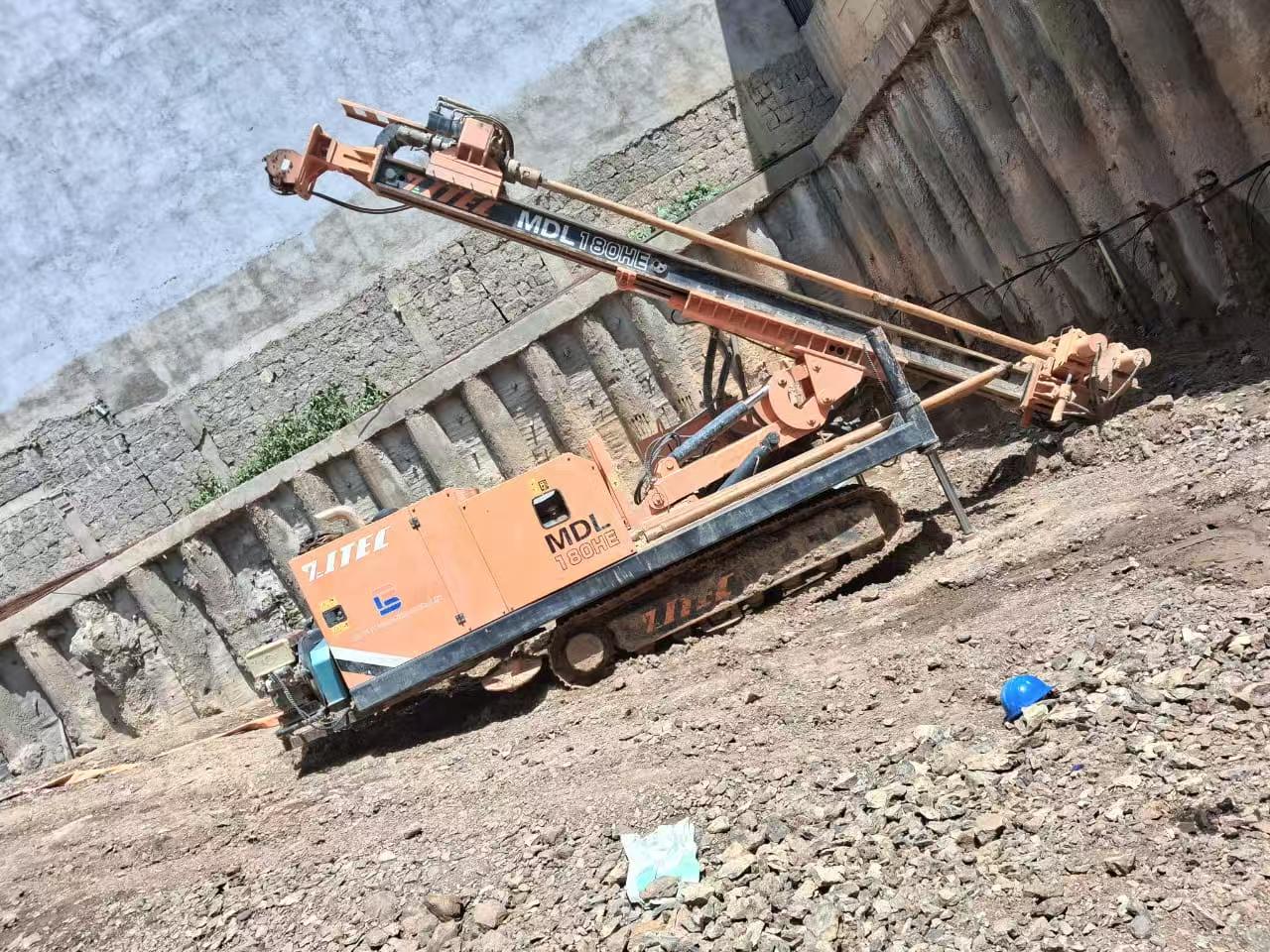

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEMDL-150HMDL-180H
Drilling diameter(mm)Ø150~Ø250Ø150~Ø250
Drilling depth(m)170~130180~80
Drill pipe diameter(mm)Ø73/Ø89/Ø102/Ø114Ø73/Ø89/Ø102/Ø114
Drill pipe inclination angle (°)0~900~90
Maximum horizontal lifting height(m)3.43.4
Rotary output torque(Nm)750010000
Stroke of rotary(mm)34003400
Lifting force of rotor(kN)7070
Lifting speed of rotor(m/min)0~5 adjustable/7/23/300~1.4 adjustable/9/33
Slewing force(kN)3636
Weight(Kg)70007200
Transportation size(mm)L×W×H5600×2200×21005590×2250×2300
Input power (diesel engine) (Kw)92(Cummins)132(Cummins)
Input power (electric motor) (Kw)55+18.5+355+22+3


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
