MD-A
SPLIT ANCHOR DRILLING RIG (SLOPE) SERIES

Suitable for hydropower station project, railroad, highway slope large tonnage prestressing anchor support hole, Drainagehole construction, as well as dangerous rock body anchoring and other geological disaster management projects.

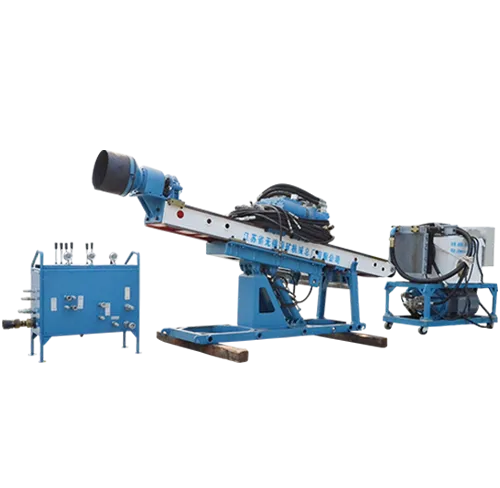

MD-ASPLIT ANCHOR DRILLING RIG (SLOPE) SERIES

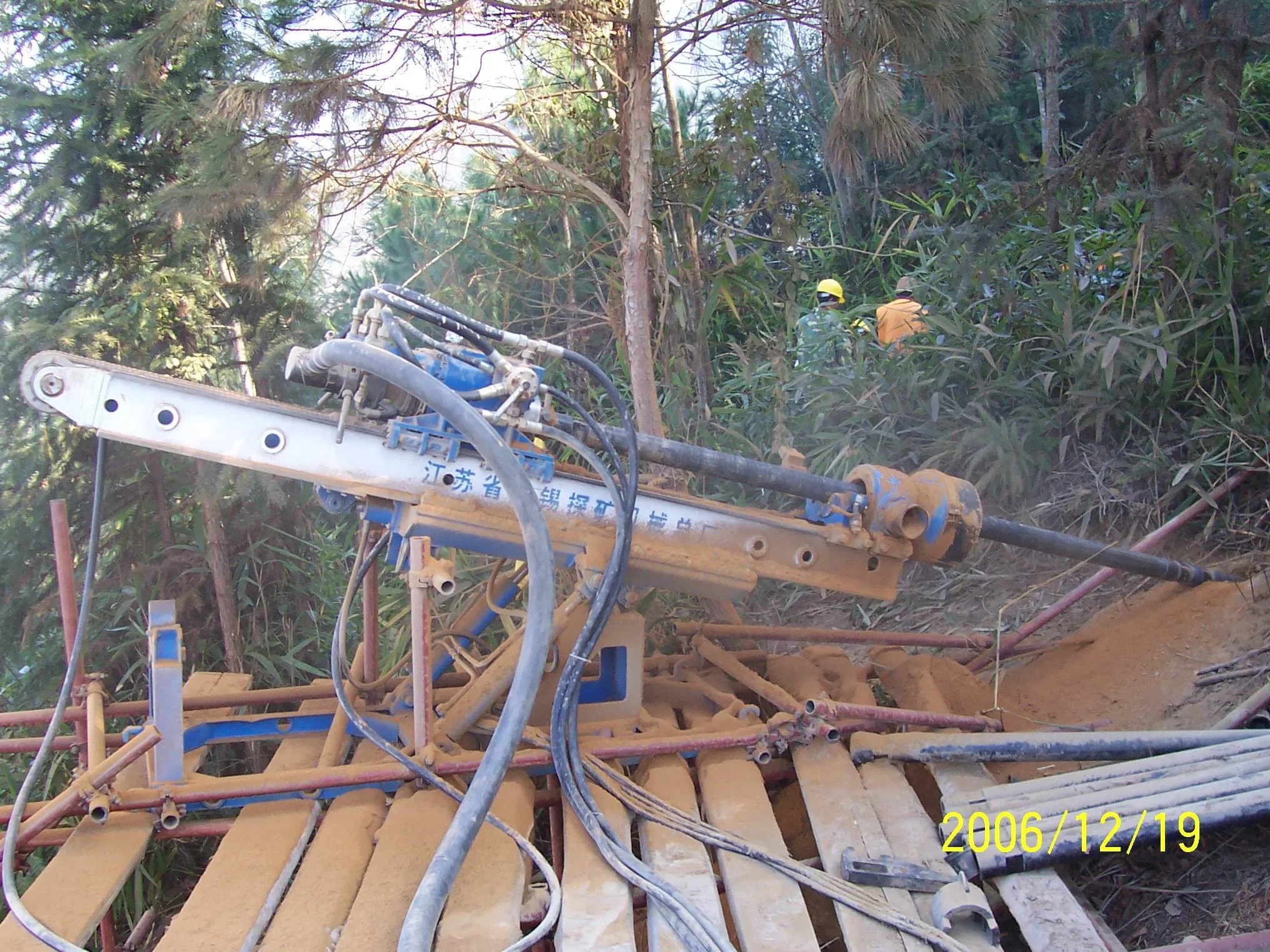

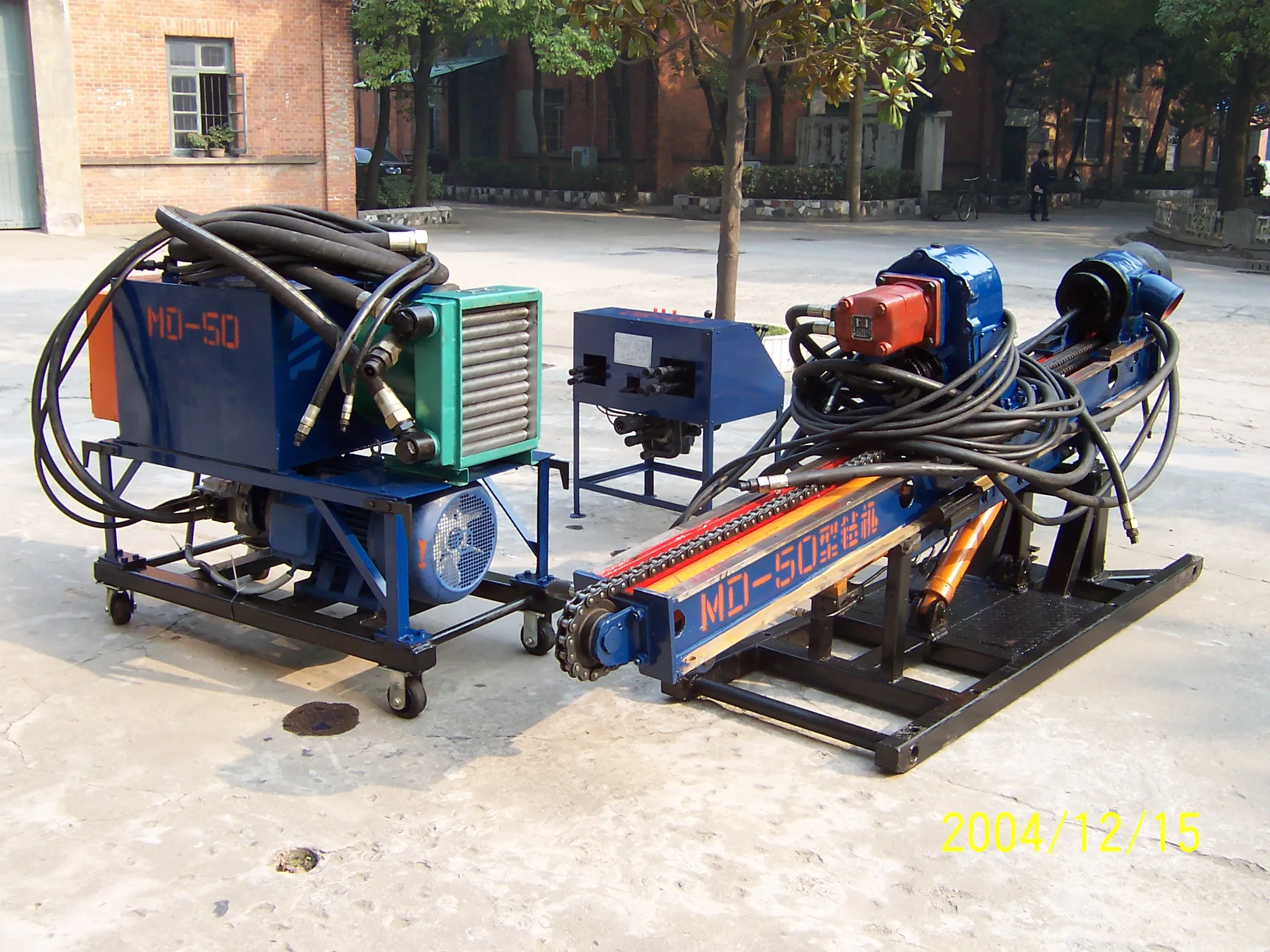

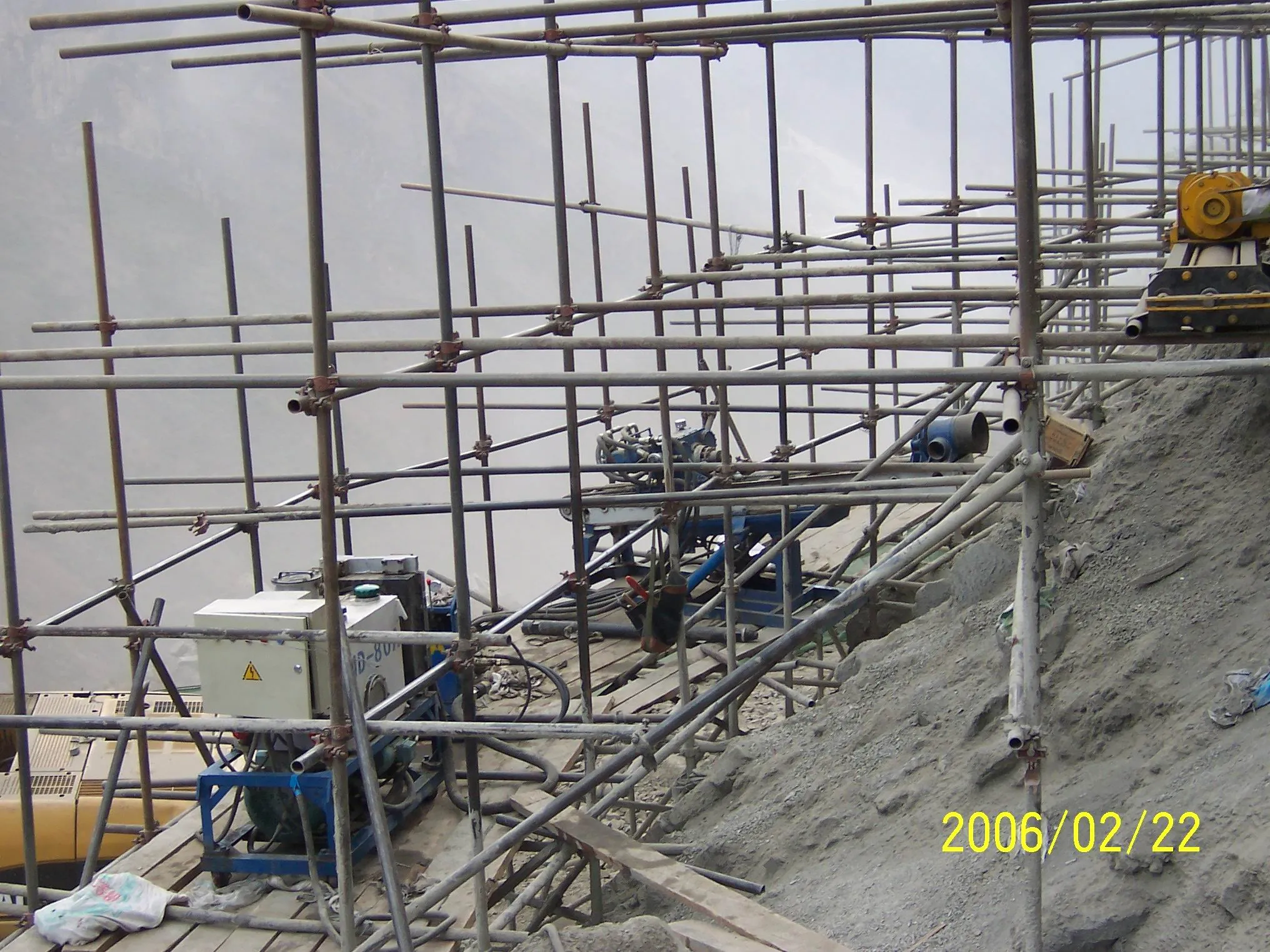

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEMD-50MD-60AMD-80A
Drilling diameter(mm)Φ110~Φ180Φ90~Φ185Φ100~Φ210
Drilling depth(m)60~5080~50100~60
Drill pipe diameter (mm)Φ73~Φ89Φ73~Φ89Φ89, Φ102, Φ114
Drill pipe angle(°)-10~90-10~9010~90
Rotor output speed(r/min)20/40/56/111/16712/25/50/60/100/13015/30/40/55/75/110
Rotor output torque(Nm)200025004200
Rotor lifting force(kN)254070
Rotor feeding force(kN)172536
Feeding process(mm)170018001800
Input power(motor) (Kw)18.522+1.530+2.2
Total weight(kg)120023002600
External dimension in transportation condition(mm)2978x700x12053400x650x15003400x650x1500


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
