MDL-150X2
ANCHOR JET GROUTING DRILLING RIG

Anchoringjet grouting construction dual-use model,in some soft soil layer construction, drilling androtary spraying can be completed at once. Equipped with a heightening sub-tower, it is convenient to add and connect multiple driling rods atone time, and it can be used for rotary spraying piles at one time, with high working efficiency.

MDL-150X2ANCHOR JET GROUTING DRILLING RIG

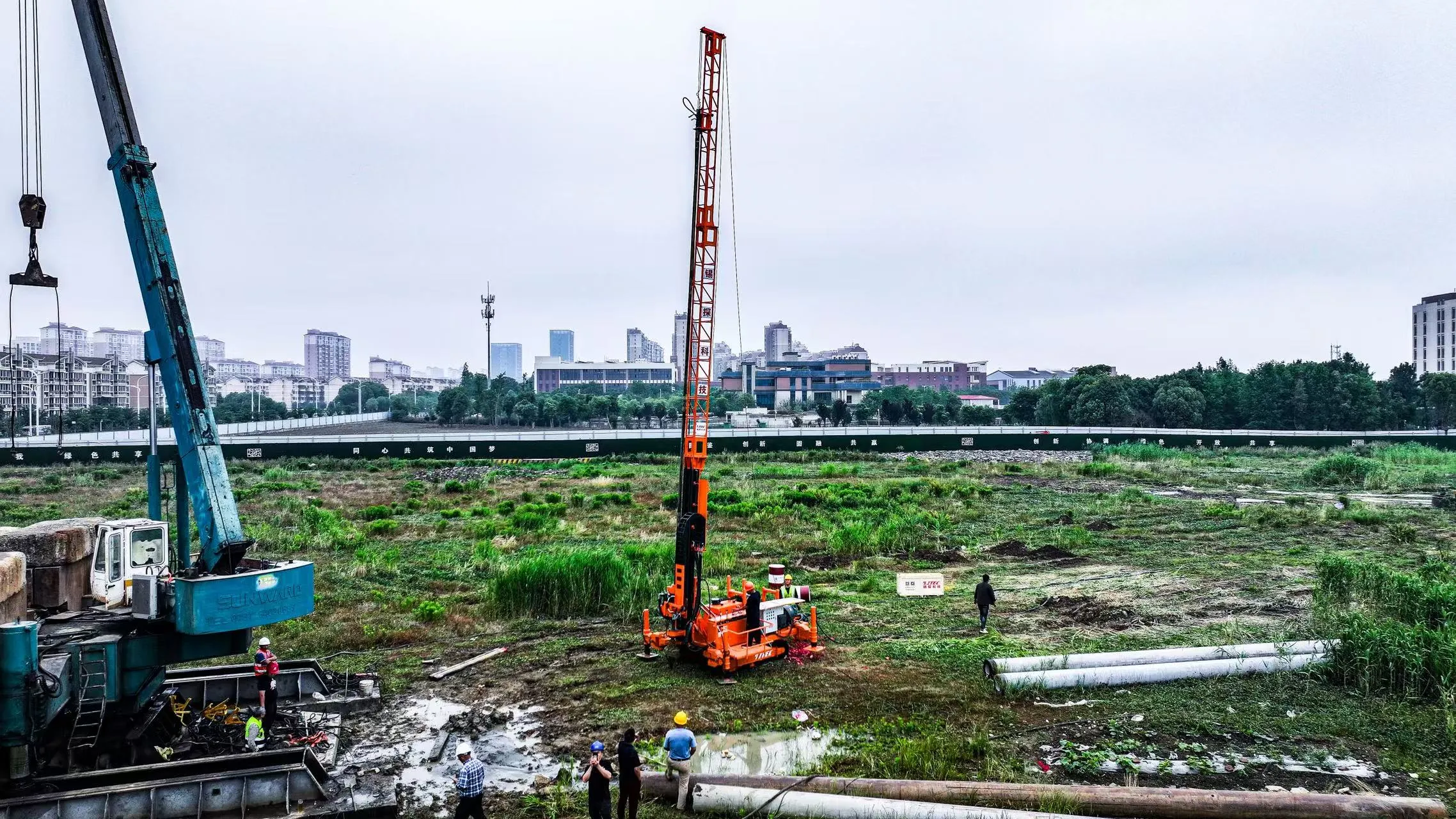

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEMDL-150X2
Drill pipe diameter(mm)Φ60/Φ73/Φ76/Φ89
Output torque(Nm)7000
Output speed(r/min)0~138
Power head stroke(mm)3400
Rated lifting force of power head(KN)70
Power head rated pressure(KN)36
Lifting speed of power head(m/min)0~5 adjustable, 7, 23, 30
Power head pressurizing speed(m/min)10, 14, 46, 59
Sliding stroke of propulsion frame(mm)1200
Maximum depth of pile formation without rod connection(m)14.5+3 options
Crawler walking speed(km/h)0.58
Working state size LxWxH4270x3656x16935
Transportation size LxWxH5420x2180x2400
Weight(kg)7100
Input power (motor)(kw)55+18.5+3


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
