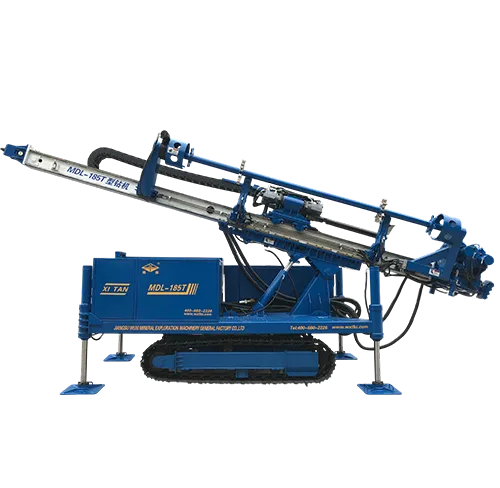

MDL-185T
MULTI-PURPOSE DRILLING RIG WITH AUTOMATIC LOADING

It is suitable for urban pit support and anchoring works to control the displacement of buildings, all kinds of foundation treatment works, as well as large-diameter engineering drilling rigs.

MDL-185TMULTI-PURPOSE DRILLING RIG WITH AUTOMATIC LOADING

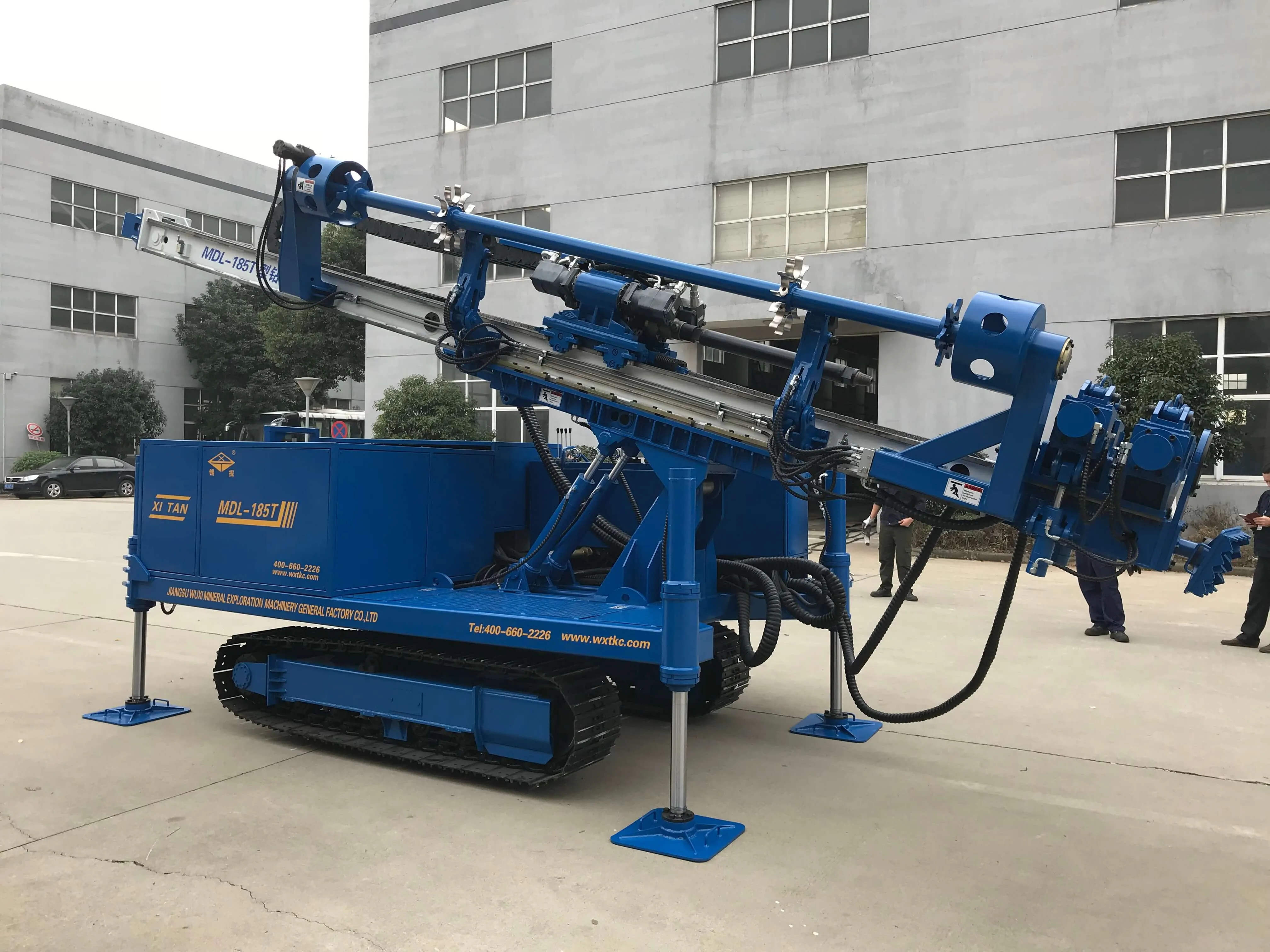

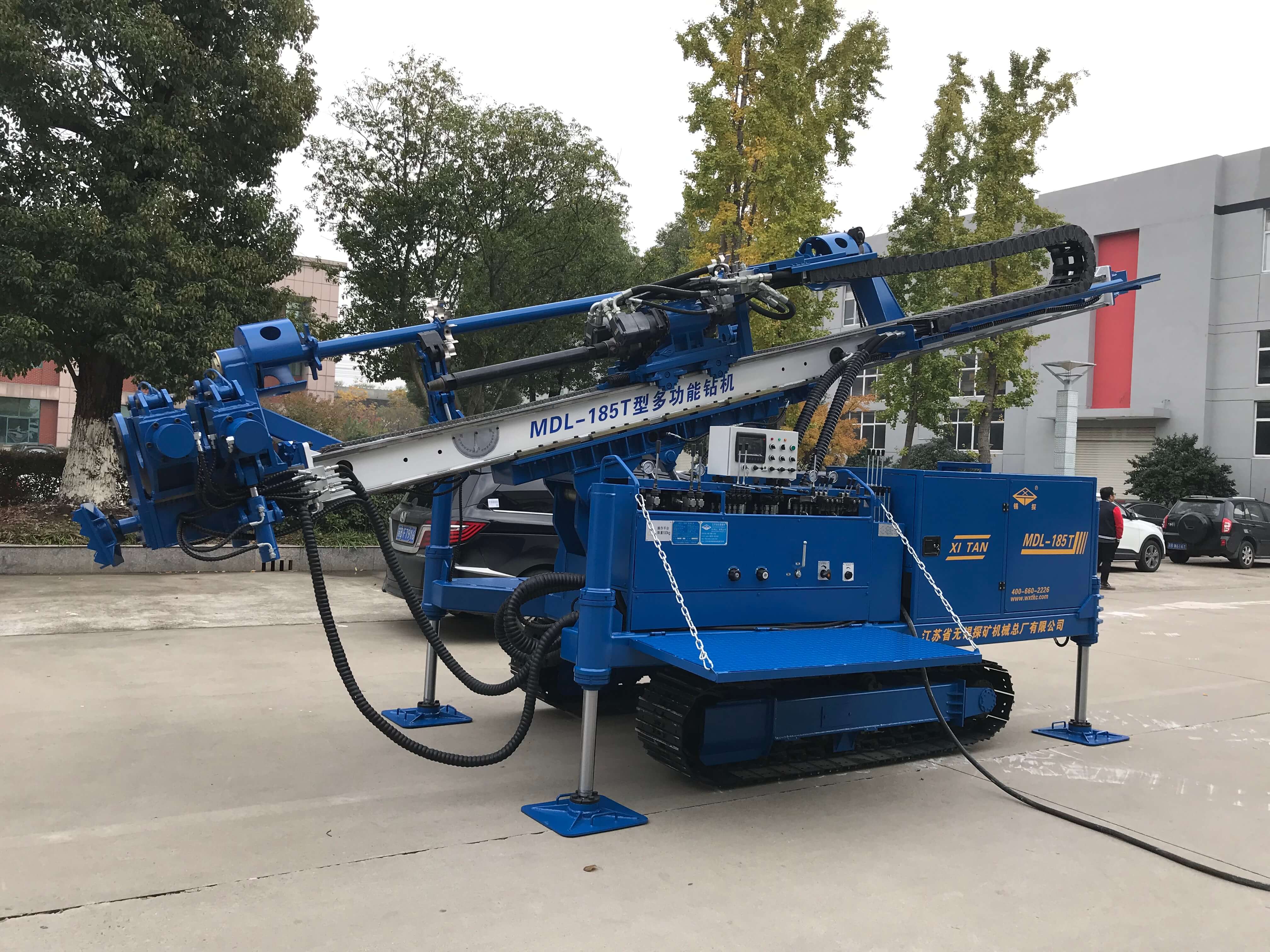

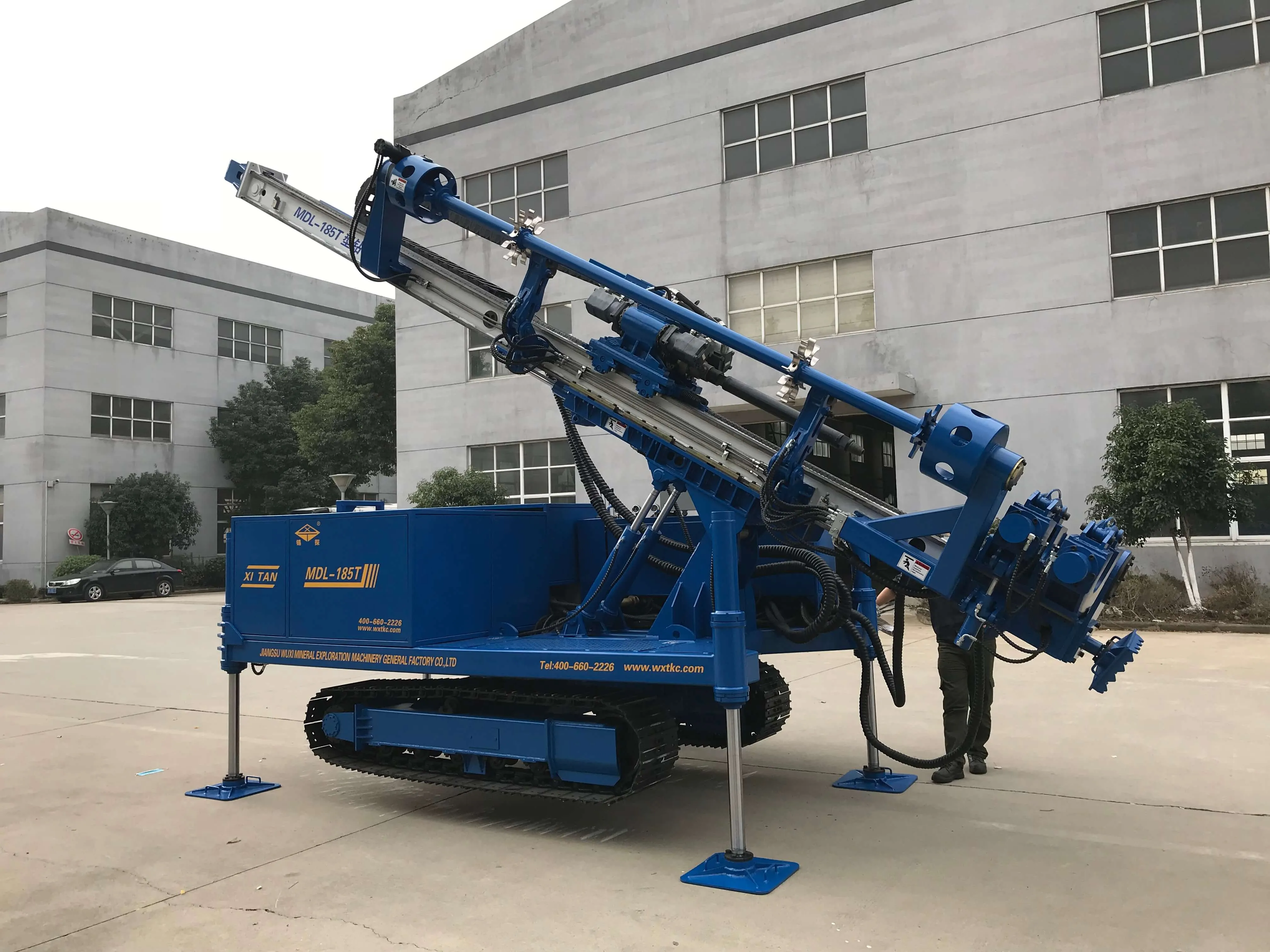

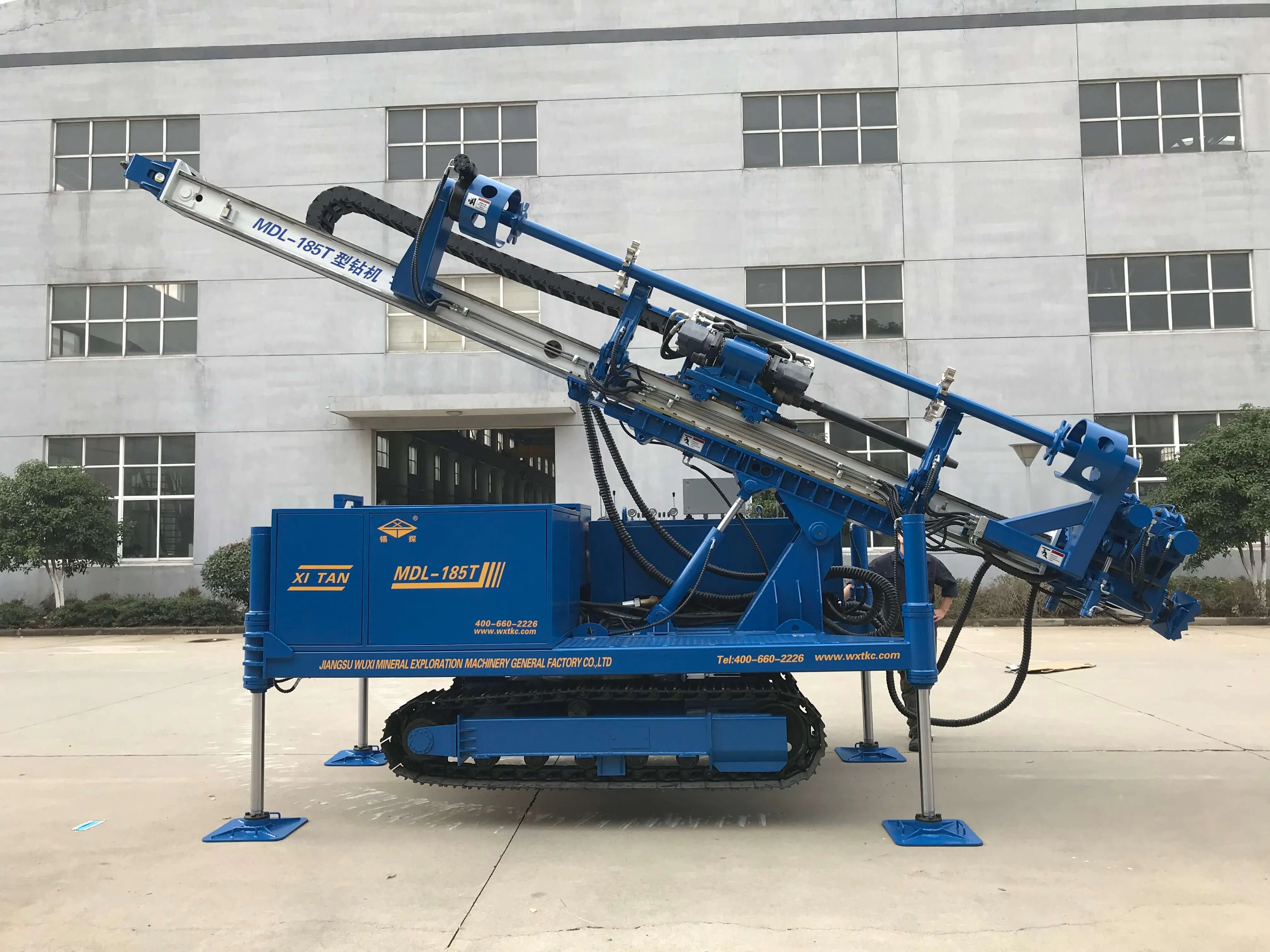

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

PARAMETERS

NAMEMDL-185T
Drilling diameter(mm)Φ150~Φ250
Drilling depth(m)200~150
Drill pipe diameter(mm)60, 73, 89
Drill pipe inclination angle(°)0~90
Power head torque(Nm)13000
Power head stroke(mm)5000
Rated lifting force of power head(kN)70
Rated pressure of power head(kN)36
Lifting speed of power head(m/min)1.45~29.6
Power head pressurizing speed(m/min)2.85~58.1
Clamping range(mm)60~220
External dimension in working condition(mm)4690x2200x7730
External dimension in transportation condition(mm)7730x2200x2670
Weight(kg)7200
Input power(kW)55+22+2.2


AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
